20 | Wiring the radar system

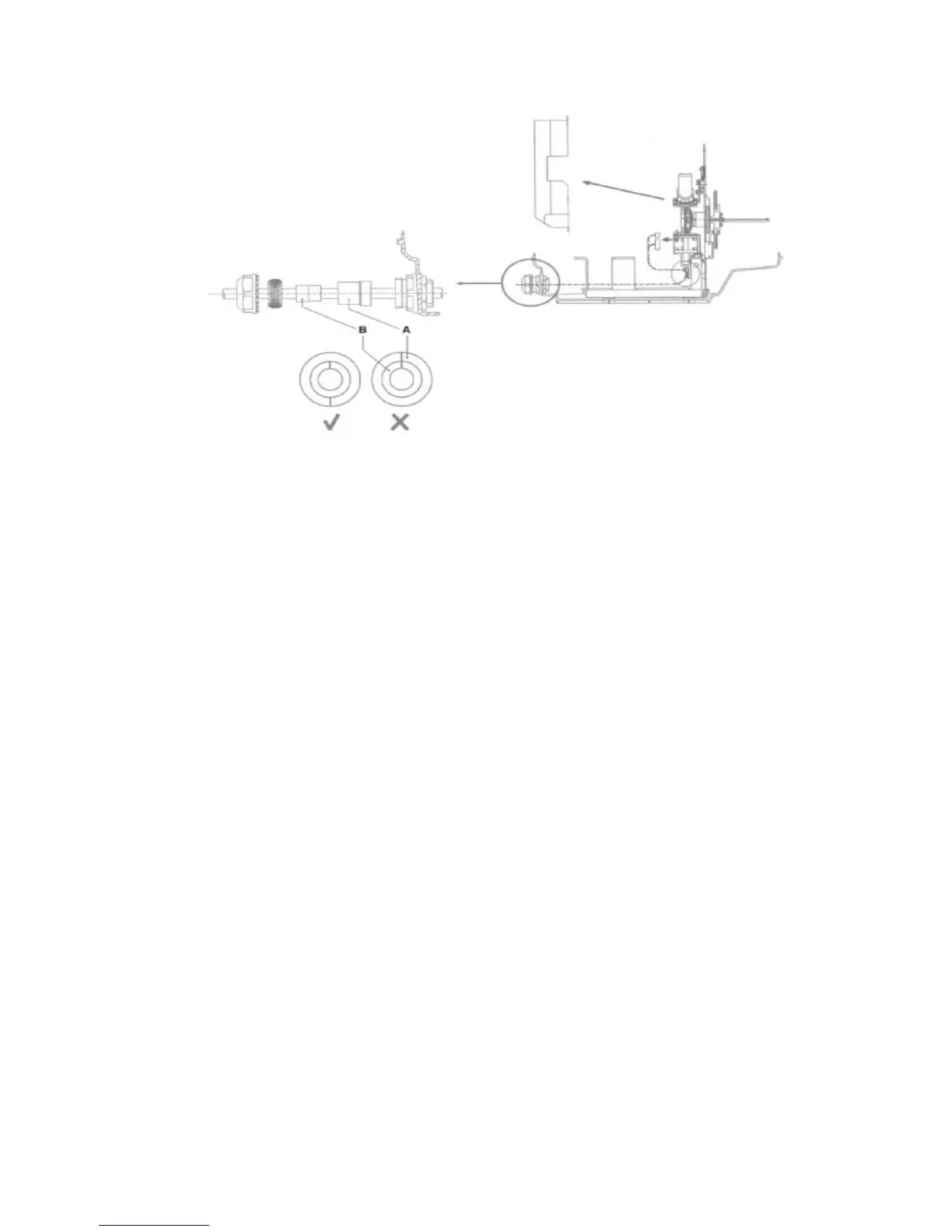

• Place the internal locking nut over the end of the interconnection cable, then attach
connectors B and C to the connectors (as shown in the figure).
The broken line shows the route for the interconnection cable.
• Attach connector D to one of the screws close by to provide grounding (as shown in the
figure).
