Navico Network Expansion Port 2 - Power Cable Pinout; Power Wiring Examples

NEP-2 Installation Manual | 9

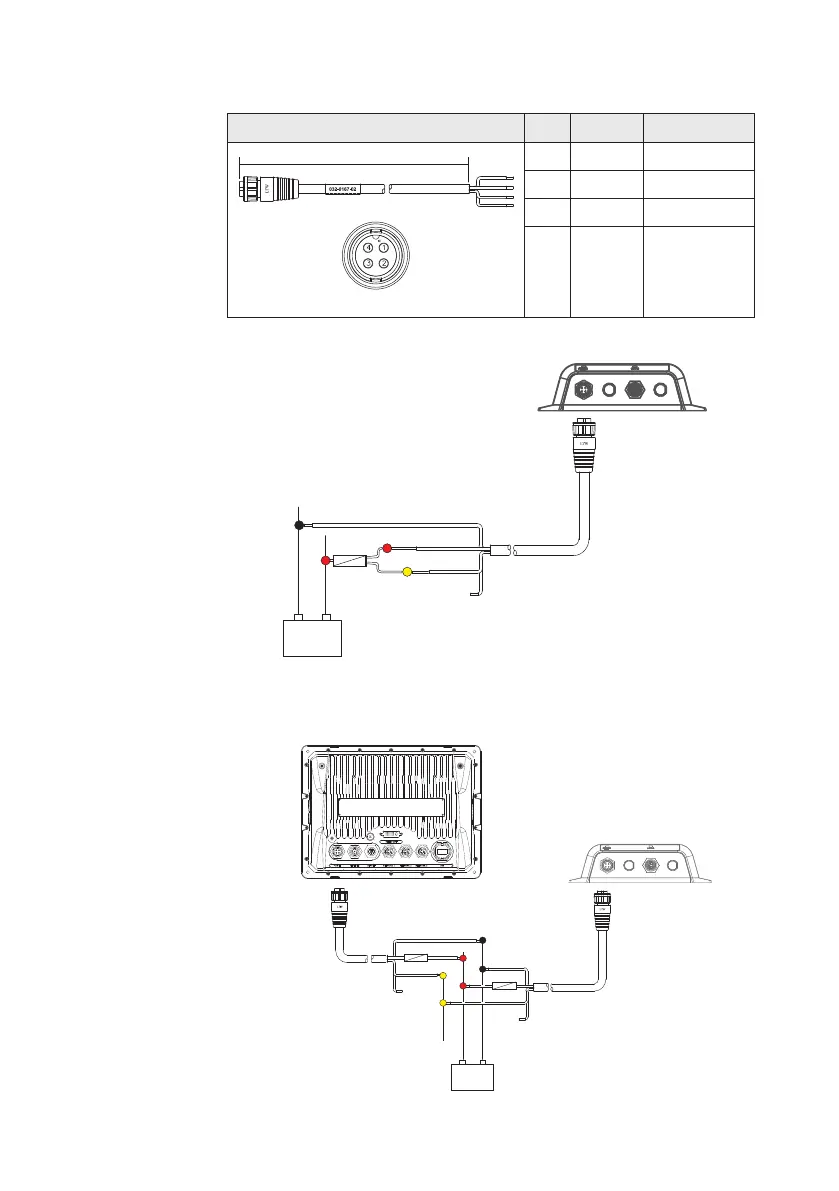

Power cable Pin Color Function
2 m (6.5 ft)
1 Black Battery (-)
2 Blue N/C
3 Yellow Power Ctrl
4 Red Battery (+)
12-24 V DC
Suggested configurations for power wiring:
Red
Fuse
Black
Yellow
Blue
(no connect)
12 - 24 V DC
+
_
12 - 24 V DC
Red
Black
NSE/HDS
NEP-2
Yellow
Red
Black
Yellow
Remote Power On Bus
+
_
