Navien CH-210 Installation Manual

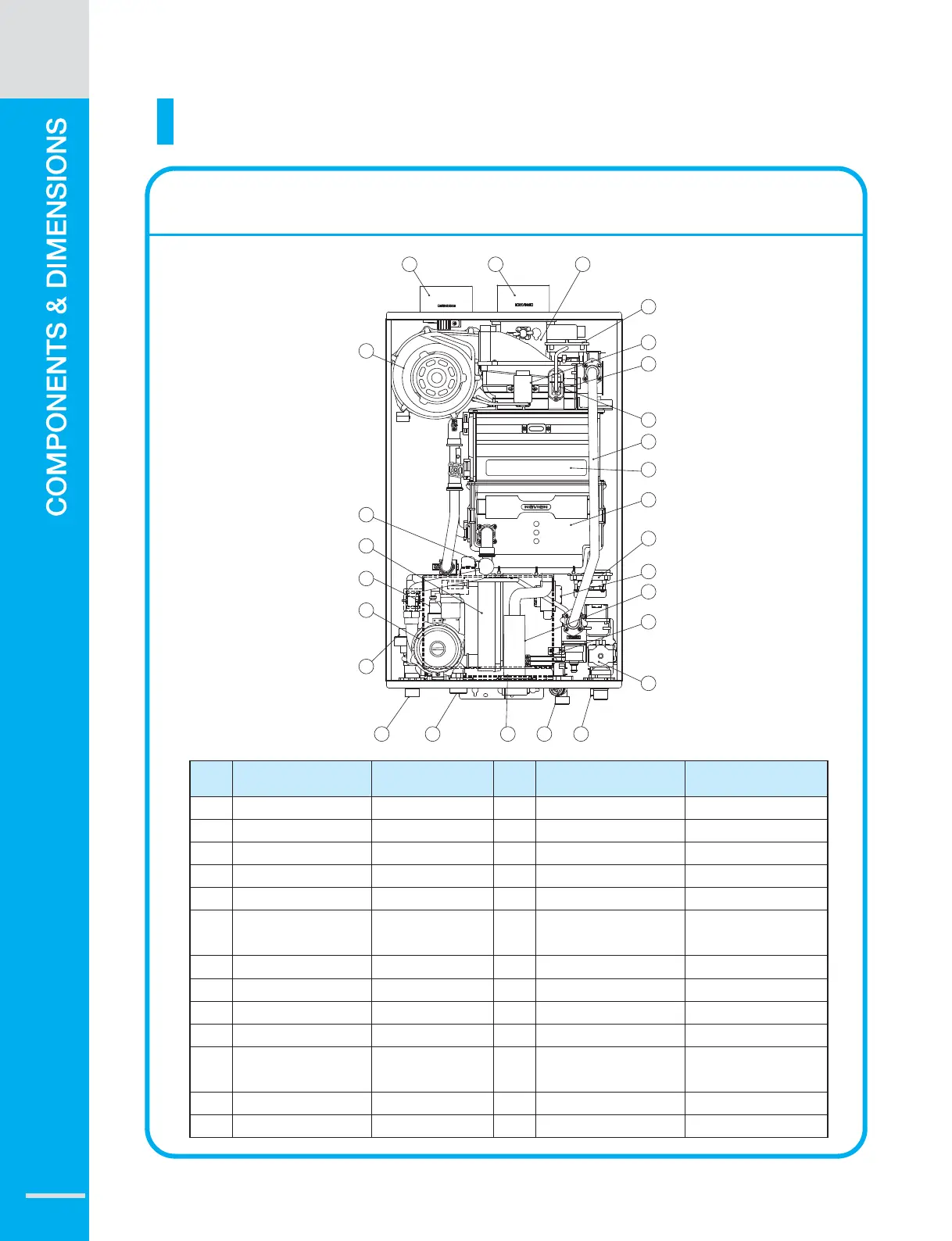

Key Components: CH
6
NAVIEN Combination Water Heater / Heating Boiler
X
Y
Z
^
[
]
_ ` XW XX XY
\
Y] Y\
Y[
YX
YY
X_
X`
YW
X^
XZ
X[
X]
YZ
X\
1
2
3
4
5
6
7
8
9
10
11
12
13
Intake Air Duct
Fan Motor
WPS
DHW Heat Exchanger
S/H Strainer
Motorized 3-Way Valve
Circulation Pump
S/H Supply Adaptor
S/H Return Adaptor
PCB Board
DHW Cold Water Inlet
Adapter
Auto Feeder Valve
Main Gas Valve
DHW Flow Sensor
Syphon
Transformer
Gas Pressure Sensor
Gas Pipe
Secondary Heat
Exchanger
Primary Heat Exchanger
APS Venturi
Burner
Ignition Transformer
Air Pressure Sensor
Exhaust Duct
Exhaust Pipe
AASS9EXFS002A
BH2501442C
BH1205011C
NASS9EXGPS01
BH2546021A
-
-
BH2501413A
PABNCW48KDN_002
BH1201045A
NASS9EX00009
BH2544007D
BH2505401B
BH2505400B
NAFA9GSFB002
BH2507535A
PAS40KHE_003
BH1301020C
AAVC9EX00009A
NAPU9GLPCT10
BH2507551A
BH2507551A
NACR1GS32301
BH2507560C
BH0904011A
BH0901018A
14
15
16
17
18
19
20
21
22
23
24
25
26
No Description Navien Part No. No Description Navien Part No.
