Navien NaviCirc - Page 59

59

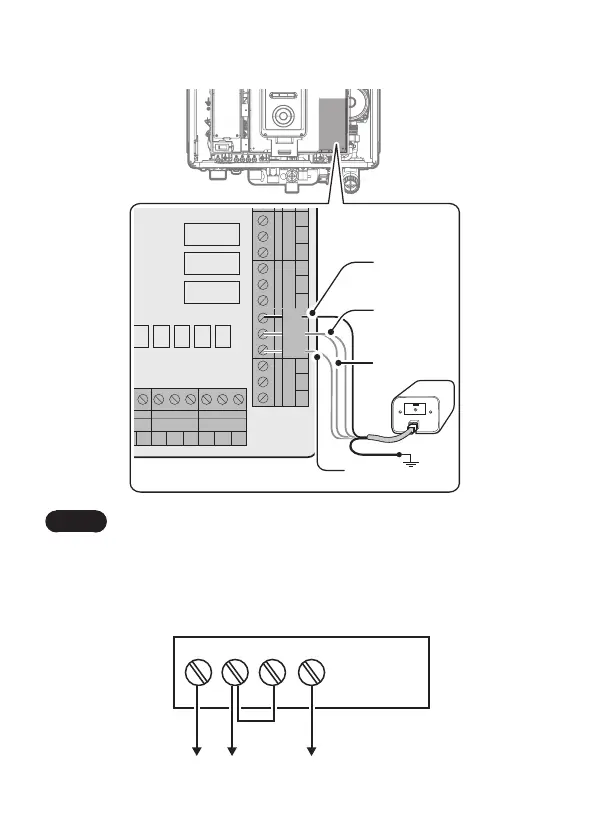

2.4.3.2 Wiring Diagram - External LWCO
T/S_ZONE3
W
C
T/S_ZONE2
R
W
C
T/S_ZONE1
R
W
C
AC24VN
AC24VL
lLWCO
R
W
C
T/S_Recir
COM NO NC
ZONE_V/V3
COM NO NC
ZONE_V/V2
COM NO NC
ZONE_V/V1
Neutral
Line
Line
LWCO
LWCO
Note
The boiler supplies 24 VAC at the LWCO power terminals
(CNC3).
For terminal type LWCO appliances, a typical wiring method is
shown below (same voltage for control and burner circuit):
LWCO
Terminals
Neutral
Jumper
Line LWCO
To Boiler LWCO Terminals
