2.5 Dimensions

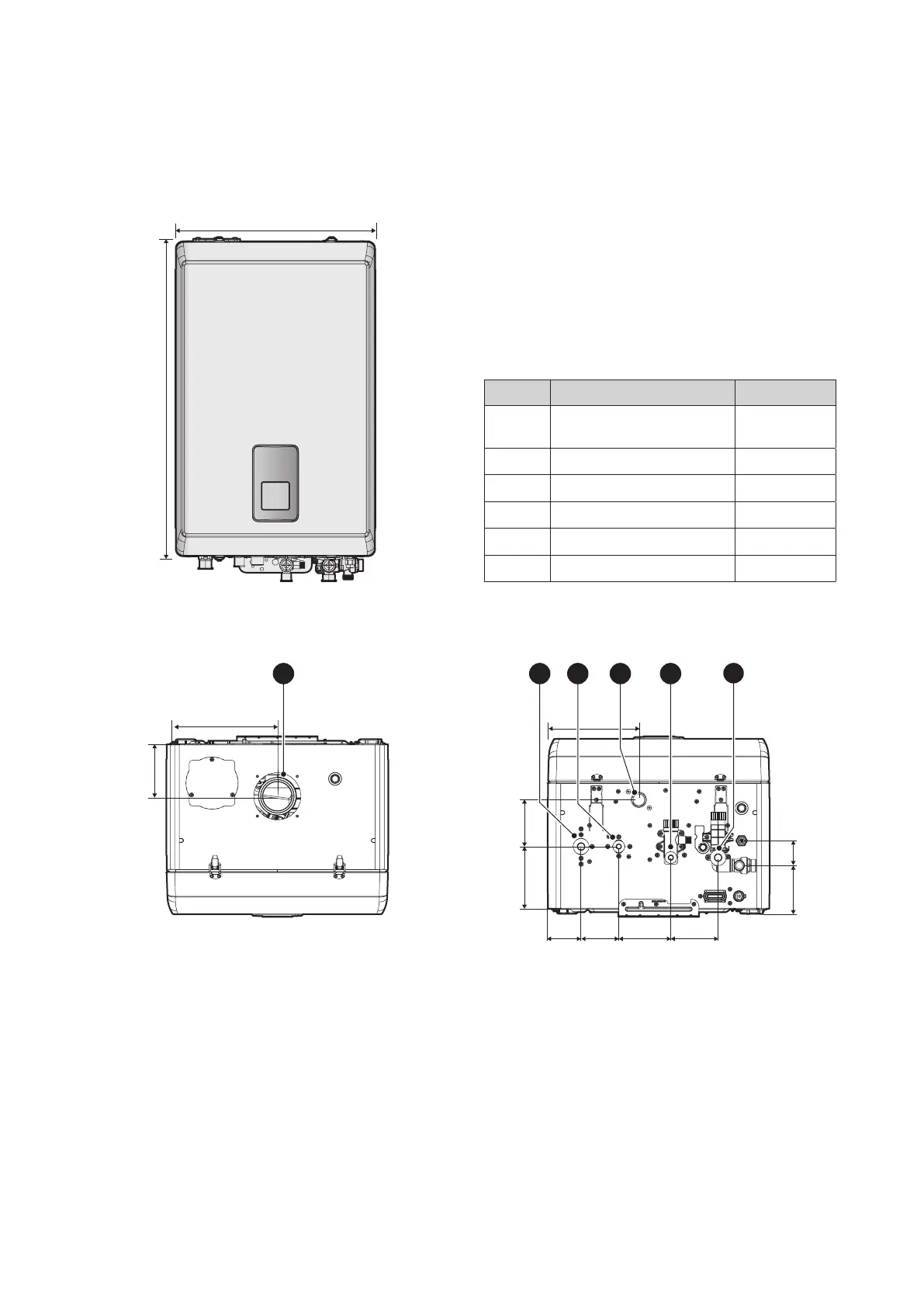

The following diagrams show the dimensions of the boiler and the table lists the supply connections.
Supply Connections
Description Diameter
A Flue exhaust/Air intake
Ø60/100,
Ø80/125
B Central heating supply 22 mm
C Hot water outlet (DHW) 15 mm
D Gas supply inlet 22 mm
E Cold water inlet (DHW) 15 mm
F Central heating return 22 mm
Overhead View
220mm
Bottom View
166mm
101mm 60mm
104mm63mm 78mm 70mm
E
B
C D
F
