INSTALLING THE FRONT PANEL
To install the front panel, insert the panel
into the housing and make sure the panel
is properly installed, otherwise,
abnormalities occurs on the display or
some keys will not function properly
1
2
3

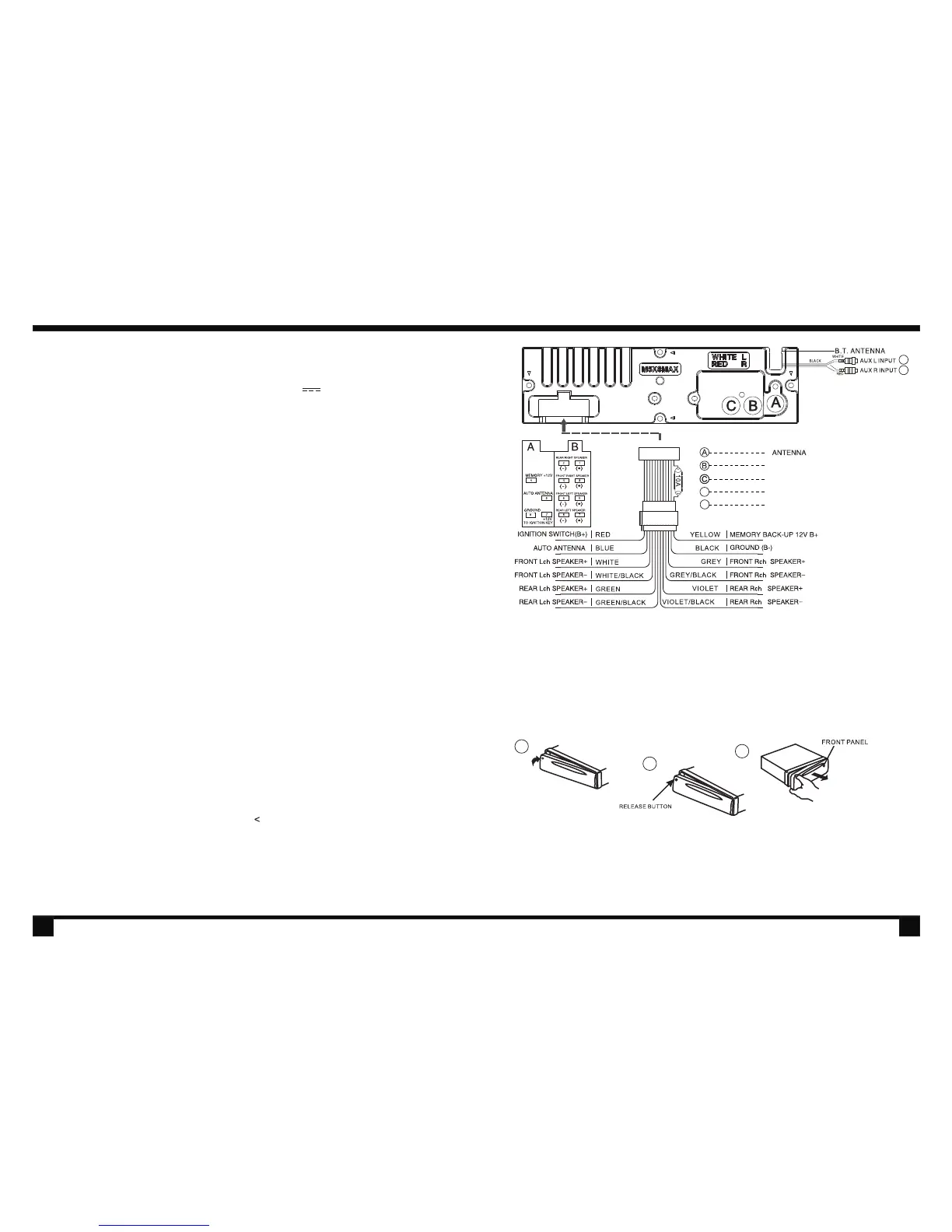

HOW TO INSTALL AND REMOVE THE FRONT PANEL
ADDITIONAL INFORMATIONSPECIFICATIONS
General
Power Supply Requirements: DC 14.4V“ ”, Negative Ground
Maximum Output Power:
Chassis Dimensions: 178 x 163x 50mm (W x D x H)
Tone Controls
Bass (at 100Hz): +10dB / -10dB
Treble (at 10K): +10dB / -10dB
Current Drain: 10A
CD Player
Signal to Noise Ratio: More than 60dB
Channel Separation: More than 60dB
Frequency Response: 20Hz - 20KHz
FM Radio
Frequency Coverage (MHz): 87.5 - 108MHz
IF : 10.7MHz
Sensitivity (S/N-30dB): 12dBu
Stereo Separation: >30dB
AM Radio
Frequency Coverage (KHz): 522 - 1620 KHz
IF :
Sensitivity (S/N-20dB): 42dBu
25W x 4(CH)
450KHz
Load Impedance:
4 ohms
Remarks:
Specifications subject to change without notice
D
E
REAR Rch AUX LINE IN
REAR Lch AUX LINE IN
D
E
19
04
REAR Lch LINE OUT
REAR Rch LINE OUT
