NCE NCECD100W - General Operations; Front Panel Layout; Remote Control Layout

AUX

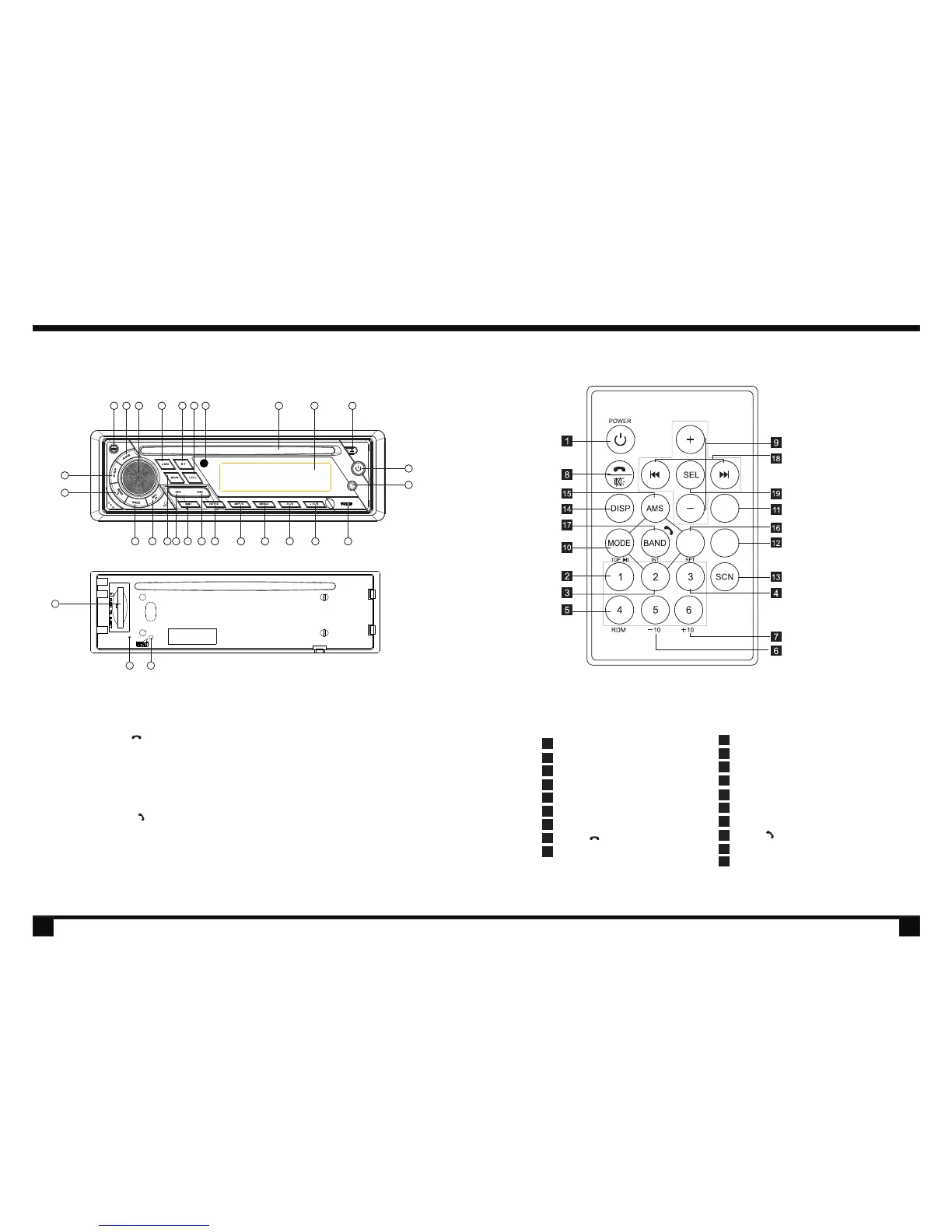

FRONT PANEL LAYOUT
1. Power Button
3. Volume/ Sel Button
12. Tune Seek&Track Buttonreverse
10. Band/ switch /ID3 select
11. Tune Seek&Track Button forward
6. Display Button
14. Play / Pause & Preset Button 1
2. Release Button
7. LCD Display
13. Automatically memory storing
4. Mute/ Button
5. Mode switch
9. Reset Button
8. Flashing LED 22. Loudness Button
15. Intro & Preset Button 2
16. Repeat & Preset Button 3
17. Random & Preset Button 4
18. Preset Button 5
20. ST/MO Button
19. Preset Button 6
26. USB Socket
21. LOC/DX Button
25. Remote Control Sensor
23. Eject Button
24. CD Slot
27. SD/MMC Slot
28. AUX IN JACK
29. SCN Button
22
191817
16
1514
13
29
10
24 23
21
2 3
7
2520
11
12
6
5
4
1
26
28
27
8 9
GENERAL OPERATIONS
05
18
REMOTE CONTROL LAYOUT
1
Power Button
Pause/play/ uttonPreset B 1
Intro/Preset Button2
Repeat Playing/Preset Button3
Random/Preset Button4
Preset Button5
Preset Button6
Mute/ Button
Volume Control
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Mode Switch
ST/MO Button
Loudness Button
Scan Button
Display Button
APS/AMS Button
LOC/DX Button
Band/ Switch
Tuning/Selecting Tracks/ F.F / F.R
Select Button
19
ST
LOUDLOC
