Installation with monitor mount
The L130 and L230 products include a monitor mount, mounting collar, monitor mount
screws (silver color) and mounting collar screws (black color) for mounting it to the back
of a monitor. To mount the access device, first secure the monitor mount to the back of
the monitor, as in the following pictures.

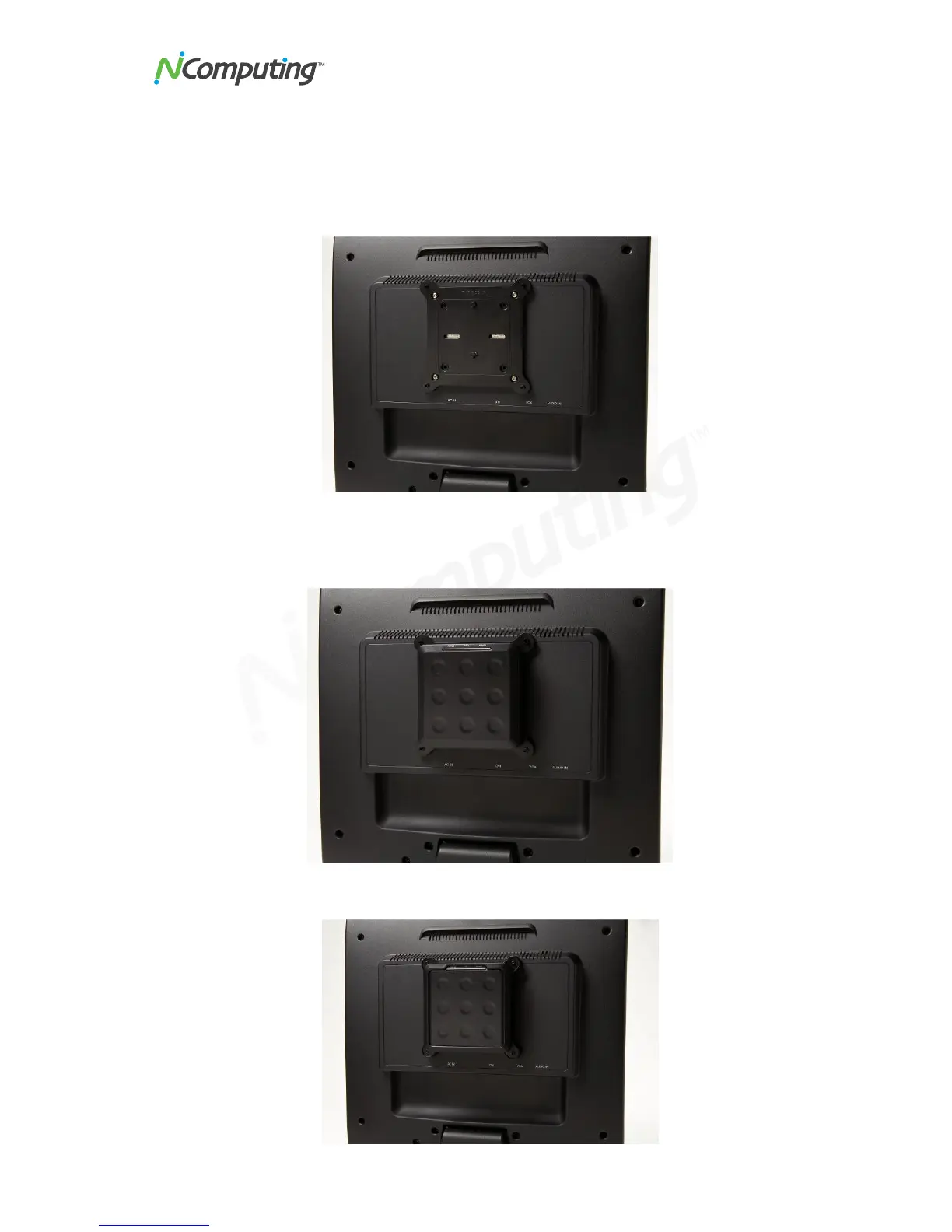

This picture (above) shows the monitor mount attached to the back of the monitor with
the four silver screws. Note that the black attachment clips are oriented vertically. Also,
note there are holes in the monitor mount that support a 100 mm mount and a 75 mm
mount.
This picture shows the access device attached to the monitor mount. This is done by
sliding the access device on the attachment clips and pushing it down to secure it.
