NDS SUN CONTROL 2 User Manual

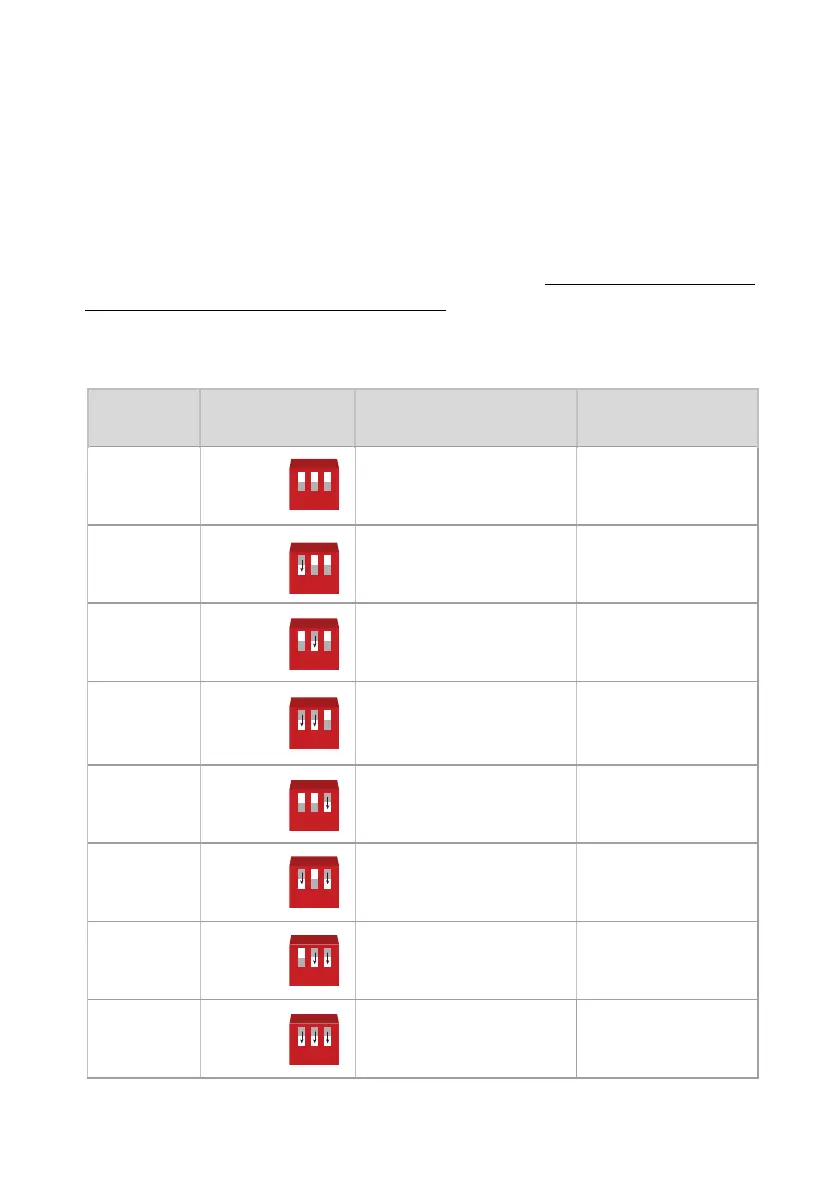

8. CHARGING CURVE
SELECTION
The Dip Switches, located next to the power
connections, allow you to select the proper charging
curve for the installed services battery, use the table to
set the correct curve for your battery. The Dip Switches
affect the B1 charging curve (leisure battery), not B2
(starter battery). The B2 charging curve is preset to
curve N°1 (GEL - Desulphation OFF).
10
CURVE
NUMBER
DIP-SWITCH
POSITION
CURVE TYPE
CHARGING
PARAMETERS
1
1 = OFF
2 = OFF
3 = OFF
GEL
Desulphation OFF
Vmax = 14,2V
Vmaint = 13,5V
2
1 = ON
2 = OFF
3 = OFF
Acido Libero
Desulphation OFF
Vmax = 14,4V
Vmaint = 13,8V
3
1 = OFF
2 = ON
3 = OFF
AGM
Desulphation OFF
Vmax = 14,7V
Vmaint = 13,6V
4
1 = ON
2 = ON
3 = OFF
AGM
Desulphation ON
Vmax= 14,7V
Vmaint = 13,6V
Vdes = 15,8V
5
1 = OFF
2 = OFF
3 = ON
LiFePO
4
Litio
Maintenance ON
Vmax= 14,5V
Vmaint = 13,8V
6
1 = ON
2 = OFF
3 = ON
LiFePO
4
Litio
Maintenance OFF
Vmax= 14,5V
7
1 = OFF
2 = ON
3 = ON
LiFePO
4
Litio
Maintenance ON
Vmax= 14,2V
Vmaint = 13,6V
8
1 = ON
2 = ON
3 = ON
LiFePO
4
Litio
Maintenance OFF
Vmax= 14,2V
off off off
1 2 3
off off on
1 2 3
off
1 2 3
ON off
off
1 2 3
ON on
1 2 3
offON off
1 2 3
ONoffon
1 2 3
ON on off
1 2 3
ON on on
