Functionality
DOOR sends a radio alarm as soon as the door is opened. A new alarm
is not sent until the door has been closed and is opened a second time.
When an alarm is transmitted, the LED on DOOR lights up with a
steady red light during up to four seconds. If DOOR receives an
acknowledgement from an alarm receiver, the LED on DOOR changes
color to green and stays lit for another two seconds.
Note: If the in passage delay is enabled, the LED rst blinks during ve seconds
before an alarm is transmitted.
Mounting Instructions

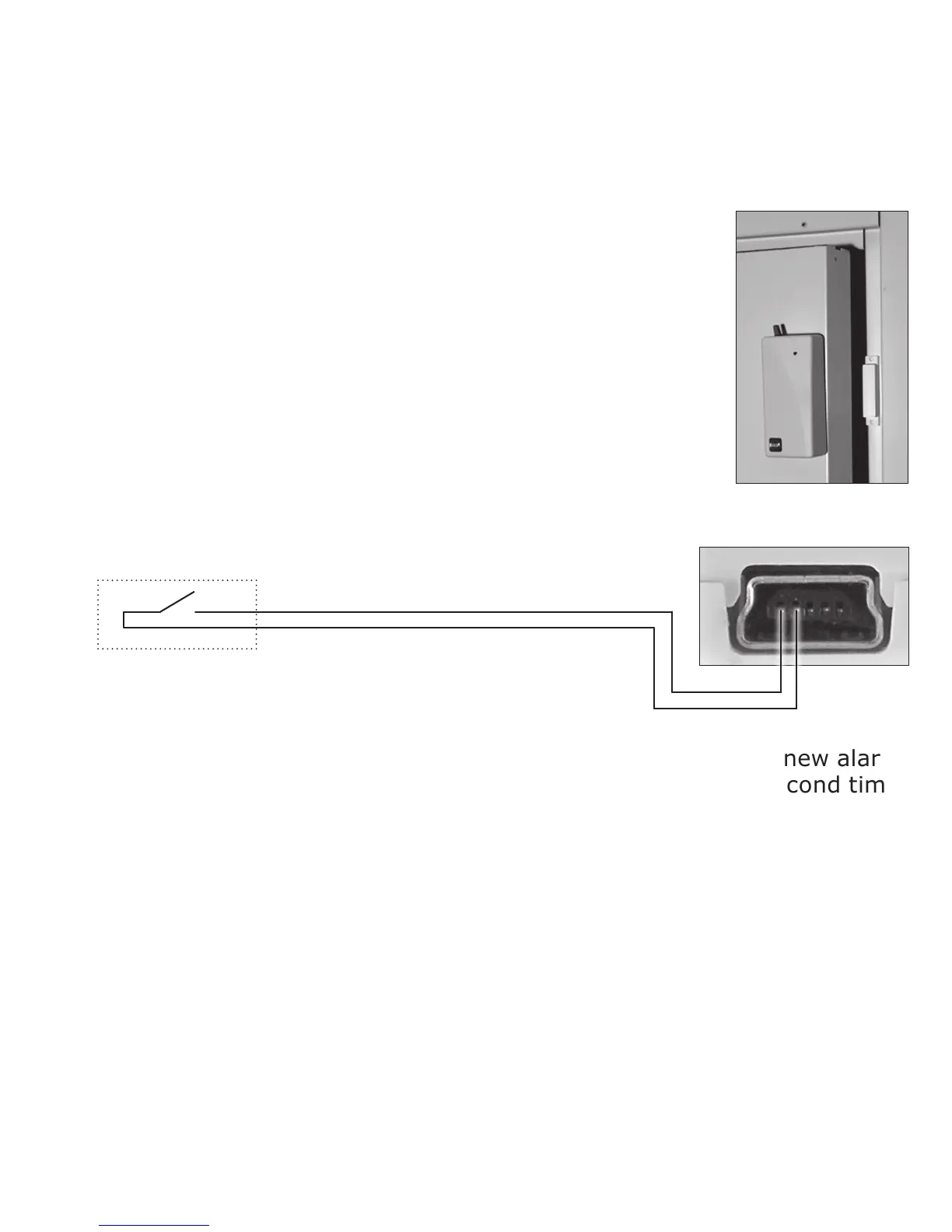

The door alarm can be mounted on a door and the
magnet on the door frame, or vice versa. The magnet
can be placed on either side of the door alarm.
The distance between door alarm and magnet must
not be more than one centimeter when the door
is closed. If the door is made from metal, an even
shorter distance between door alarm and magnet may
be necessary.
External Sensor - Wiring
DOOR
alarm sensor
pin 5: ground
pin 4: sensor input
