NEC AccuSync AS191WM User Manual

English
English-5
Macintosh Cable Adapter
(not included)
Contents

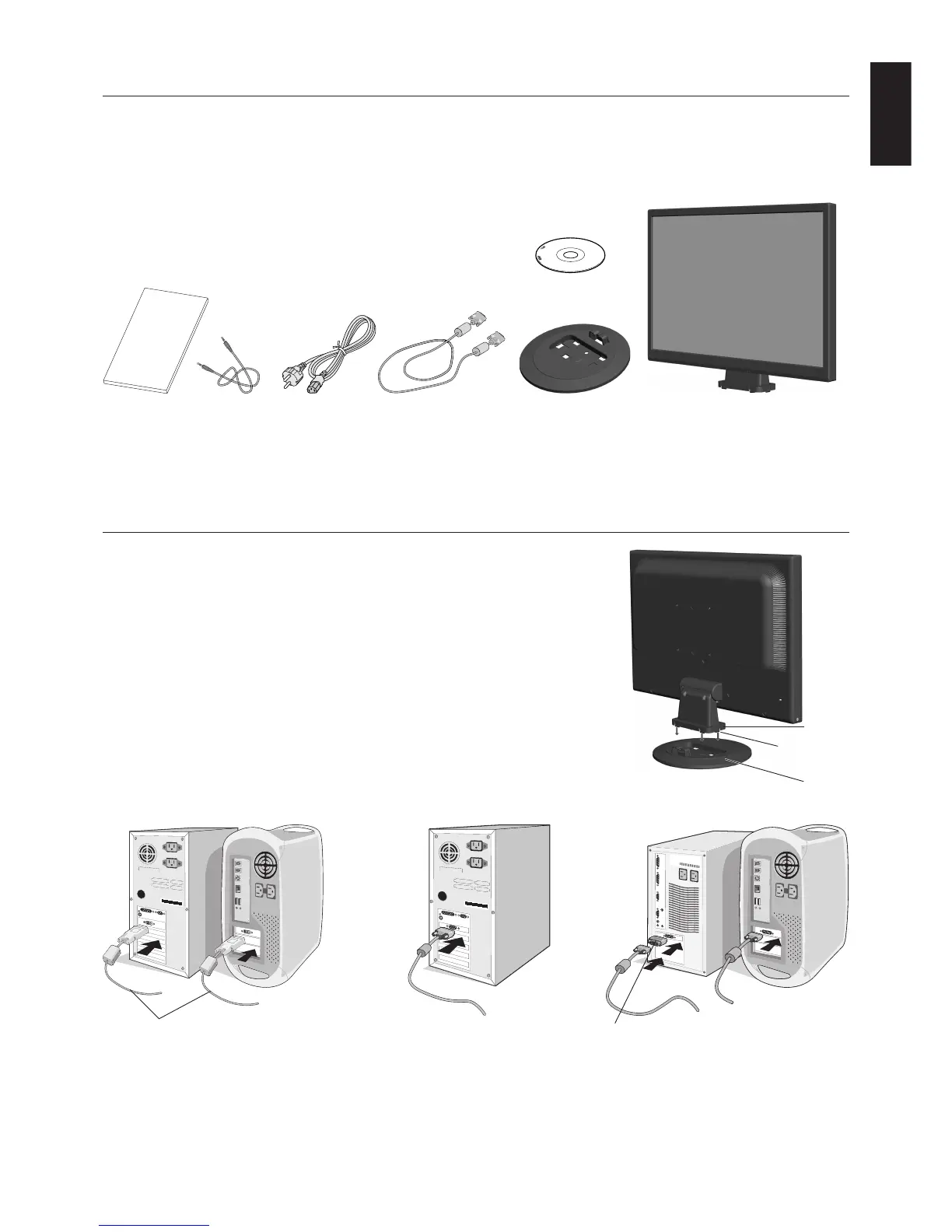

Your new NEC AccuSync LCD monitor box* should contain the following:
• AccuSync LCD monitor with tilt base
• Audio Cable
• Power Cord
•Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)
• Setup Manual
• CD-ROM (only EU)
• Base Stand
Setup Manual
Audio Cable Power Cord*
1
Video Signal Cable Base Stand AccuSync LCD monitor
(base stand not connected)
CD-ROM
* Remember to save your original box and packing material to transport or ship the monitor.
*1 Type of power cord included will depend on the where the LCD monitor is to be shipped.
Setup
Manual
Quick Start
To attach the Base to the LCD Stand:
1. Attach the Base to the Stand. The locking tabs on the Stand should fit into the hole
on the Base (Figure S.1).
To attach the AccuSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable (not
included) to the connector of the display card in your system (Figure A.1).
Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to
the connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter (not included) to the computer
and then attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter
(Figure A.3). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
Figure A.1
Figure A.2
Figure S.1
Base
Locking Tabs
Stand
Figure A.3
DVI Signal Cable (not included)

NEC AccuSync AS191WM Specifications

General

Pixel pitch	0.28 x 0.28 mm
Aspect ratio	16:10
Display diagonal	19 \
Separate H/V sync	Yes
Display resolution	1440 x 900 pixels
Video input impedance	75 Ω
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 81.1 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
DVI-I ports quantity	0
Certification	Energy Star 5.0 TCO 5.0 EPEAT Silver
Product color	Black
Compliance industry standards	RoHS
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (typical)	21 W
Power consumption (PowerSave)	0.4 W
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	209.8 mm
Height (with stand)	347.1 mm
Weight (with stand)	4400 g
Depth (without stand)	64.6 mm
Width (without stand)	439.4 mm
Height (without stand)	299.8 mm
Weight (without stand)	4100 g
