English-9
English
Connect a Flexible Arm
This LCD monitor is designed for use with a flexible arm.
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.
2. Use the 4 screws removed from the stand or the specifi ed screws to attach the arm to the monitor (Figure F.1).
Caution: Use ONLY the screws (4 pcs) that were removed from the stand or the specifi ed screws (Figure F.1) to avoid
damage to the monitor or stand.
To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability
under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g.
TUEV GS mark).
NOTE: Tighten all screws.
(recommended Fasten Force: 98 - 137N•cm)
Tighten all screws
12mm
M4
100 mm
100 mm
Thickness of Bracket
(Arm) 2.0 ~ 3.2 mm
Spring washer
Flat washer

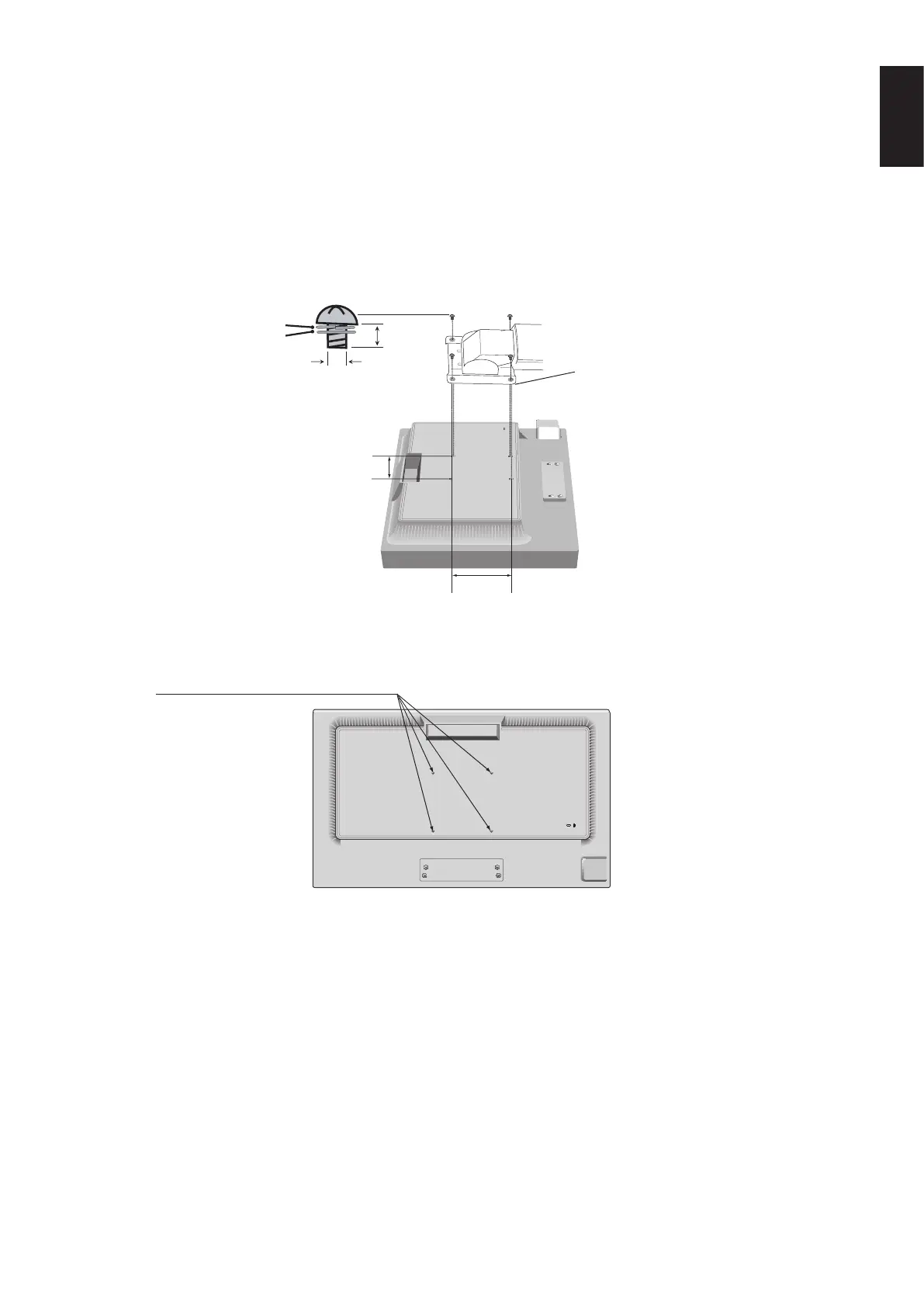

Figure F.1
Specifications
4-SCREWS (M4)
(MAX depth: 10 mm)
If use other screw,
check depth of hole.
Weight of LCD assembly: 2.9 kg (MAX)
