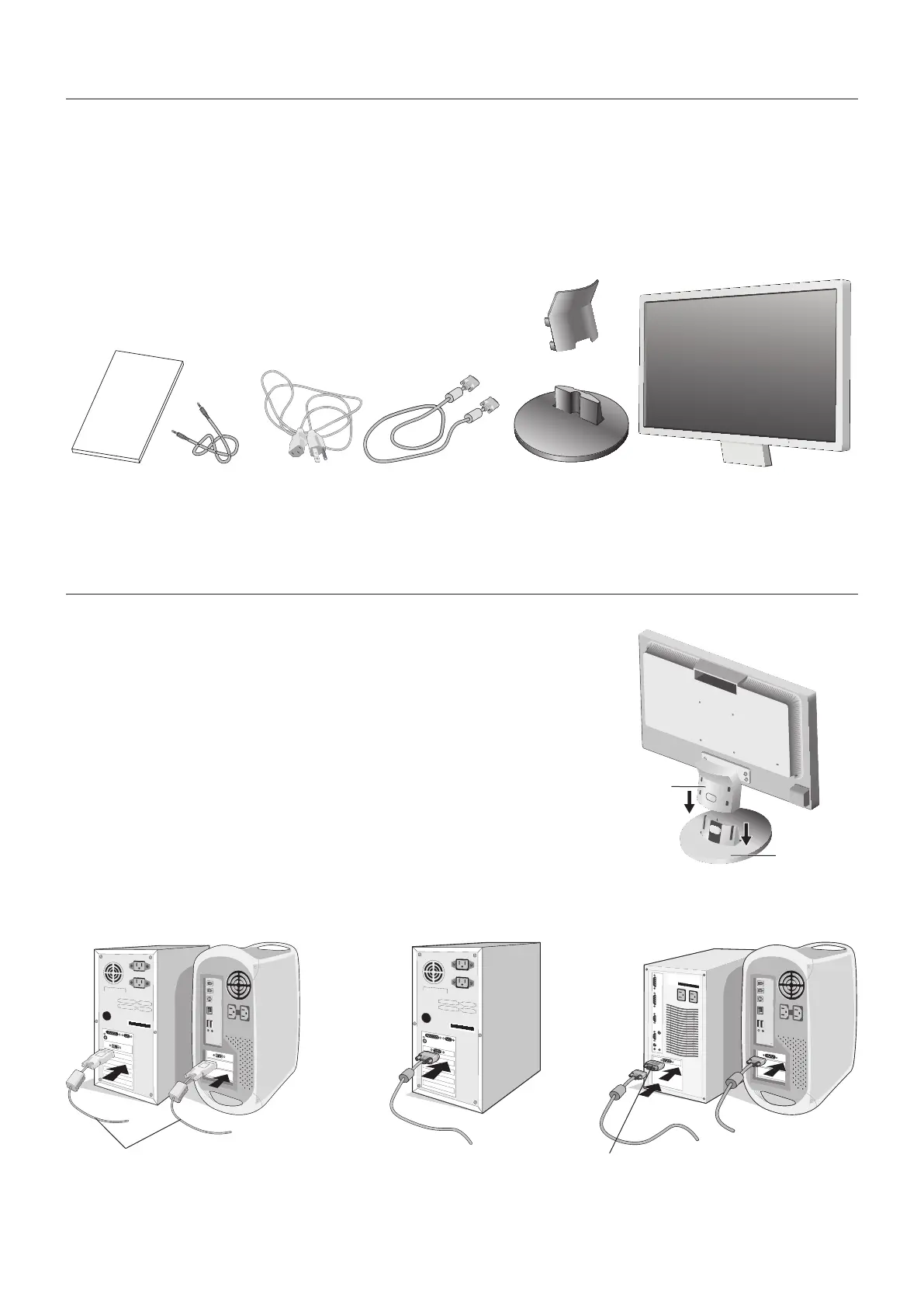

Your new NEC AccuSync LCD monitor box* should contain the following:
• AccuSync LCD monitor with tilt base
• Audio Cable
• Power Cord
• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)
• Setup Manual
• Base Stand
• Cable Holder
Setup Manual Audio Cable Power Cord*
1
Video Signal Cable
Base Stand AccuSync LCD monitor
(Base Stand not connected)
Setup
Manual
Cable Holder
* Remember to save your original box and packing material to transport or ship the monitor.
*1 Type of power cord included will depend on the where the LCD monitor is to be shipped.
Quick Start
To attach the Base Stand to the LCD Stand:
1. Attach the Base Stand to the Stand. The locking tabs on the Base Stand should fit
into the hole on the Stand (Figure S.1).
To attach the AccuSync LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 4) before installation.
The accessories included will depend on the where the LCD monitor is to
be shipped.
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to
the connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter to the computer and then
attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure
A.3). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
Macintosh Cable Adapter
Figure A.1
Figure A.2 Figure A.3
DVI Signal Cable
Figure S.1
Base Stand
Stand
