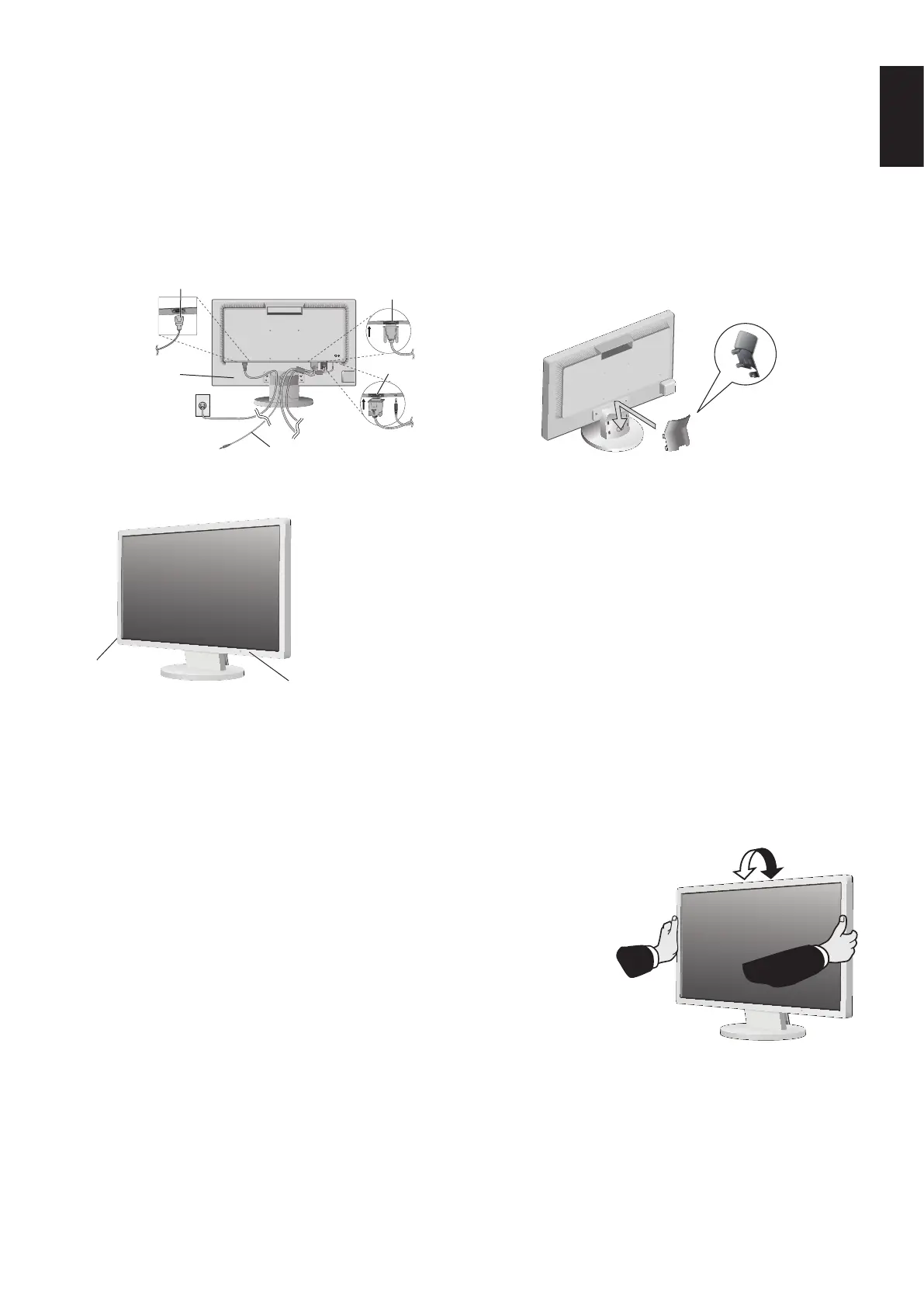

Figure TS.1
3. Connect the 15-pin mini D-SUB of the video signal cable and Audio Cable to the appropriate connector on the back of the
monitor (Figure B.1). Connect the Headphone to the appropriate connector at the left of the monitor (Figure D.1).
4. Connect one end of the power cord to the monitor and the other end to the power outlet. Place the Video Signal Cable and
power cord to the Cable Holder (Figure C.1).
NOTE: Adjust the position of the cable within the Cable Holder to avoid damage to the cable or monitor.
NOTE: Please refer to Caution section of this manual for proper selection of power cord.
5. Turn on the monitor with the bottom power button and the computer (Figure D.1).
Figure B.1
Headphone
Rating label on the
back of the display.
Figure D.1
Power Button
Figure C.1
Power cable
The model name is on the label.
Input (Audio)
Input (VGA)
Input (DVI)
NOTE: Adjustment of the volume control as well as the equalizer to other
settings than the center position may increase the ear-/headphones
output voltage and therefore the sound pressure level.
6. No Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings.
For further adjustments, use the following OSD controls:
• Auto Adjust Contrast (Analog input only)
• Auto Adjust (Analog input only)
Refer to the Controls section of this User’s Manual for a full description of these OSD controls.
NOTE: If you have any problem, please refer to the Troubleshooting section of this User’s Manual.
Tilt
Grasp both sides of the monitor screen with your hands and adjust the tilt as desired
(Figure TS.1).
