SL2100 Digital Terminals – Type B (2w)
Quick Install Guide – SL2100 Terminals Type B rev 1.0 4

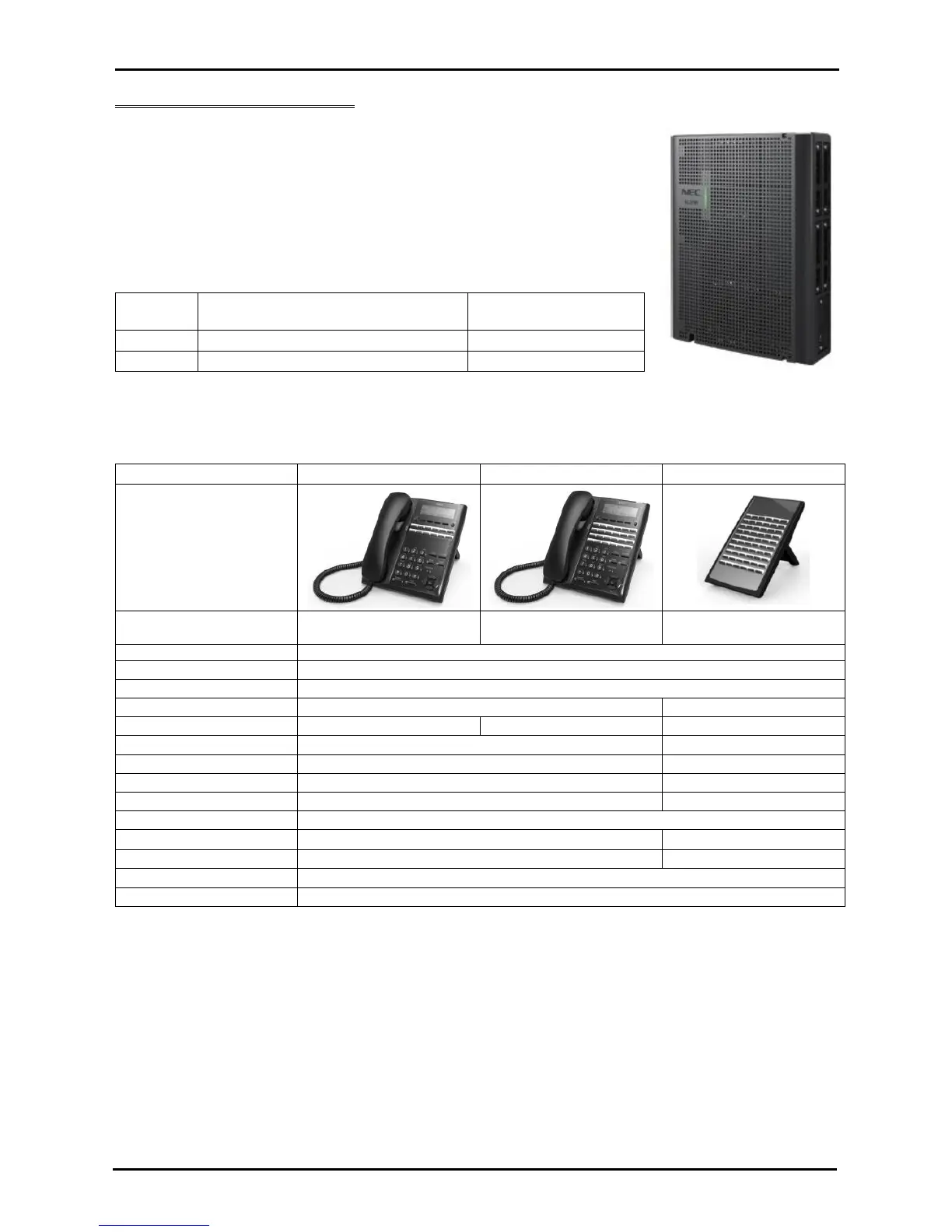

Digital Type B Terminals
The SL2100 system consists of a chassis unit that supports the installation of
either Type A or Type B digital terminals, as only one terminal type can be
installed there are separate Quick Install Guides for each.
This guide details the installation of Type B terminals.
Refer to the following Quick Install Guide for other terminals:
 Quick Install Guide – Digital Terminals Type A
 Quick Install Guide – IP Terminal 8IPLD
 Quick Install Guide – IP Terminals DT820
Digital
Terminal
Connect to interface card
Terminal wiring
Type A
IP7WW-308U-A1 or IP7WW-008U-C1
4 wire connection
Type B
IP7WW-082U-B1
2 wire connection
This guide also includes details of installing the external Music on Hold, Background Music, Paging and Relay
connections as these are provided by the interface card.
SL2100 Type B Digital Terminals
12 Button
24 Button
60 Button DSS
Part code & description
BE116515
IP7WW-12TXH-B1 TEL
BE116516
IP7WW-24TXH-B1 TEL
BE116519
IP7WW-60D-B1 CONSOLE
Connected to
Digital Extension Port
Power feeding
From digital extension port
Colour
Black
Display
24 digits x 3 lines with backlight
None
Programmable keys
12 (red/green)
24 (red/green)
60 (red/green)
Soft keys
4
None
Menu curser keys
Yes
No
Incoming call lamp
Yes (red/green)
No
Handsfree
Yes (full duplex)
No
Backlit dial pad
No
Headset Port
Yes (RJ11 connector)
No
EHS support
Yes (using WHA BE113158)
No
Angle Adjustment
Yes (2 steps)
Wall Mounting
Yes (built in)
