Quick Install Guide – SL2100 Multiline IP Terminals rev 1.1
NEC SL2100 Communication System 13

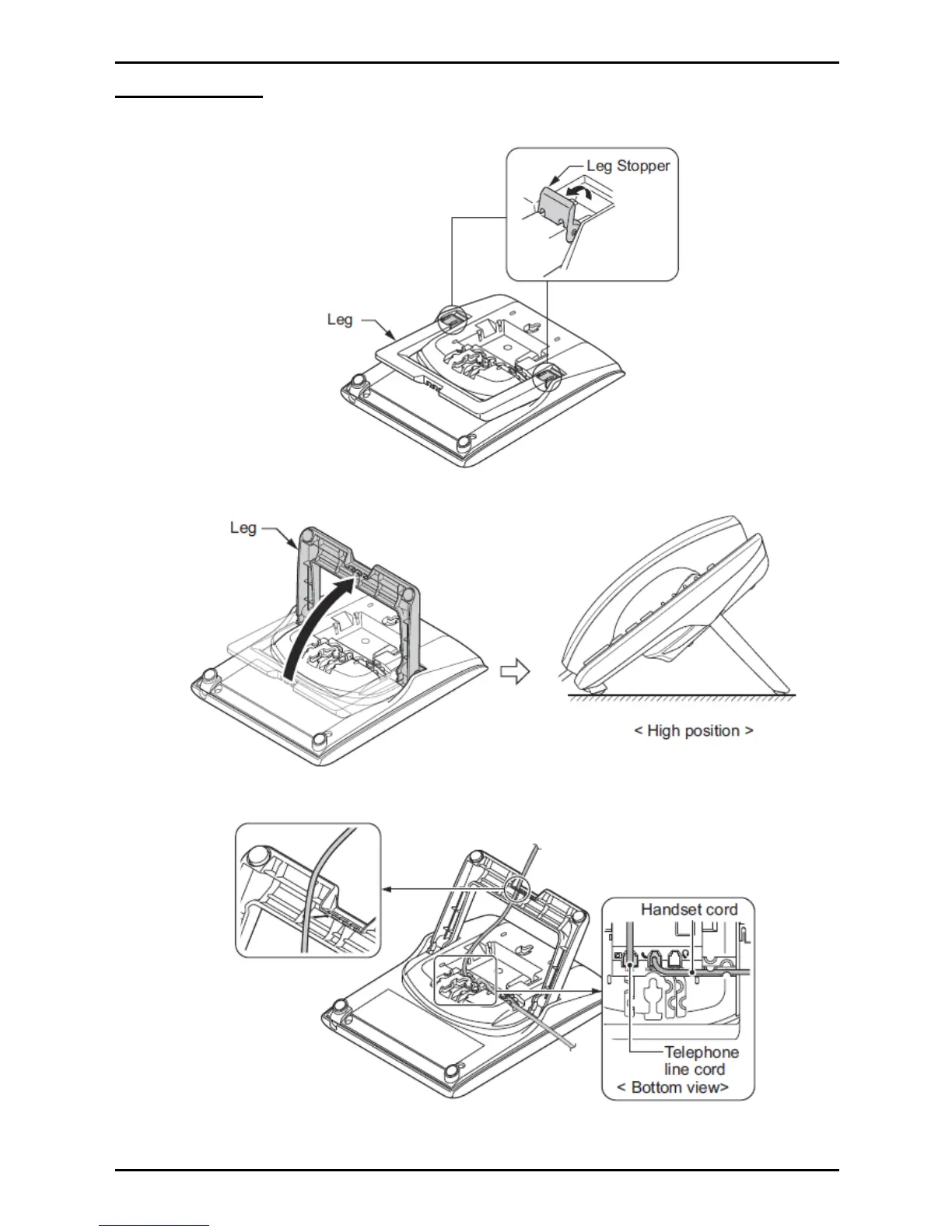

High Position Setting
1. Turn telephone over (button side down).
2. Pull up the Leg Stoppers.
3. Adjust the legs to High Position height.
4. Lead the Line and Handset cords through the applicable grooves.
5. Turn telephone over (button side up).
To Next Page
