Cabinet Dimensions (continued)

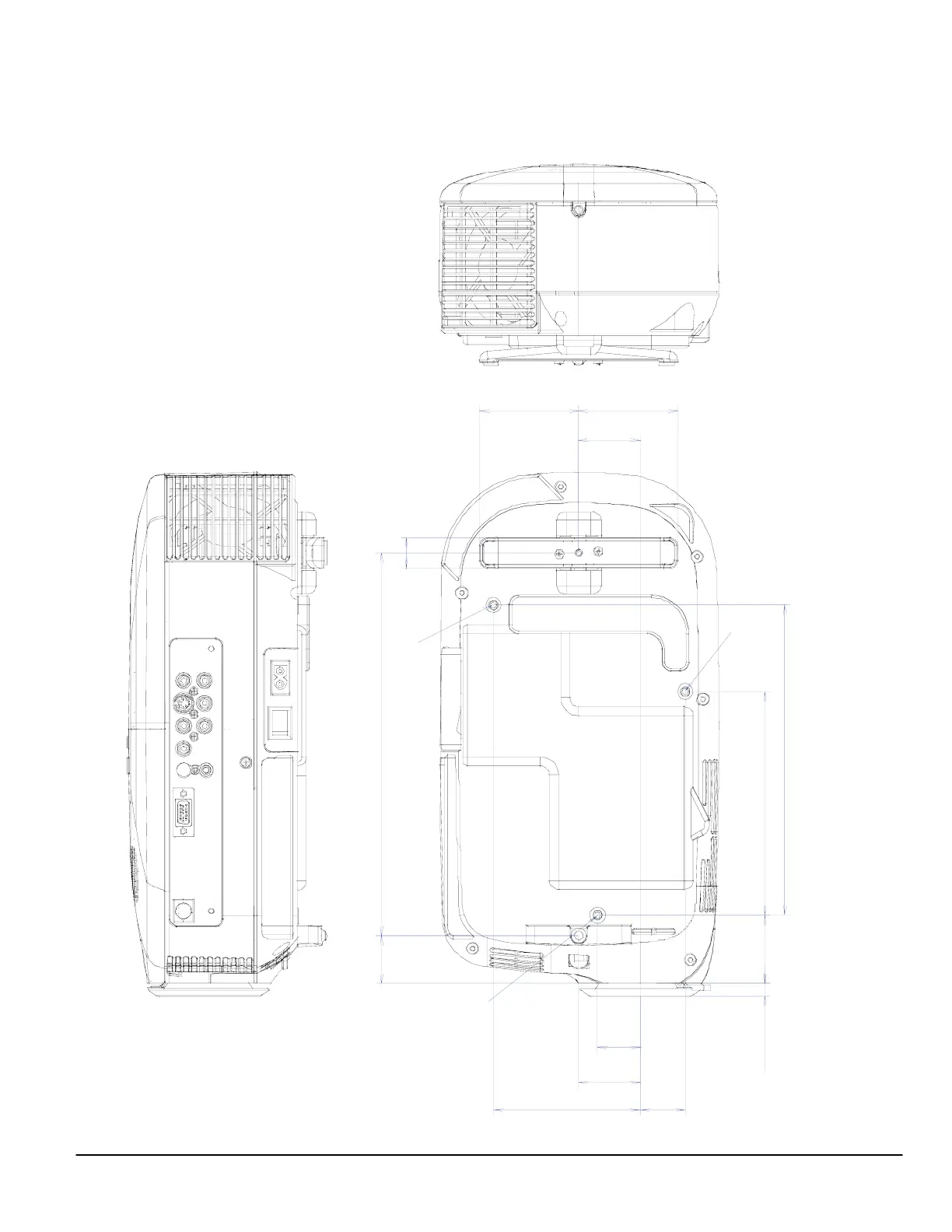

The following drawings show the cabinet dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.
M4x8 Max for Mount
M4x8 Max for Mount
M4x8 Max for Mount
5.81
(boss)
8.05 (boss) 9.94 (foot)
1.24
(foot)
1.77
0.33
0.79
1.61
2.602.60
1.12
(boss)
1.61
(foot)
1.18
(boss)
3.86
(boss)
(lens)
