You can connect your projector to a DVD player with component out-
puts or Video output. To do so, simply:
1. Turn off the power to your projector and DVD player.
2. If your DVD player has the component video (Y/Cb/Cr) output, use a
commercially available component video cable (RCA3) and the
optional 15-pin-to-RCA (female)3 cable to connect your DVD player
to the RGB INPUT connector on the projector.
For a DVD player without component video (Y/Cb/Cr) outputs, use
common RCA cables (not provided) to connect a composite VIDEO
output of the DVD player to the Video Input of the projector.
3. Turn on the projector and DVD player.
NOTE: Refer to your DVD player’s owner’s manual for more information about
your DVD player’s video output requirements,

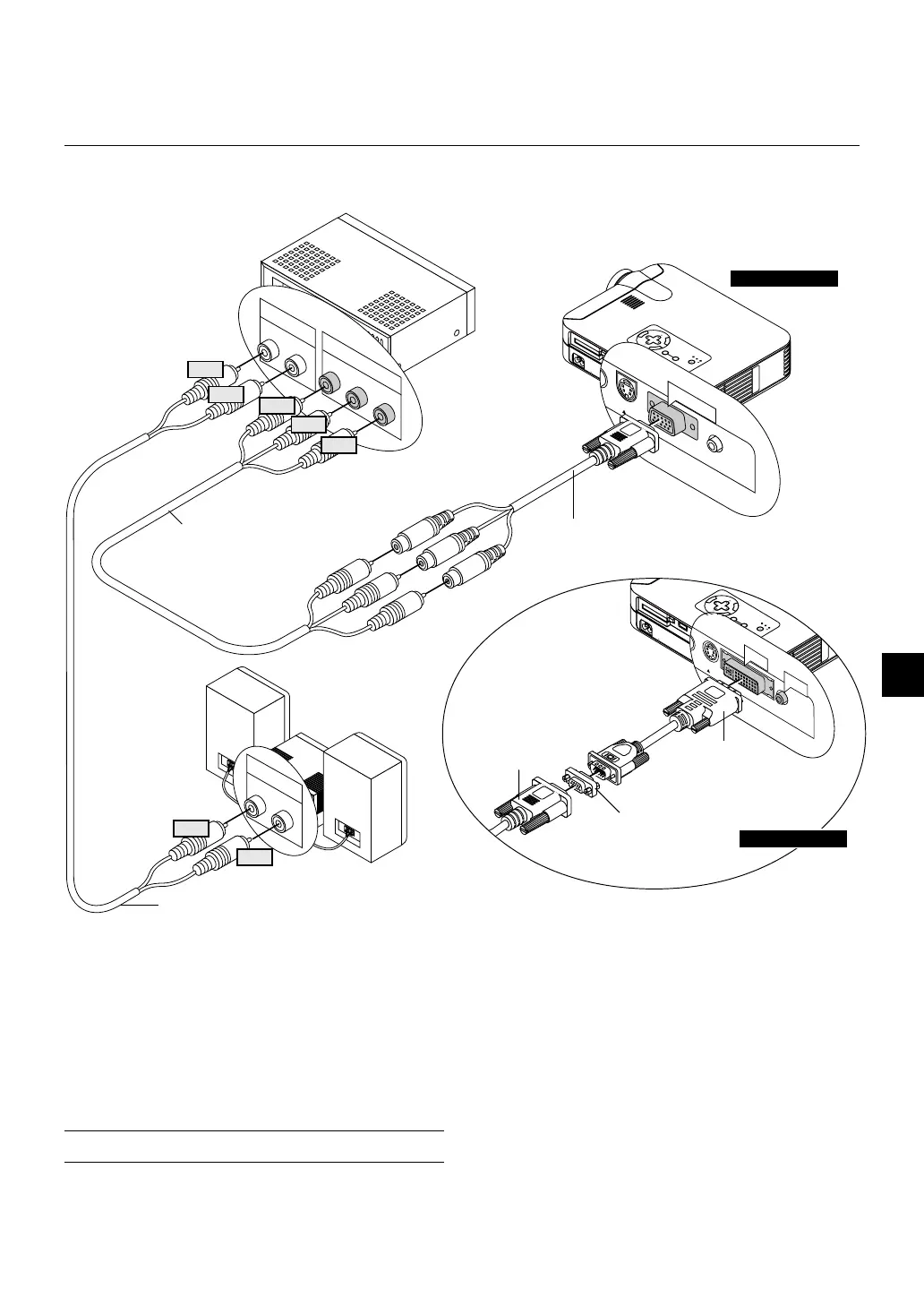

Optional 15-pin-to-RCA (female)3
cable (ADP-CV1)
Audio cable
(not supplied)
DVD player
White
Red
Y
Cb
Cr
White
Red
Audio Equipment
Component video cable
RCA3 (not supplied)
M
E
N
U
E
N
T
E
R
C
A
N
C
E
L
S
E
L
E
C
T
P
O
W
E
R
S
T
A
T
U
S
O
N
/
S
T
A
N
D
B
Y
S
O
U
R
C
E
A
U
T
O
A
D
J
U
S
T
P
C
C
A
R
D
A
C
C
E
S
S
A
C
I
N
C
C
A
R
D
P
C
C
O
N
T
R
O
L
V
I
D
E
O
R
G
B
U
S
B
S
-
V
I
D
E
O
A
U
D
I
O
E
O
D
V
I-D
S
-V
ID
E
O
A
U
D
IO
DVI-D
AUDIO
DVI-A – VGA
signal cable
(supplied)
LT158
For LT158:
Attach the supplied DVI-A–VGA cable to the DVI connector on your
projector.
To connect a DVD player (component), a commercially available gen-
der changer (Mini D-Sub 15p F-15p F) is required as well as ADP-
CV1.
Optional 15-pin-to-
RCA (female)3
cable
(ADP-CV1)
Gender changer
mini D-Sub 15p F
– 15p F
(not supplied)
