NEC M310 - M110 Component Selection Part 11 SFP Module Combinations FC;10 Gb iSCSI Optical

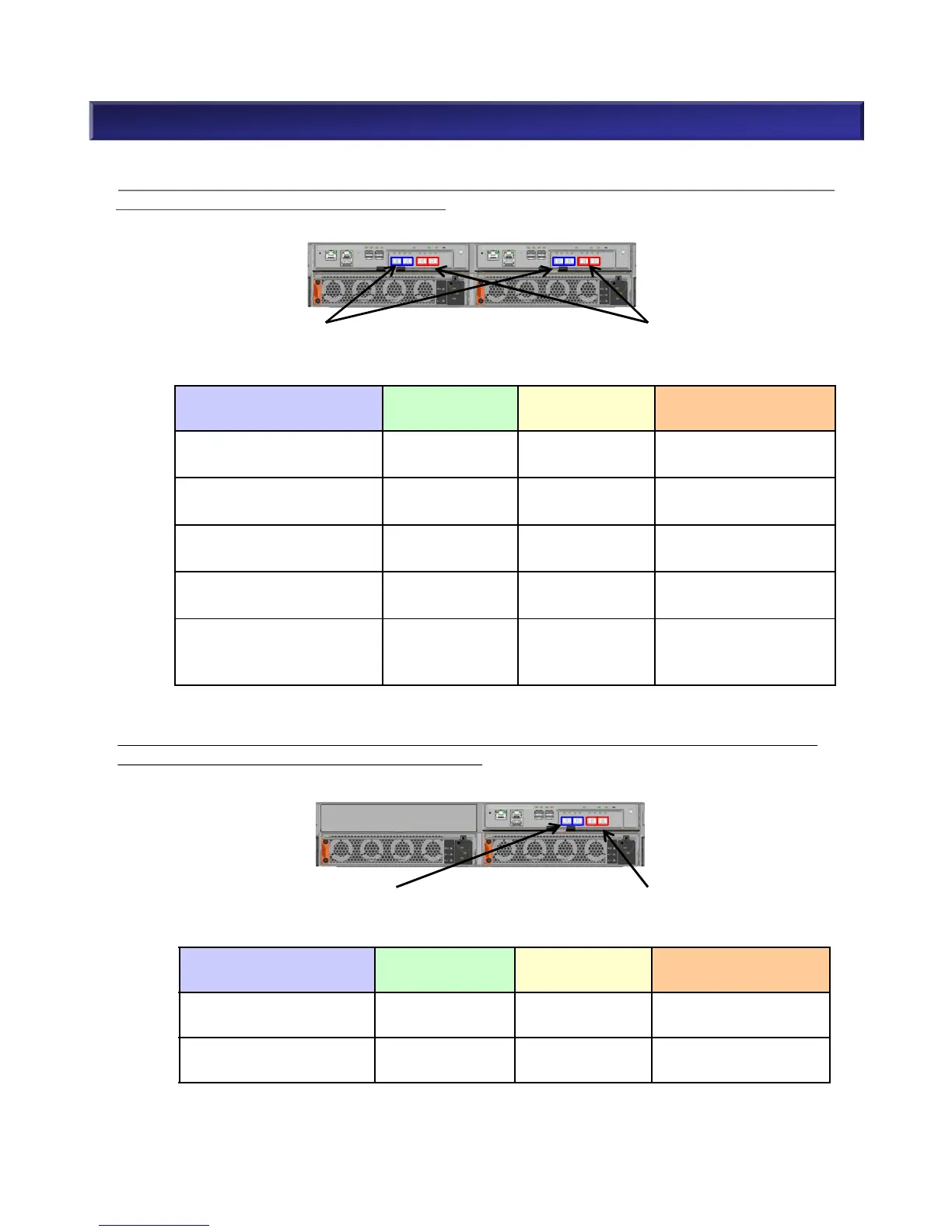

■ Available SFP Module combination for Host Port Card(FC/10Gb iSCSI Optical) [NF5322-SF83E]
The following table shows available SFP combination in case of M110 disk array(dual controller) with
two Host Port Card(FC / 10Gb iSCSI Optical).
Port combination
per unit
8Gb FC SFP
[NF5322-SFP08E]
16G FC SFP
[NF5322-SFP16E]
10Gb iSCSI Optical SFP
[NF5322-SFP10E]
8G FC 2Port
10G iSCSI Optical 2Port
1 0 1
16G FC 2Port
10G iSCSI Optical 2Port
0 1 1
Port combination
per unit
8Gb FC SFP
[NF5322-SFP08E]
16G FC SFP
[NF5322-SFP16E]
10Gb iSCSI Optical SFP
[NF5322-SFP10E]
8G FC 2Port
10G iSCSI Optical 2/4Port
1 0 1 or 2
8G FC 4Port
10G iSCSI Optical 2/4Port
2 0 1 or 2
16G FC 2Port
10G iSCSI Optical 2/4Port
0 1 1 or 2
16G FC 4Port
10G iSCSI Optical 2/4Port
0 2 1 or 2
8G FC 2Port
16G FC 2Port
10G iSCSI Optical 2/4Port
1 1 1 or 2
The following table shows available SFP combination in case of M110 disk array(single controller)
with one Host Port Card(FC / 10Gb iSCSI Optical).
2. M110 Component Selection (11)
Max 4 iSCSI SFPs (corresponded to
2-Model Number) per unit are available.
Max 4 FC SFPs (corresponded to 2-
Model Number) per unit are available.
Max 2 iSCSI SFPs (corresponded to 1-
Model Number) per unit are available.
Max 2 FC SFPs (corresponded to 1-
Model Number) per unit are available.
