NEC M310 - M110 Component Selection Part 12 SFP Module Combinations FC;10 Gb iSCSI Copper

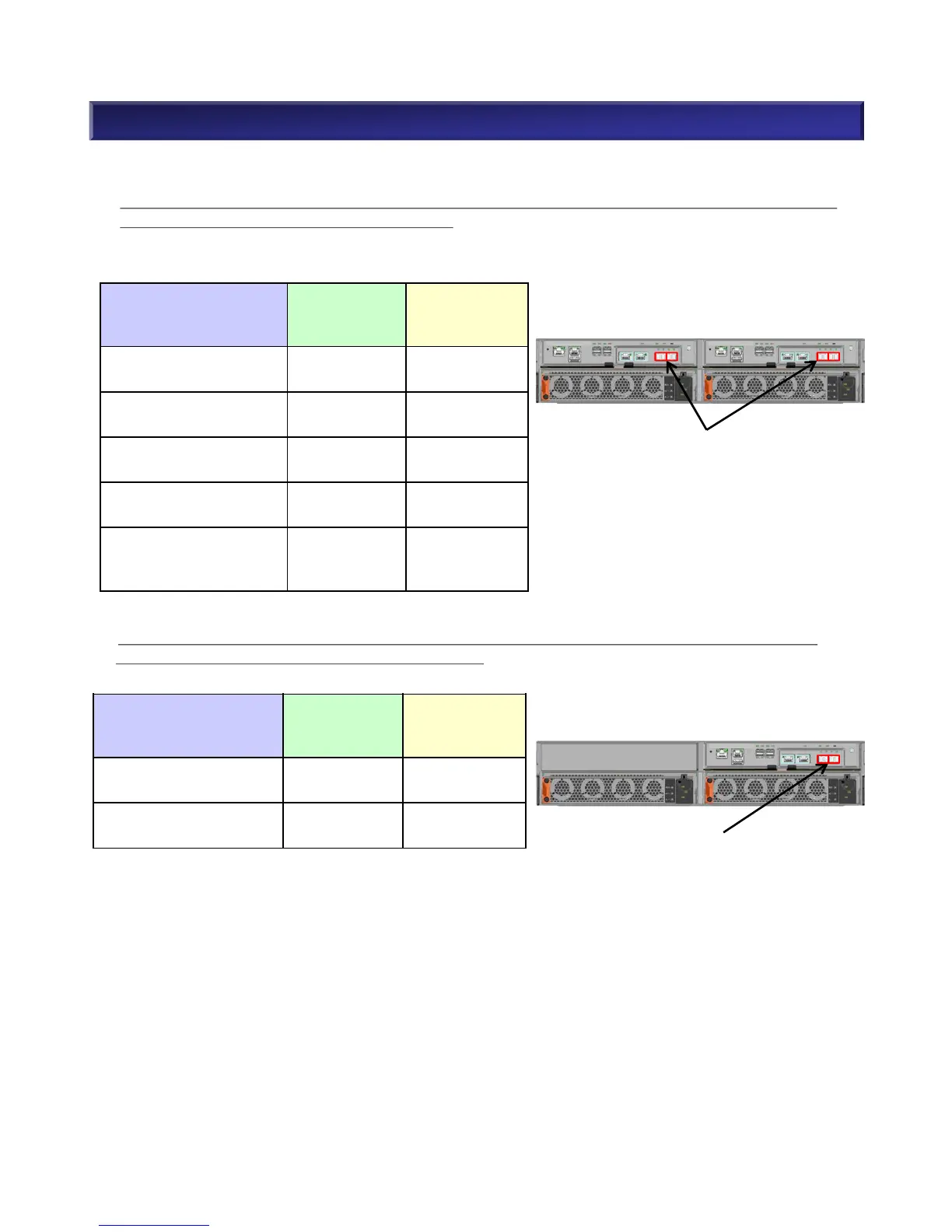

■ Available SFP Module combination for Host Port Card(FC/10Gb iSCSI Copper) [NF5322-SF84E]
Host Port Card(FC/10Gb iSCSI Copper) initially has 2port of 10Gb iSCSI Copper.
The following table shows available SFP combination in case of M110 disk array(dual controller) with
two Host Port Card(FC / 10Gb iSCSI Copper).
Port combination
per unit
8Gb FC SFP
[NF5322-
SFP08E]
16G FC SFP
[NF5322-
SFP16E]
8G FC 2Port
10Gb iSCSI Copper 2Port
1 0
16G FC 2Port
10Gb iSCSI Copper 2Port
0 1
Port combination
per unit
8Gb FC SFP
[NF5322-
SFP08E]
16G FC SFP
[NF5322-
SFP16E]
8G FC 2Port
10Gb iSCSI Copper 4Port
1 0
8G FC 4Port
10Gb iSCSI Copper 4Port
2 0
16G FC 2Port
10Gb iSCSI Copper 4Port
0 1
16G FC 4Port
10Gb iSCSI Copper 4Port
0 2
8G FC 2Port
16G FC 2Port
10Gb iSCSI Copper 4Port
1 1
The following table shows available SFP combination in case of M110 disk array(single controller)
with one Host Port Card(FC / 10Gb iSCSI Copper).
Unit with two FC/10Gb iSCSI Copper Host
Port Card, has initially four 10 Gb iSCSI
Copper ports.
2. M110 Component Selection (12)
Max 4 FC SFPs (corresponded to
2-Model Number) per unit are
available.
Unit with one FC/10Gb iSCSI Copper Host
Port Card, has initially two 10 Gb iSCSI
Copper ports.
Max 2 FC SFPs (corresponded to 1-
Module Number) per unit are available.
