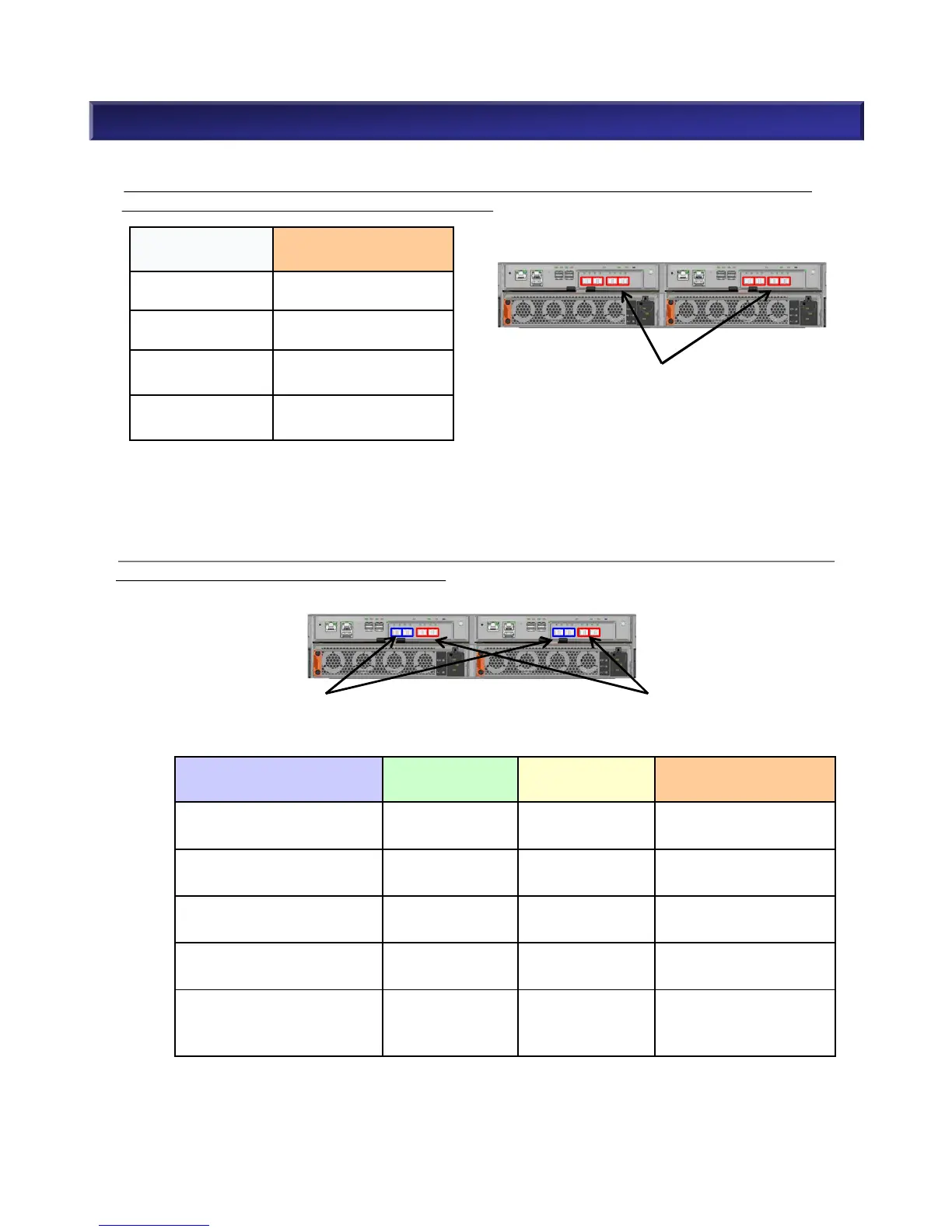

■Available SFP Module combination for Host Port Card(10Gb iSCSI Optical 4Port) [NF5322-SF22E]
The following table shows available SFP combination in case of M310 disk array(dual controller)
with two Host Port Card(10Gb iSCSI Optical 4Port).
Port combination
per unit
10Gb iSCSI Optical SFP
[NF5322-SFP10E]
10G iSCSI Optical
2Port
1
10G iSCSI Optical
4Port
2
10G iSCSI Optical
6Port
3
10G iSCSI Optical
8Port
4
2. M310 Component Selection (8)
Max 8 SFPs (corresponded to 4-Model
Number) per unit are available.
NEC Confidential
38
■ Available SFP Module combination for Host Port Card(FC/10Gb iSCSI Optical) [NF5322-SF83E]
The following table shows available SFP combination in case of M310 disk array(dual controller) with
two Host Port Card(FC / 10Gb iSCSI Optical).
Port combination
per unit
8Gb FC SFP
[NF5322-SFP08E]
16G FC SFP
[NF5322-SFP16E]
10Gb iSCSI Optical SFP
[NF5322-SFP10E]
8G FC 2Port
10G iSCSI Optical 2/4Port
1 0 1 or 2
8G FC 4Port
10G iSCSI Optical 2/4Port
2 0 1 or 2
16G FC 2Port
10G iSCSI Optical 2/4Port
0 1 1 or 2
16G FC 4Port
10G iSCSI Optical 2/4Port
0 2 1 or 2
8G FC 2Port
16G FC 2Port
10G iSCSI Optical 2/4Port
1 1 1 or 2
Max 4 iSCSI SFPs (corresponded to 2-
Model Number) per unit are available.
Max 4 FC SFPs (corresponded to 2-
Model Number) per unit are available.
