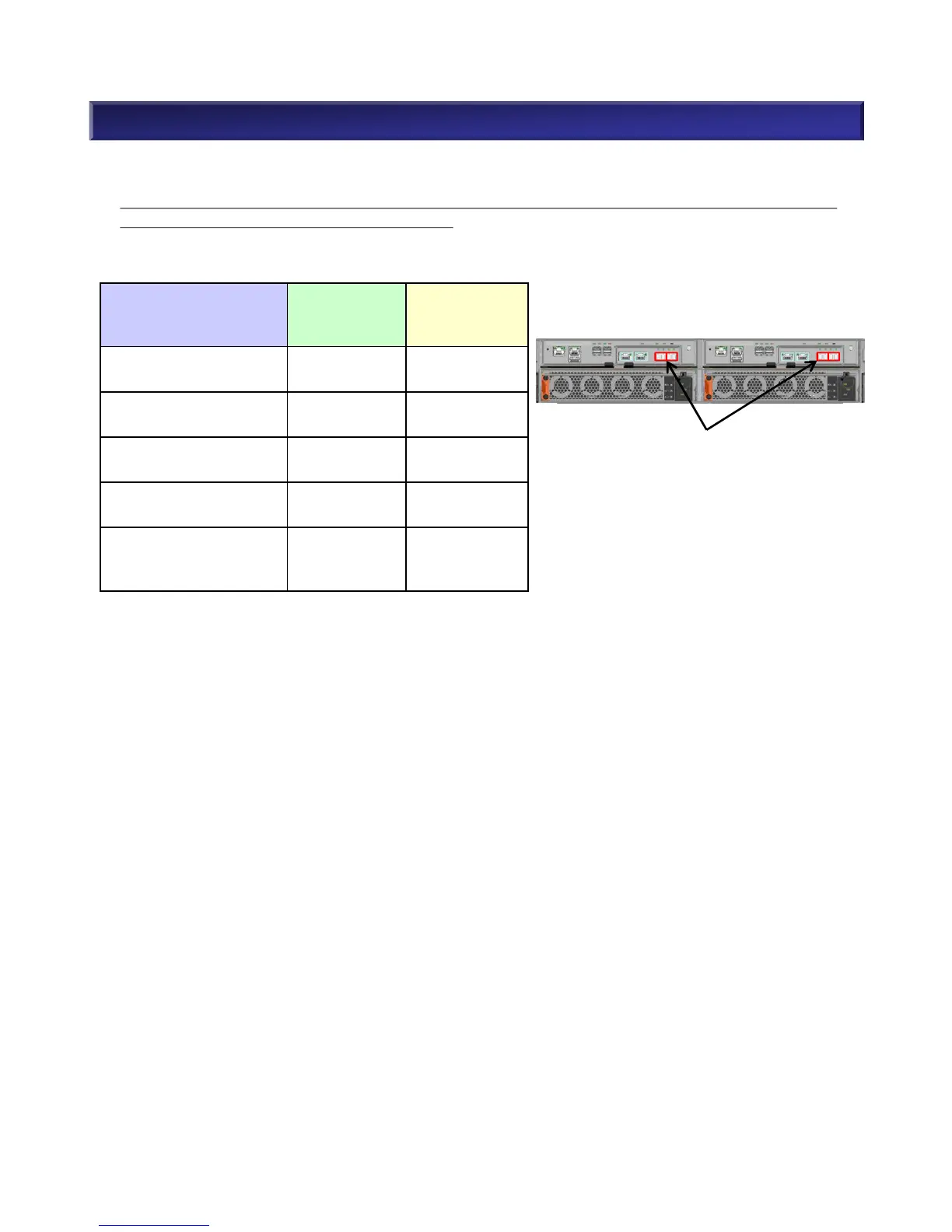

■ Available SFP Module combination for Host Port Card(FC/10Gb iSCSI Copper) [NF5322-SF84E]
Host Port Card(FC/10Gb iSCSI Copper) initially has 2 port of 10Gb iSCSI Copper.
The following table shows available SFP combination in case of M310 disk array(dual controller) with
two Host Port Card(FC / 10Gb iSCSI Copper).
Port combination
per unit
8Gb FC SFP
[NF5322-
SFP08E]
16G FC SFP
[NF5322-
SFP16E]
8G FC 2Port
10Gb iSCSI Copper 4Port
1 0
8G FC 4Port
10Gb iSCSI Copper 4Port
2 0
16G FC 2Port
10Gb iSCSI Copper 4Port
0 1
16G FC 4Port
10Gb iSCSI Copper 4Port
0 2
8G FC 2Port
16G FC 2Port
10Gb iSCSI Copper 4Port
1 1
Unit with two FC/10Gb iSCSI Copper Host
Port Card, has initially four 10 Gb iSCSI
Copper ports.
2. M310 Component Selection (9)
Max 4 FC SFPs (corresponded to 2-
Model Number) per unit are available.
