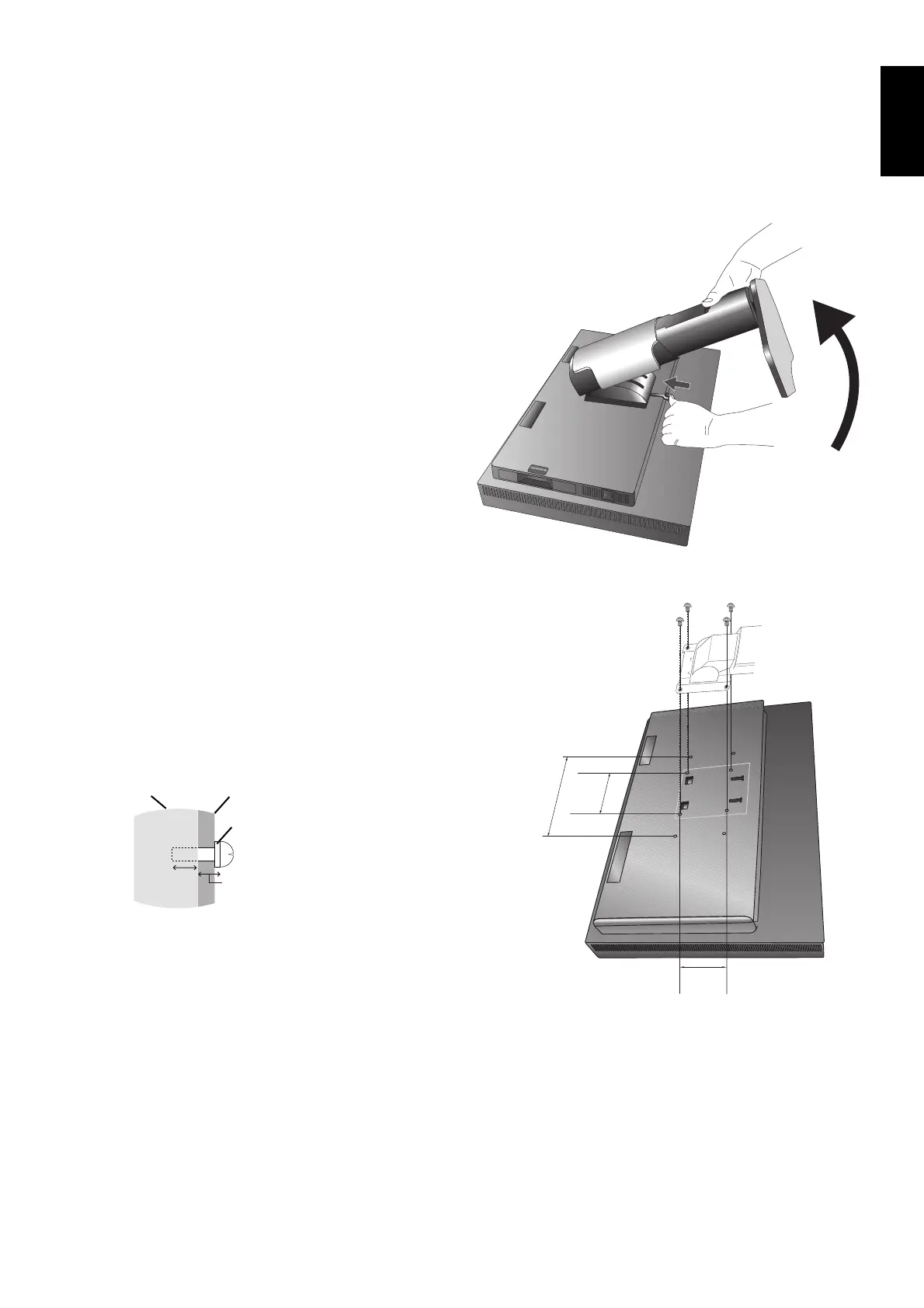

Figure S.1
Flexible Arm Installation
This LCD monitor is designed for use with a fl exible arm.
To prepare the monitor for alternate mounting purposes:
NOTE: The monitor must be installed or moved by two or more people.
• Follow the instructions provided by the manufacturer of the display mount.
• To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the monitor.
See page 27 for details. Remove the monitor stand before mounting.
* Contact your dealer for more information.
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface (Figure S.1).
4. Place one hand around the base and one hand on the
Quick Release Lever.
Push and hold the Quick Release Lever in the direction
indicated by the arrows (Figure S.1).
5. Lift up the stand to unhook it from the monitor (Figure S.1).
The monitor can now be mounted using an alternate method.
Reverse the process to reattach stand.
NOTE: Handle with care when removing monitor stand.
Mount the Flexible arm
This LCD monitor is designed for use with a fl exible arm.
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.
2. Using the attached 4 screws, attach the arm to the monitor (Figure F.1).
Caution: Use ONLY the screws (4 pcs) that are included or M4 sized screws
(Length: thickness of bracket and washer + 10-12 mm) when mounting
to avoid damage to the monitor and stand. To fulfi l the safety requirements
the monitor must be mounted to an arm which guaranties the necessary
stability under consideration of the weight of the monitor.
The LCD monitor should only be used with an approved
arm (e.g. TUEV GS mark).
Mounting
Bracket
Screw
Washer
Unit
10-12 mm
Thickness
of bracket
and washer
NOTE: Tighten all screws.
(recommended Fasten Force: 98 - 137N•cm)
Figure F.1
100 mm
Weight of LCD assembly: 14.2 kg
100 mm200 mm
