Mechanical Description
1. Cabinet
Molded plastic cabinet with tilt swivel base.

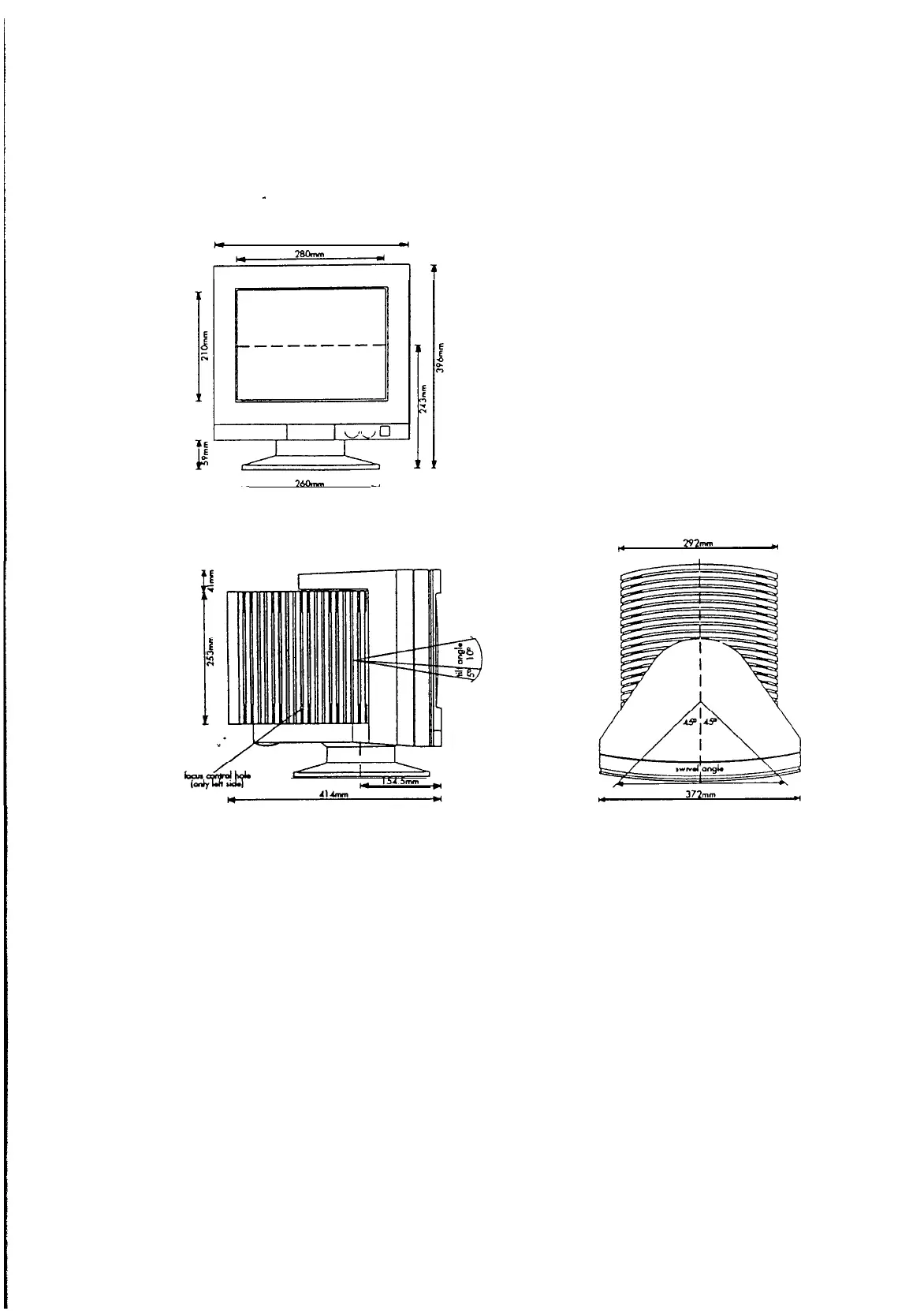

2. Dimensions
^
372 (W) X
396
(H) X 414 (D) mm
372mm
*
3. Tilt Swivel Range
4. Weight
17.8 kg
5.
Controls
Power Switch
Brightness Control
Contrast Control
Color Switch
Sync Switch
H Size Increase, H Size Decrease
H Position Left, H Position right
V Size Increase, V Size Decrease
V Position Up, V Position Down
Memory Recall Button
Mode Status LED
Degauss Switch
6. Input Signal Terminal
Mini D-SUB 15P Connector (MALE)
D-SUB
15P
Connector (MALE)
(See page 3 for Pin Assignments Table)
