English-5
English
Contents
Setup
Manual
Setup Manual
Audio Cable Power Cord*
1
15-pin mini D-SUB
male to 15-pin mini
D-SUB male
Cable management
cover
MultiSync LCD monitor

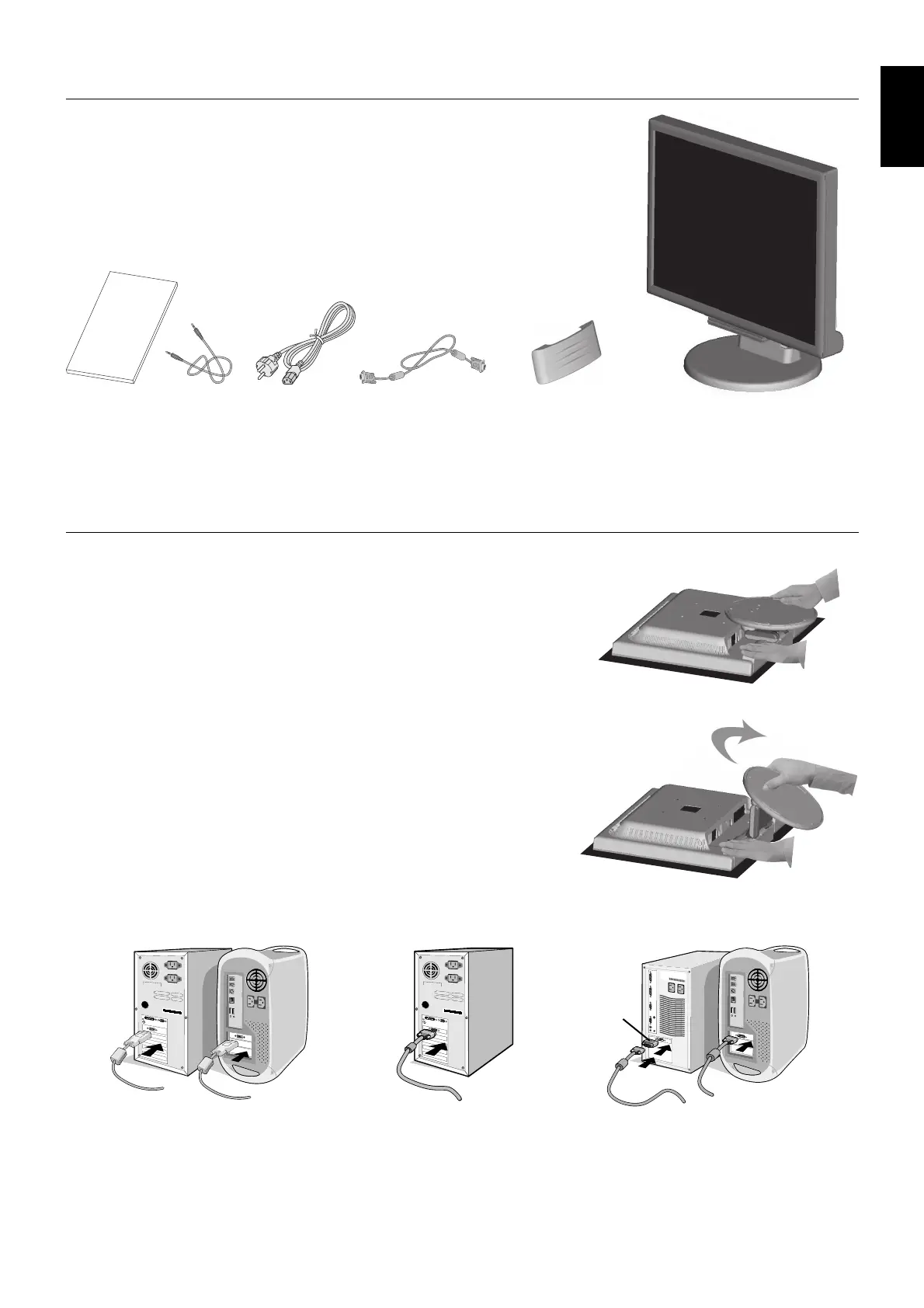

Your new NEC MultiSync LCD monitor box* should contain the following:
• MultiSync LCD monitor with tilt base
• Audio Cable
• Power Cord
• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)
• Setup Manual
• Cable management cover
* Remember to save your original box and packing material to transport or ship the monitor.
*
1
Type of power cord included will depend on the where the LCD monitor is to be shipped.
Quick Start
To pull the stand, follow these instructions:
1. Place monitor face down on a non-abrasive surface (Figure 1).
2. Pull the stand holding the monitor with the other hand until the stand clicks (Figure 2).
Figure 1 Figure 2
NOTE: Handle with care when pulling the stand.
NOTE: Reverse this procedure if you need to re-pack the monitor.
To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI-D signal cable (not included) to the connector of the display
card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.2). Tighten all screws.
For the Mac: Connect the MultiSync Macintosh cable adapter (not included) to the computer. Attach the 15-pin mini
D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure A.3). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
Figure A.1 Figure A.3
Macintosh
Cable Adapter
(not included)
Figure A.2
To Next Page
