English-5
English
Figure 1
Figure 2
Contents
Setup
Manual
Setup Manual
Audio Cable Power Cord*
1
15-pin mini D-SUB
male to 15-pin mini
D-SUB male
Cable management
cover
MultiSync LCD monitor

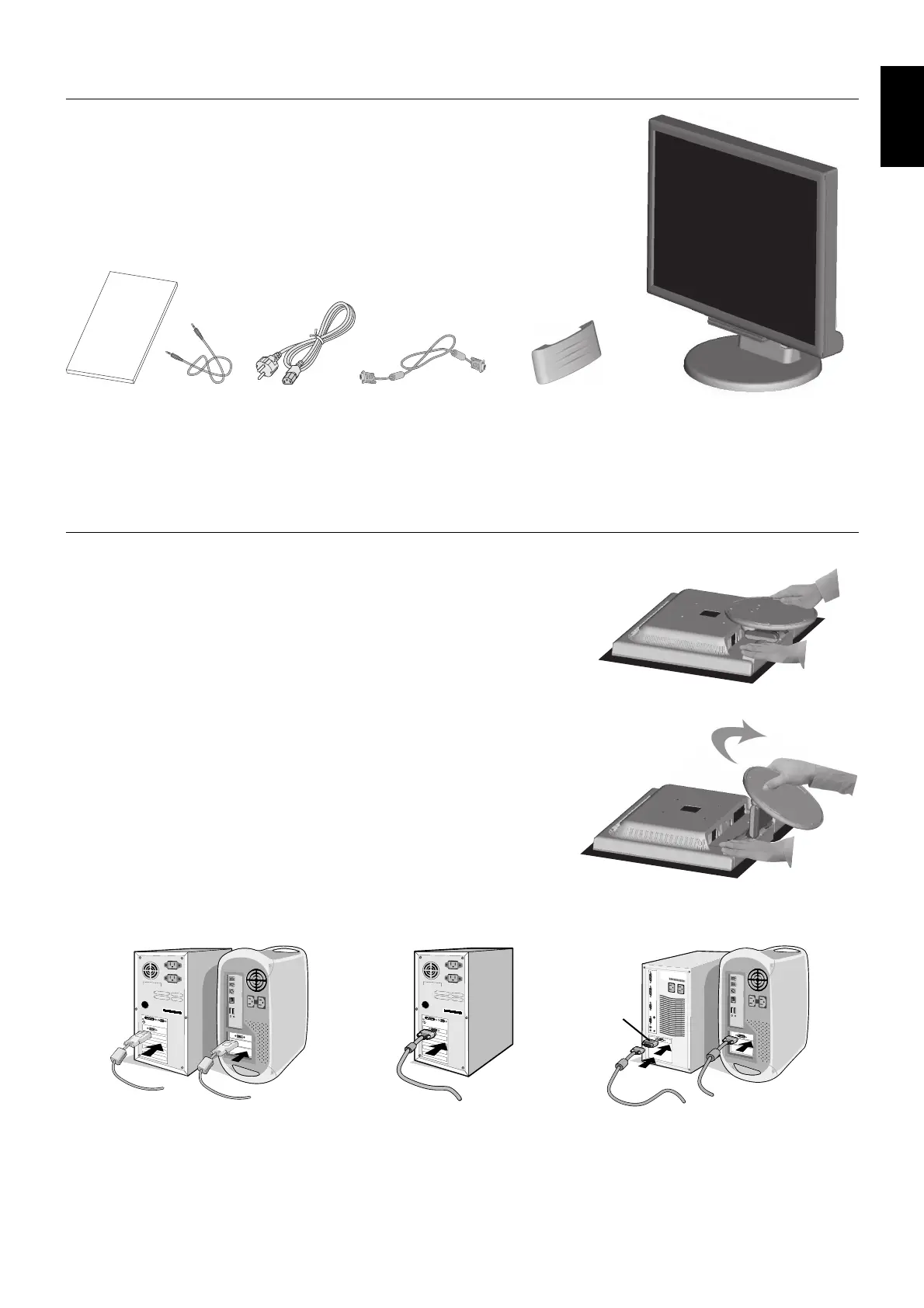

Your new NEC MultiSync LCD monitor box* should contain the following:
• MultiSync LCD monitor with tilt base
• Audio Cable
• Power Cord
• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)
• Setup Manual
• Cable management cover
* Remember to save your original box and packing material to transport or ship the monitor.
*
1
Type of power cord included will depend on the where the LCD monitor is to be shipped.
Quick Start
To pull the stand, follow these instructions:
1. Place monitor face down on a non-abrasive surface (Figure 1).
2. Pull the stand holding the monitor with the other hand until the stand clicks (Figure 2).
NOTE: Handle with care when pulling the stand.
NOTE: Reverse this procedure if you need to re-pack the monitor.
To attach the MultiSync LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 3) before installation.
The accessories included will depend on the where the LCD monitor is to be shipped.
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI-D signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable
to the connector of the display card in your system (Figure A.2). Tighten all
screws.
For the Mac: Connect the MultiSync Macintosh cable adapter to the computer.
Attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter
(Figure A.3). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
Figure A.1 Figure A.3
Macintosh
Cable Adapter
Figure A.2
To Next Page
