NEC MultiSync EA191M User Manual

English-6
Quick Start
To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your
system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to
the Macintosh cable adapter (Figure B.1). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position
(Figure C.1).
4. Connect all cables to the appropriate connectors (Figure C.1). Connect the Headphone (not included) to the appropriate
connector at the left side of the monitor (Figure C.1).

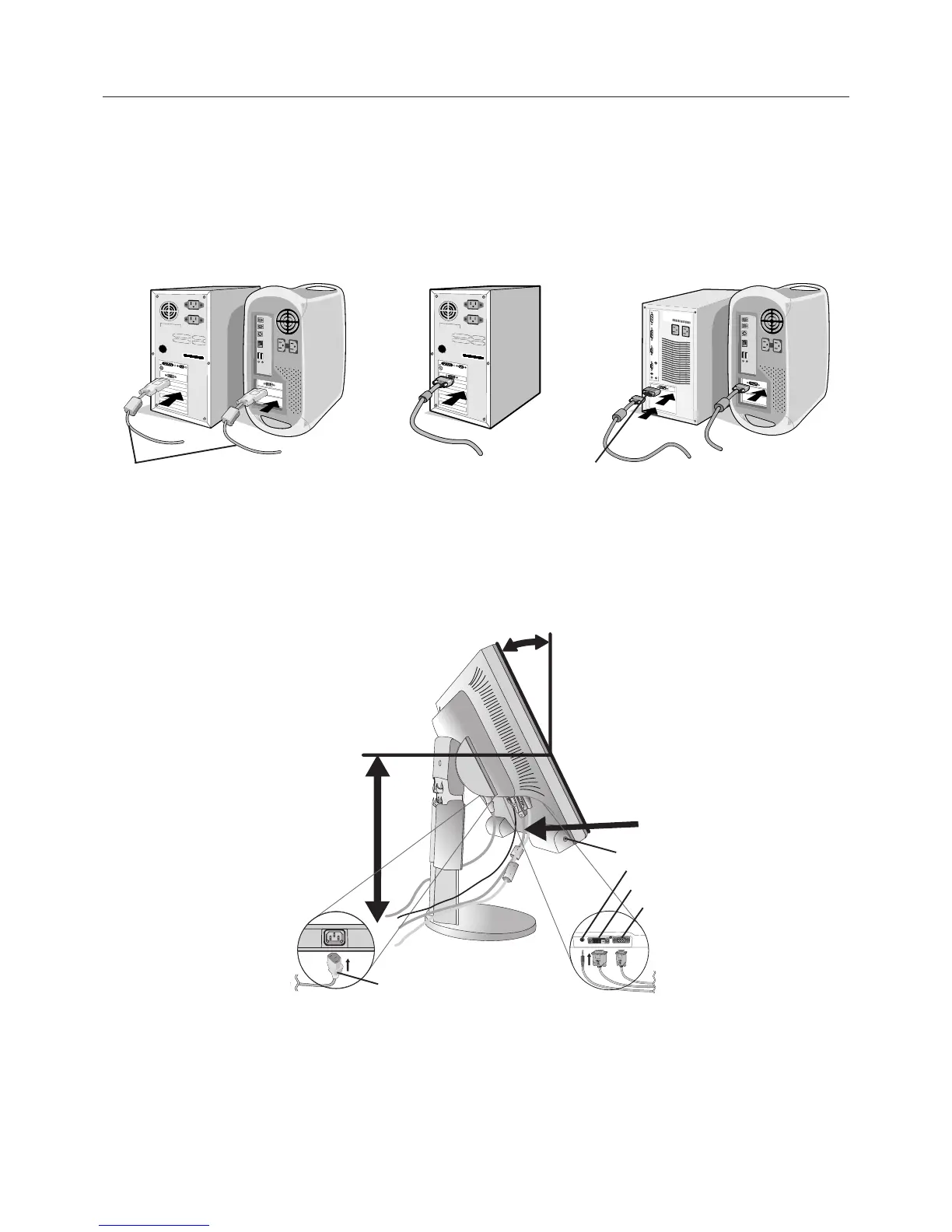

Figure A.1 Figure B.1
Macintosh
Cable Adapter
(not included)
Figure A.2
DVI signal cable
Highest
Stand
Position
30˚ Tilt
Figure C.1
Power Cord
Input1 (DVI)
Input2 (D-Sub)
Audio Input
DVI Cable
Headphone

NEC MultiSync EA191M Specifications

General

Brand	NEC
Model	MultiSync EA191M
Category	Monitor
Language	English
