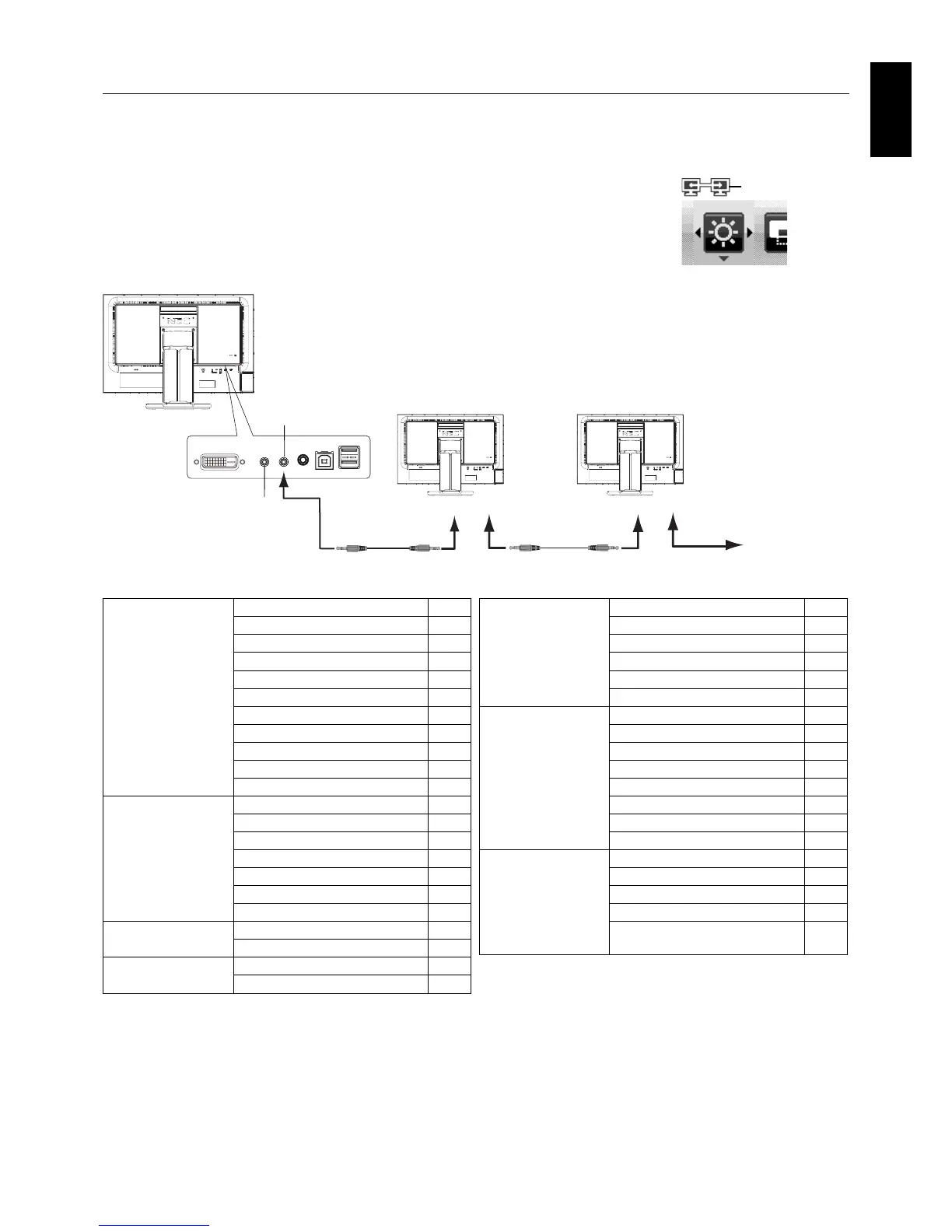

English-21
English
ControlSync
1. Connect the master monitor with a sub monitor via a ControlSync cable (ø 2.5) into ControlSync IN/OUT.
2. Follow the steps of DATA COPY. When the setting of the master monitor is adjusted, it will be copied and sent to the
connected sub monitor(s) automatically.
3. Up to 5 sub monitors can be daisy-chained via ControlSync.
NOTE: Connect the master monitor via ControlSync OUT connector.
The ControlSync icon will appear on the upper left of the OSD menu in the sub monitor.
Do not connect IN-IN or OUT-OUT.
Do not make “loop” connection.
Once the monitors are connected, turn the master monitor’s power button off and on
to check if ControlSync operates correctly.
IN (Gray)
Next monitor
OUT (Black)
IN OUT IN OUT
ControlSync cable ControlSync cable
Up to 5 sub monitors
(Gray)(Black) (Gray)(Black)
Sub Monitor 1 Sub Monitor 2
Master Monitor
The following settings can be controlled by ControlSync:
ECO TOOLS BRIGHTNESS* Yes
CONTRAST No
ECO MODE Yes
AUTO BRIGHTNESS Yes
OFF MODE SETTING Yes
OFF MODE SENSOR SETTING Yes
OFF MODE START TIME Yes
HUMAN SENSING Yes
HUMAN SENSOR SETTING Yes
HUMAN SENSOR START TIME Yes
DV MODE Yes
SCREEN AUTO ADJUST No
AUTO CONTRAST No
LEFT/RIGHT No
DOWN/UP No
H.SIZE No
FINE No
INPUT RESOLUTION No
COLOR Color preset Yes
R, G, B, color gain No
TOOLS VOLUME Yes
SOUND INPUT No
TOOLS (continuation) VIDEO DETECT No
EXPANSION MODE Yes
OFF TIMER Yes
LED BRIGHTNESS Yes
DDC/CI Yes
FACTORY PRESET No
MENU TOOLS LANGUAGE Yes
OSD TURN OFF Yes
OSD LOCK OUT Yes
HOT KEY Yes
SIGNAL INFORMATION Yes
SENSOR INFORMATION Yes
KEY GUIDE Yes
CUSTOMIZE SETTING No
ECO INFORMATION CARBON SAVINGS No
COST No
CARBON CONVERT SETTING Yes
CURRENCY SETTING Yes
CURRENCY CONVERT
SETTING
Yes
Other settings:
Power Control (DC switch)
Ambient Sensor
Human Sensor Result
Audio Mute
NOTE: Only the master monitor’s human sensor and ambient sensor are active. Please do not cover these sensors.
Turn the monitor’s power off before connecting/disconnecting the ControlSync cable.
Do not use the ControlSync connectors for any purpose other than specifi ed.
* This value is not a directly adjusted output value. This is adjusted relatively.
ControlSync icon

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NEC MultiSync EA223WM and is the answer not in the manual?

NEC MultiSync EA223WM Specifications

General IconGeneral
3DNo
HD typeWSXGA+
Panel typeTN
Pixel pitch0.282 x 0.282 mm
Aspect ratio16:10
Screen shapeFlat
Backlight typeW-LED
Display diagonal22 \
Display resolution1680 x 1050 pixels
Display technologyLED
Maximum refresh rate60 Hz
Contrast ratio (dynamic)25000:1
Contrast ratio (typical)1000:1
Display number of colors16.78 million colors
Digital vertical frequency56 - 75 Hz
Digital horizontal frequency31.5 - 82.3 kHz
Display brightness (typical)250 cd/m²
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
On/off switchYes
Power consumption (economy mode)12 W
USB hub version2.0
DVI-I ports quantity-
USB Type-A downstream ports quantity4
CertificationCE; Energy Star 5.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product colorWhite
RMS rated power2 W
Number of speakers2
Pivot angle0 - 90 °
LED indicatorsPower
Tilt angle range-5 - 30 °
Height adjustment130 mm
Cable lock slot typeKensington
Panel mounting interface100 x 100 mm
Power consumption (max)25 W
Annual energy consumption18 kWh
Power consumption (standby)- W
Power consumption (PowerSave)0.5 W
Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)20 - 80 %
Cables includedAC, DisplayPort, USB
Sustainability certificatesEPEAT Gold, ENERGY STAR
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)218 mm
Height (with stand)384 mm
Weight (with stand)5600 g
Depth (without stand)- mm
Width (without stand)503.5 mm
Weight (without stand)- g
