NEC MultiSync EA223WM User Manual

English-6

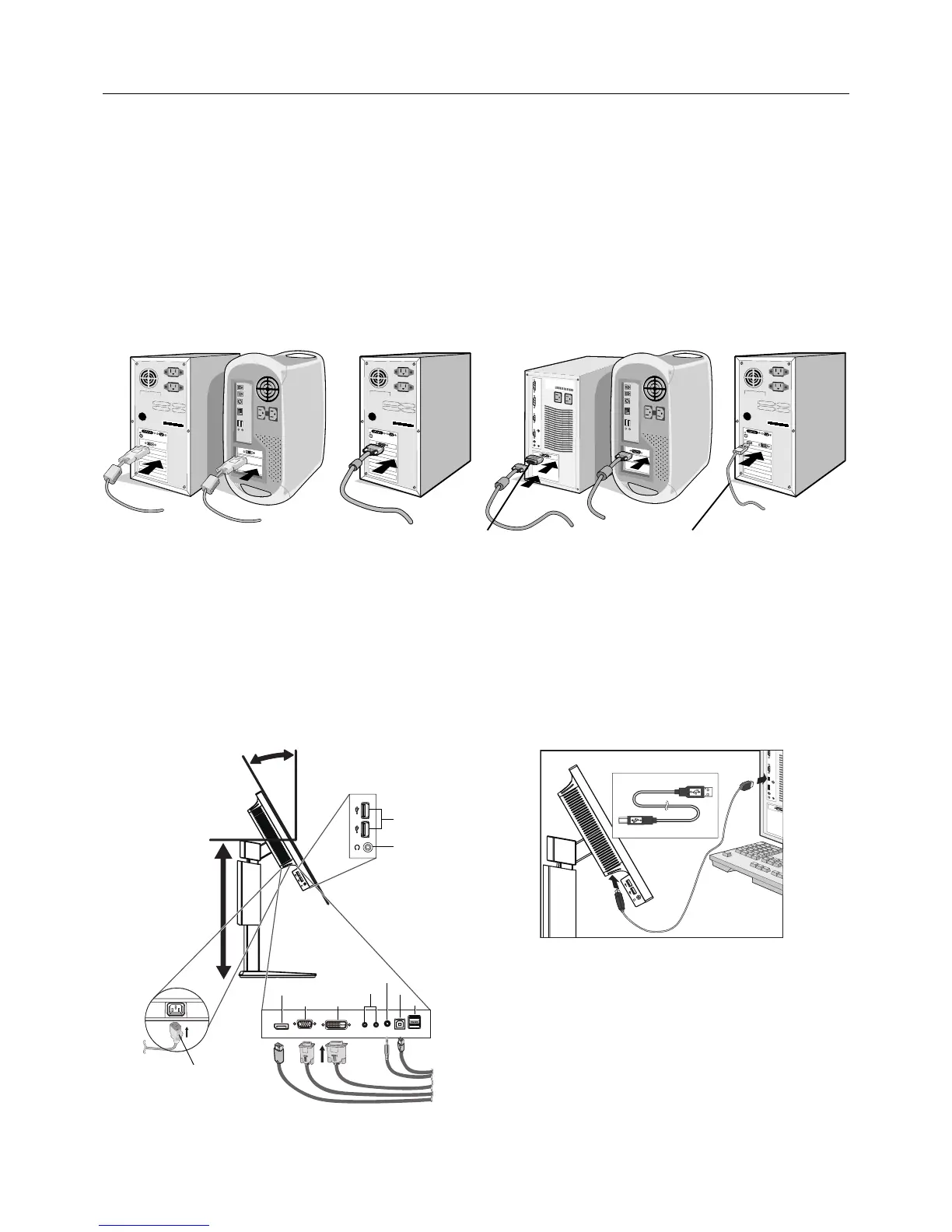

Quick Start
To connect the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 3) before installation.
1. Turn off the power of your computer.
2. For a PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system
(Figure A.1). Tighten all screws.
For a PC with Analog output: Connect a 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.2).
For a MAC: Connect a Macintosh cable adapter (not included) to the computer, then attach the 15-pin mini D-SUB signal
cable to the Macintosh cable adapter (Figure A.3).
NOTE: Some Macintosh systems do not require any Macintosh cable adapter.
For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.4).
Figure A.1
Figure A.3
Macintosh Cable
Adapter
(not included)
Figure A.2
Figure A.4
DisplayPort cable
(not included)
NOTE: 1. Please use a DisplayPort cable with DisplayPort logo.
2. When removing the DisplayPort cable, hold down the top button to release the lock.
3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position.
4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the
computer (Figure C.1a). If using the cord from a USB device, plug into one of the downstream ports of the monitor.
NOTE: Incorrect cable connections may cause abnormal operation, damage display quality/components of LCD module and/
or shorten the module’s life.
Figure C.1
Power cord
30° Tilt
DisplayPort
DVID-SUB
Figure C.1a
A Type
B Type
A Type
B Type
Highest
Stand
Position
Audio Input
USB Downstream
Headphone
USB Downstream
ControlSync IN/OUT*
USB Upstream
*: See page 21

NEC MultiSync EA223WM Specifications

General

3D	No
HD type	WSXGA+
Panel type	TN
Pixel pitch	0.282 x 0.282 mm
Aspect ratio	16:10
Screen shape	Flat
Backlight type	W-LED
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Display technology	LED
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 82.3 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+)
On/off switch	Yes
Power consumption (economy mode)	12 W
USB hub version	2.0
DVI-I ports quantity	-
USB Type-A downstream ports quantity	4
Certification	CE; Energy Star 5.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product color	White
RMS rated power	2 W
Number of speakers	2
Pivot angle	0 - 90 °
LED indicators	Power
Tilt angle range	-5 - 30 °
Height adjustment	130 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (max)	25 W
Annual energy consumption	18 kWh
Power consumption (standby)	- W
Power consumption (PowerSave)	0.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DisplayPort, USB
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (with stand)	218 mm
Height (with stand)	384 mm
Weight (with stand)	5600 g
Depth (without stand)	- mm
Width (without stand)	503.5 mm
Weight (without stand)	- g
