You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information.
Connect the LCD Monitor to a Stereo Amplifier
•Turn on the LCD monitor and the amplifier only after all connections have been made.
• Use an RCA cable to connect the AUDIO OUT connector (RCA) on the LCD monitor and the audio input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN is used for audio input.
• The AUDIO OUT jack outputs sound from the selected Audio input.

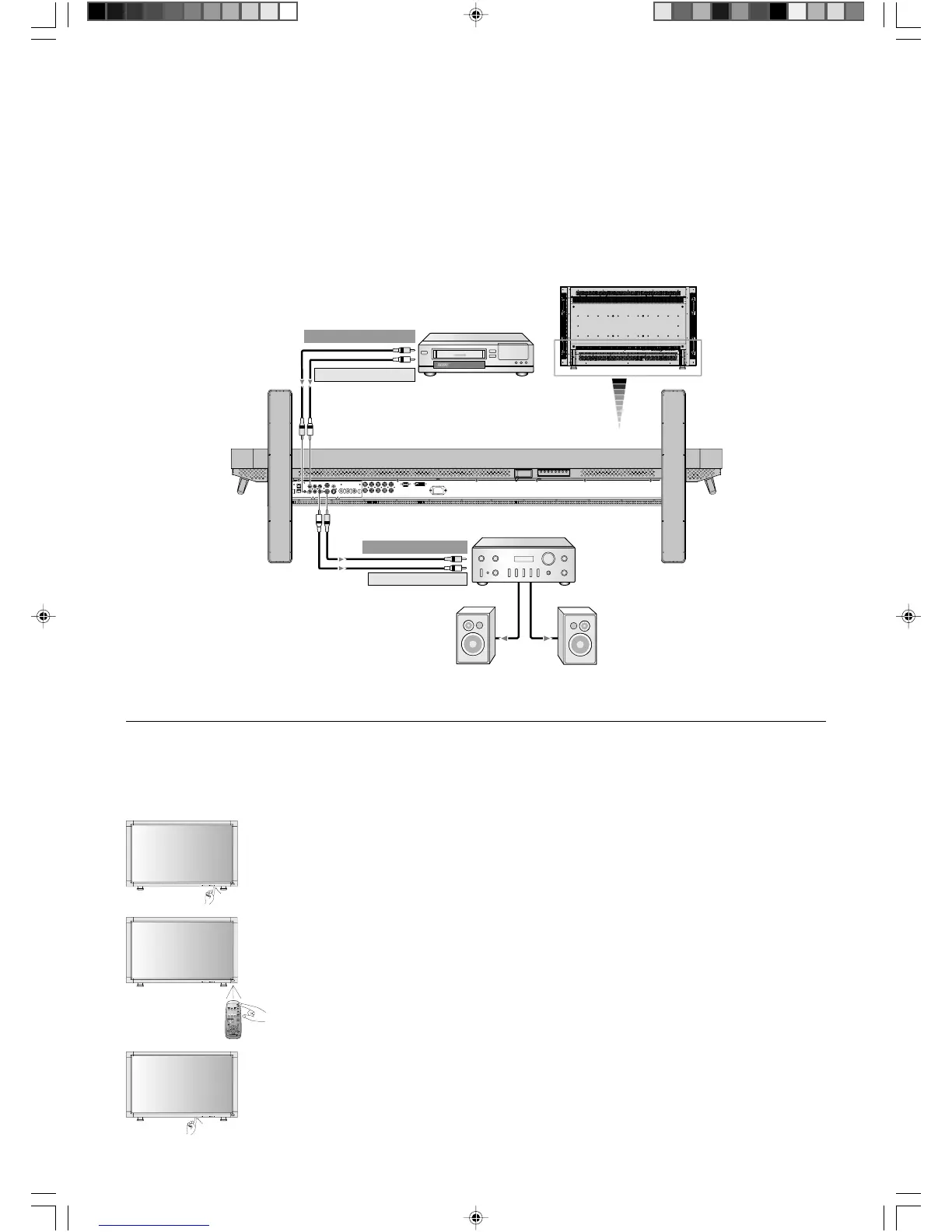

Connecting to a Stereo Amplifier
LCD monitor
RCA
RCA
Amplifier
External
speaker
External
speaker
VCR or
Laser disc player
Basic Operation
Power ON and OFF Modes
The LCD monitor power indicator will turn green while powered on, or red when in off mode. The monitor can be powered on
or off using the following three options:
1. Pressing the power button.
Note: Before pressing the power button, be sure to turn on the Main Power Switch on the LCD
monitor.
Main Power Switch
Power Button
2. Using the remote control.
Note: Before operating the remote control, be sure to turn on the Main Power Switch on the LCD
monitor.
3. Pressing the Main Power Switch.
Note: When the Main Power Switch is used to power off the LCD, the remote control and the power
button will not activate the on mode and both green and red power indicator turn off. Be sure
to turn the Main Power Switch to the on mode before using these two options.
To audio left output
To audio right output
To audio left output
To audio right output
