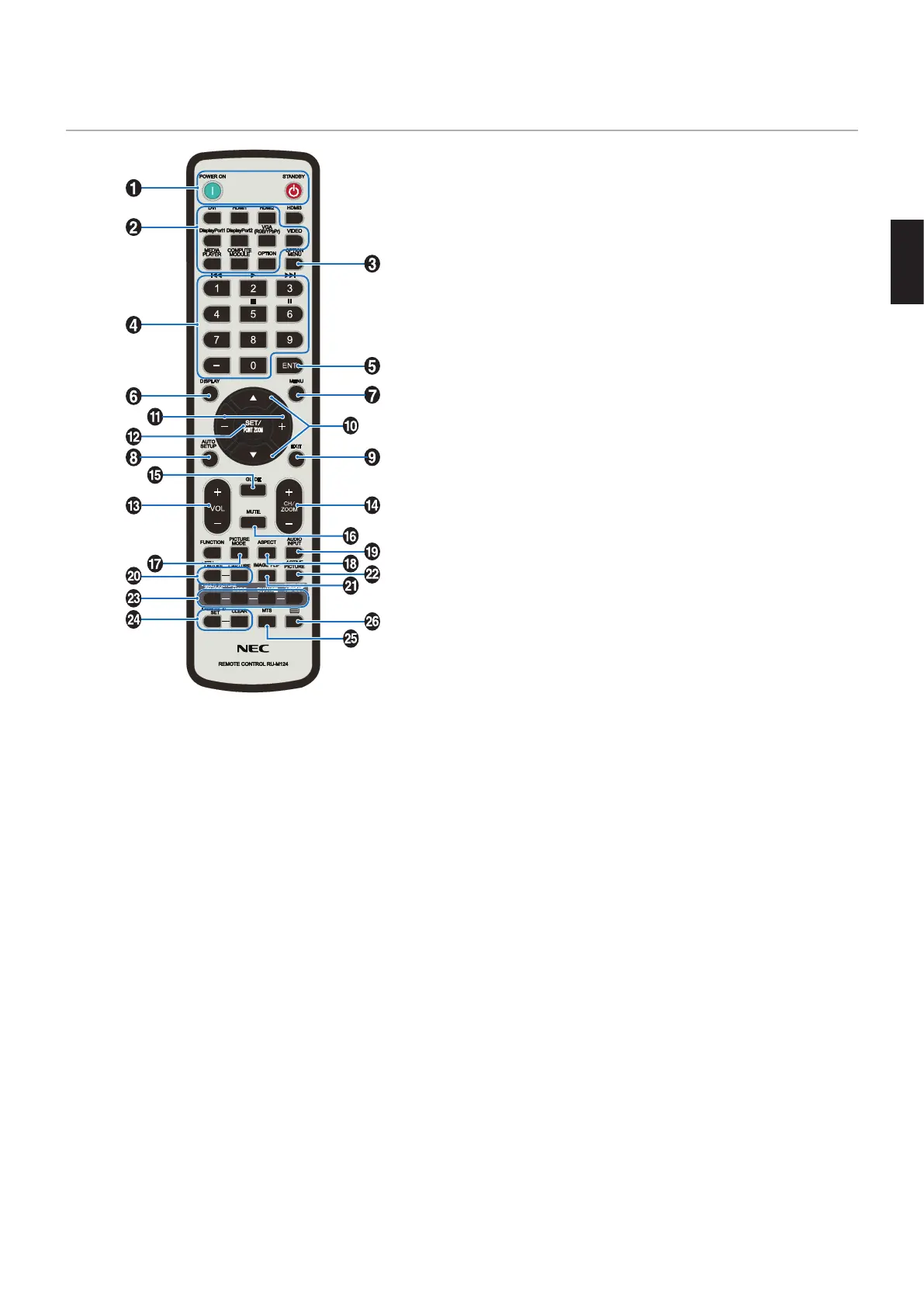

Wireless Remote Control (Optional)
NOTE: The buttons with no explanation are not used with
your monitor model.
A POWER ON and STANDBY Buttons
POWER ON resumes full power from low power mode.
STANDBY puts the monitor in low power mode.
See page 32.
B INPUT Button
Cycles through the available inputs. See page 25 and
page 27.
These are available inputs only, shown as their factory
preset name.
NOTE: MP is an abbreviation of Media Player.
C OPTION MENU Button
For use when an Option Board is installed. See page 15.
The function depends on which Option Board installed in the monitor.
D KEYPAD
Press the buttons to set and change passwords, change the
channel and set the REMOTE ID. See page 73.
Some buttons are used for CEC (Consumer Electronics
Control) and the Media Player function (“Using the Remote
Controls” on page 41).
E ENT Button
Makes selections in the Media Player settings.
See page 63.
For use with an Option Board. The function depends on
which Option Board installed in the monitor.
F DISPLAY Button
Shows/Hides the information OSD. See page 37.
Unlocks the remote control’s buttons if they have been
locked in the IR LOCK SETTINGS. Press and hold the
DISPLAY button for more than 5 seconds to unlock the
remote. See page 60.
G MENU Button
Opens and closes the OSD menu. See page 37.
H AUTO SET UP Button
Enters auto setup menu. See page 103.
I EXIT Button
Acts as a back button within the OSD to move to the
previous OSD menu.
Acts as an EXIT button to close the OSD when on the main
menu.
J / Button (up/down button)
Acts as navigation buttons, within the OSD and Media
Player menus, to move the highlighted area up or down.
Moves the Active picture up or down when using Multi
Picture Mode. See page 54.
K -/+ Button (minus/plus button)
Acts as navigation buttons, within the OSD and Media
Player menus, to move the highlighted area left or right.
Increases or decreases the adjustment level within the
selected OSD menu setting.
Moves the Active picture left or right when using Multi
Picture Mode. See page 54.
L SET/POINT ZOOM Button
SET: When the OSD is shown, this button acts as a set
button when you make a selection.
POINT ZOOM: When the OSD is not shown, this button acts
as a point zoom button. See page 36.
M VOLUME +/- Button
Increases or decreases the audio output level.
N CH/ZOOM +/- Button*
Increases or decreases the point zoom level. Please refer to
the Point Zoom instructions. See page 36.
*: When using with an Option Board, the function depends on which Option
board is installed in the monitor.
