NEC MultiSync V552-DRD - Pin Assignment

English-43
English

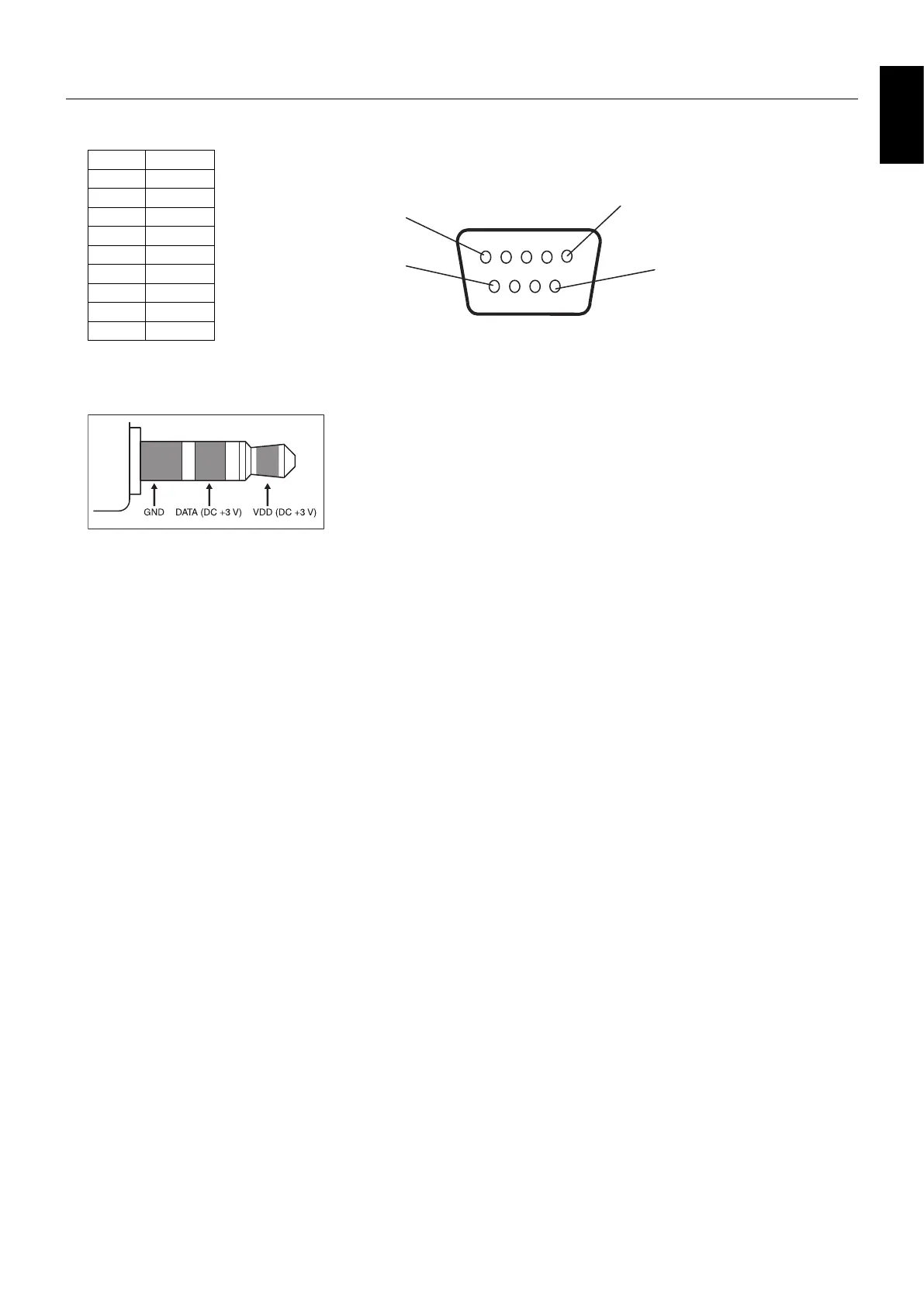

1) RS-232C input/output
1
6
5
9
D-SUB 9P
Pin No Name
1NC
2 RXD
3 TXD
4NC
5 GND
6NC
7NC
8NC
9NC
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
2) REMOTE IN
Pin Assignment
