NEC MultiSync VT440 - Connecting Your DVD Player

E–22
R
G
B
IN
P
U
T
O
U
T
P
U
T
A
U
D
IO
IN
INO
U
T
O
U
T
P
C
-C
O
N
T
R
O
L
S
-V
ID
E
O
V
ID
E
O
RGB INPUT
Y Cb Cr
R L
R L

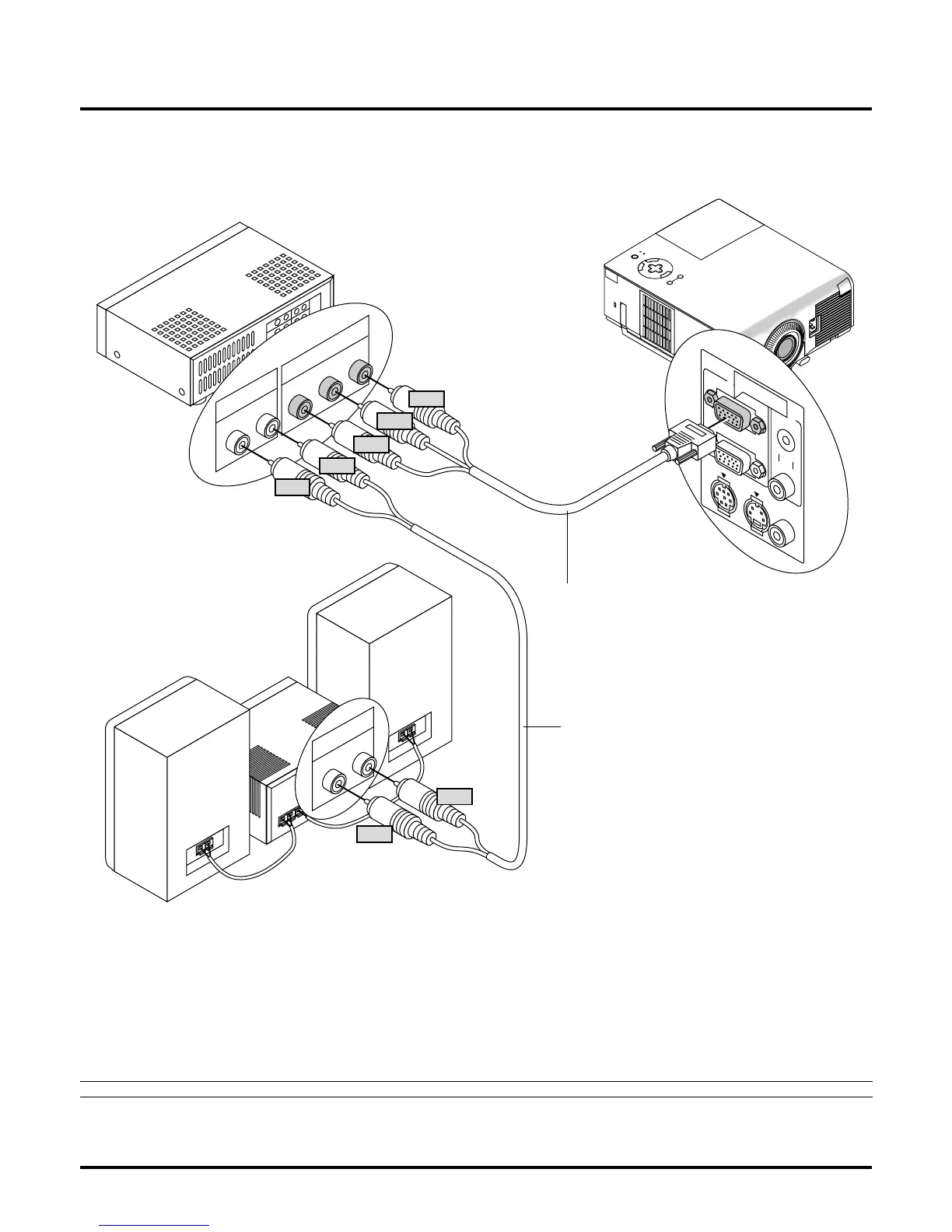

You can connect your projector to a DVD player with component outputs or Video output. To do so, simply:
1. Turn off the power to your projector and DVD player.
2. If your DVD player has the component video (Y,Cb,Cr) output, use the optional 15-pin-to-RCA3 cable to connect your DVD player to the
RGB INPUT connector on the projector.
For a DVD player without component video (Y,Cb,Cr) outputs, use common RCA cables (not provided) to connect a composite VIDEO
output of the DVD player to the Video Input of the projector.
3. Turn on the projector and DVD player.
NOTE: Refer to your DVD player’s owner’s manual for more information about your DVD player’s video output requirements,
Connecting Your DVD Player
Optional 15-pin-to-RCA3 cable
(Component V )
Audio cable
(not supplied)
DVD player
White
Red
Y
Cb
Cr
White
Red
Audio Equipment
