English-11
English

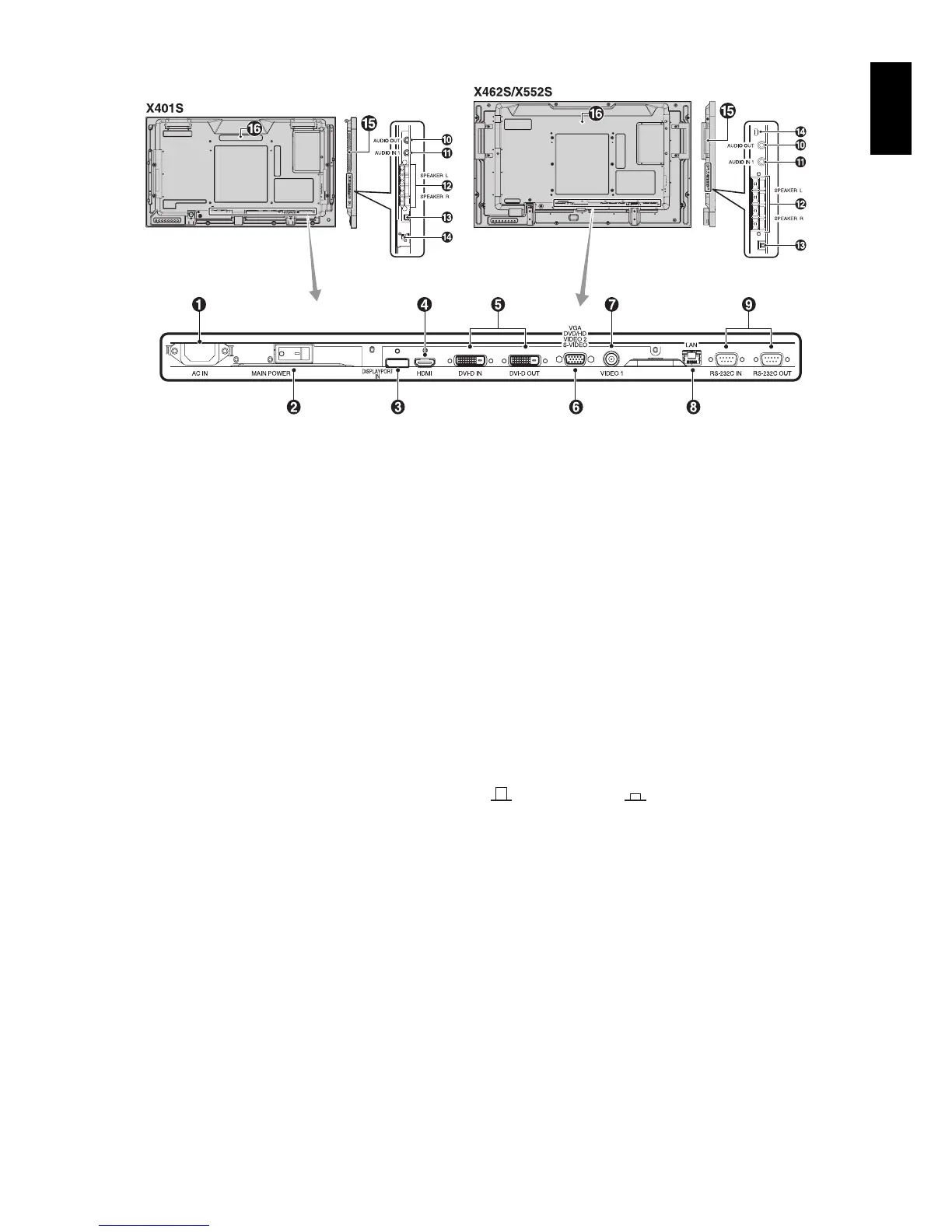

Terminal Panel
쐃 AC IN connector
Connects with the supplied power cord.
쐇 Main Power Switch
On/Off switch to turn main power ON/OFF.
쐋 DISPLAYPORT connector
To input DisplayPort signals.
쐏 HDMI connector
To input digital HDMI signals.
쐄 DVI connector (DVI-D)
IN connector: To input digital RGB signals from a computer
or HDTV device having a digital RGB output.
* This connector does not support analog input.
OUT connector: To output the DVI signal from either DVI IN
or HDMI connection.
쐂 VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment. This input can be used with an
RGB, COMPONENT, SCART, VIDEO or S-VIDEO source.
Please select signal type in TERMINAL SETTING.
See page 27.
NOTE: When you use this connector for COMPONENT,
SCART, VIDEO or S-VIDEO, please use a suitable signal
cable. If you have any questions, please ask your dealer.
쐆 VIDEO1 IN connector (BNC)
To input a composite video signal.
LAN port (RJ-45)
LAN connection. See page 34.
쐎 RS-232C (D-Sub 9 pin)
IN connector: Connect RS-232C input from external
equipment such as a PC in order to control RS-232C functions.
OUT connector: Connect RS-232C output. To connect
multiple MultiSync monitors via RS-232C daisy Chain.
쐅 AUDIO OUT
To output the audio signal from the AUDIO IN 1, DPORT and
HDMI to an external device (stereo receiver, amplifi er, etc.).
NOTE: When attaching the SP-RM2 for an external speaker,
use a stereo mini jack that has a L-shaped connector head
under 29 mm.
쐈 AUDIO IN 1
To input audio signal from external equipment such as a
computer, VCR or DVD player.
NOTE: When attaching the SP-RM2 for an external speaker,
use a stereo mini jack that has a L-shaped connector head
under 29 mm.
쐉 EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, DPORT and HDMI.
Red terminal is plus (+).
Black terminal is minus (-).
Note: This speaker terminal is for 10W + 10W (8 ohm) speaker.
씈 Internal/External speaker switch
: Internal speaker : External speaker.
NOTE: Please power off the monitor when you use the
Internal/External speaker switch.
씉 Kensington Lock
For security and theft prevention.
씊 Option board slot
Slot 2 type accessories are available. Please contact your
supplier for detailed information.
NOTE: Please contact your supplier for available option board.
씋 Internal speaker
