38
ADJUSTMENT
4 Press the R, G, and B button to project the CRT beam to be
adjusted.
• You can turn on or off each CRT beam (R, G, and
B)separately.
NOTE:
• The CENTER, EDGE SEPA. ,and CORNER focus adjustment
should be performed for each CRT separately.
• The EDGE ALL focus adjustment affects all the three CRTs at
the same time.
5 Hold down the CTL button then select the CRT you wish to
adjust with the R, G, and B button.
• The display of the corresponding CRT will change from one
CRT to another.
NOTE:
• You do not need to select the CRT color for the EDGE ALL
focus.
• Always be aware of what color the on-screen CRT display is
showing (R, G, B) when “CENTER”, “EDGE SEPA.”, or “COR-
NER” is selected. If that color’s test pattern is turned off, any
adjustment to that color will display the “THIS COLOR IS NOT
APPLICABLE” message.

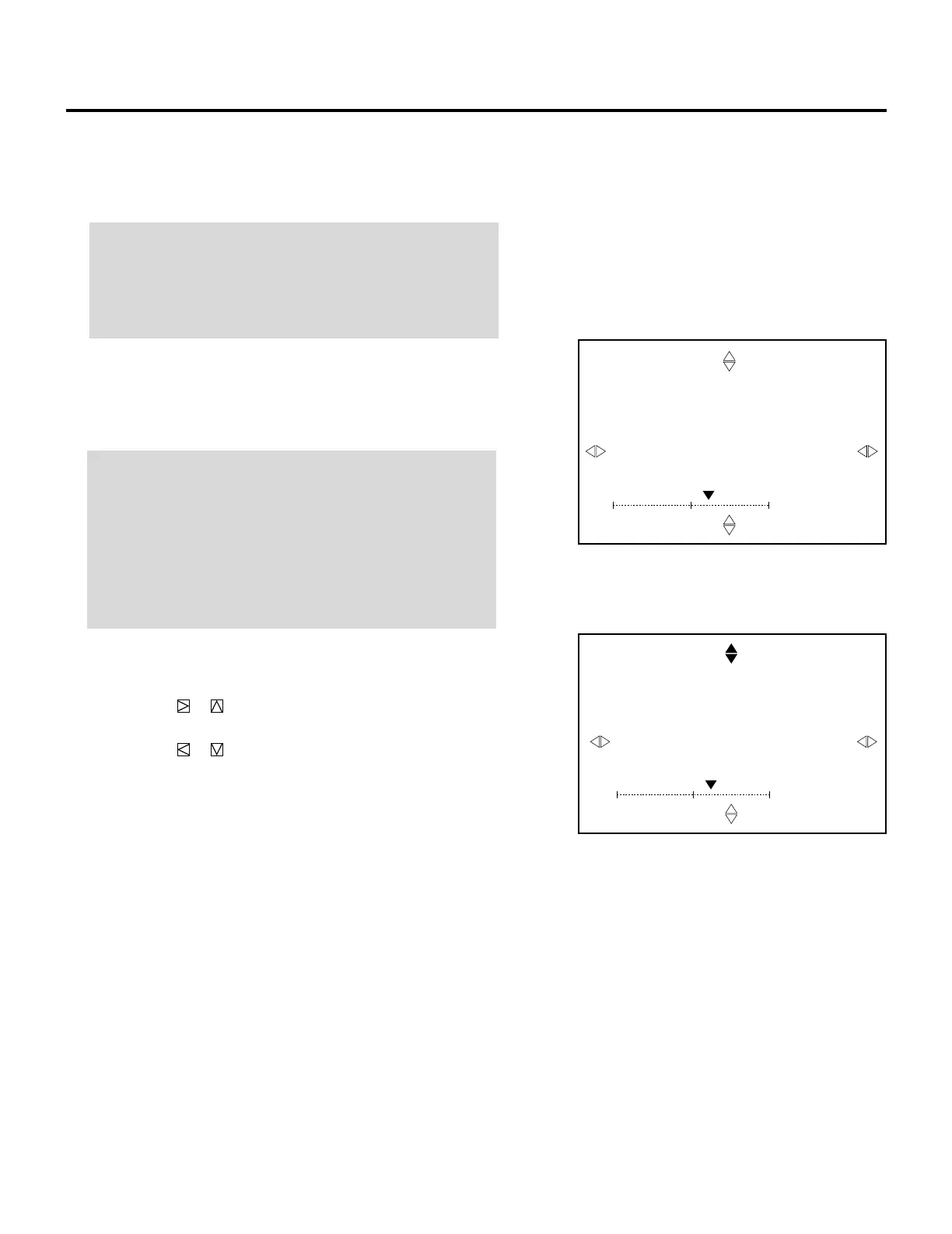

6 Use the CURSOR buttons to adjust the focus.
m When selecting “CENTER”
• Pressing the or button increases the control levels of the
center focus. (The gauge mark in the scale moves to the right.)
• Pressing the or button decreases the control levels of the
center focus. (The gauge mark in the scale moves to the left.)
To switch to the "EDGE ALL" or "EDGE SEPA." mode:
press and hold CTL, then press CURSOR button.
FOCUS
- CENTER -
CRT - R -
+10%
FOCUS
- EDGE ALL -
+10%
SCREEN -TOP-
To Next Page
