ISSUED: 04-11-06 SHEET #: 055-9458-2 05-09-06
Visit the NEC Web Site at www.necsam.com
7 of 9
For customer care call 1-800-729-0307 or 708-865-8870.

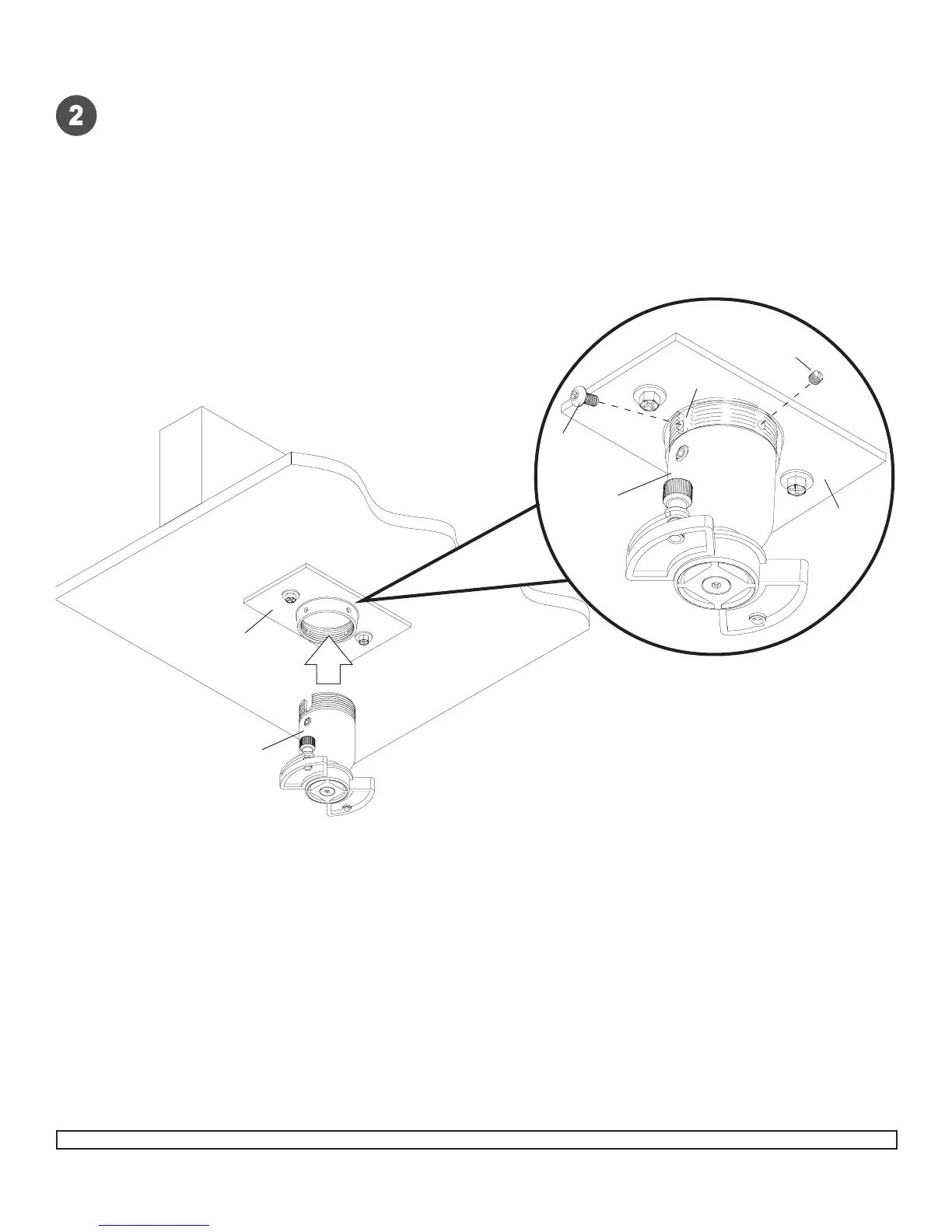

Screw ball and socket mount (A) into ceiling plate (G). Align the notch with one of the four holes of the ceiling plate
(G) and secure ball and socket mount (A) with a M5 x 10 mm socket pin screw (C) using security allen wrench (B)
as shown in detail 1.
Note: Slotted set screw (K) is used to jam against the threads of the ball and socket mount to prevent any excess
movement of the ball and socket mount (A). Do not overtighten screw; overtightening screw will damage threads
making it difficult to separate the products.
Skip to step 3.
Flush Mount Application
DETAIL 1
A
G
A
C
WOOD
CEILING
NOTCH
G
K
To Next Page
