d
c
c

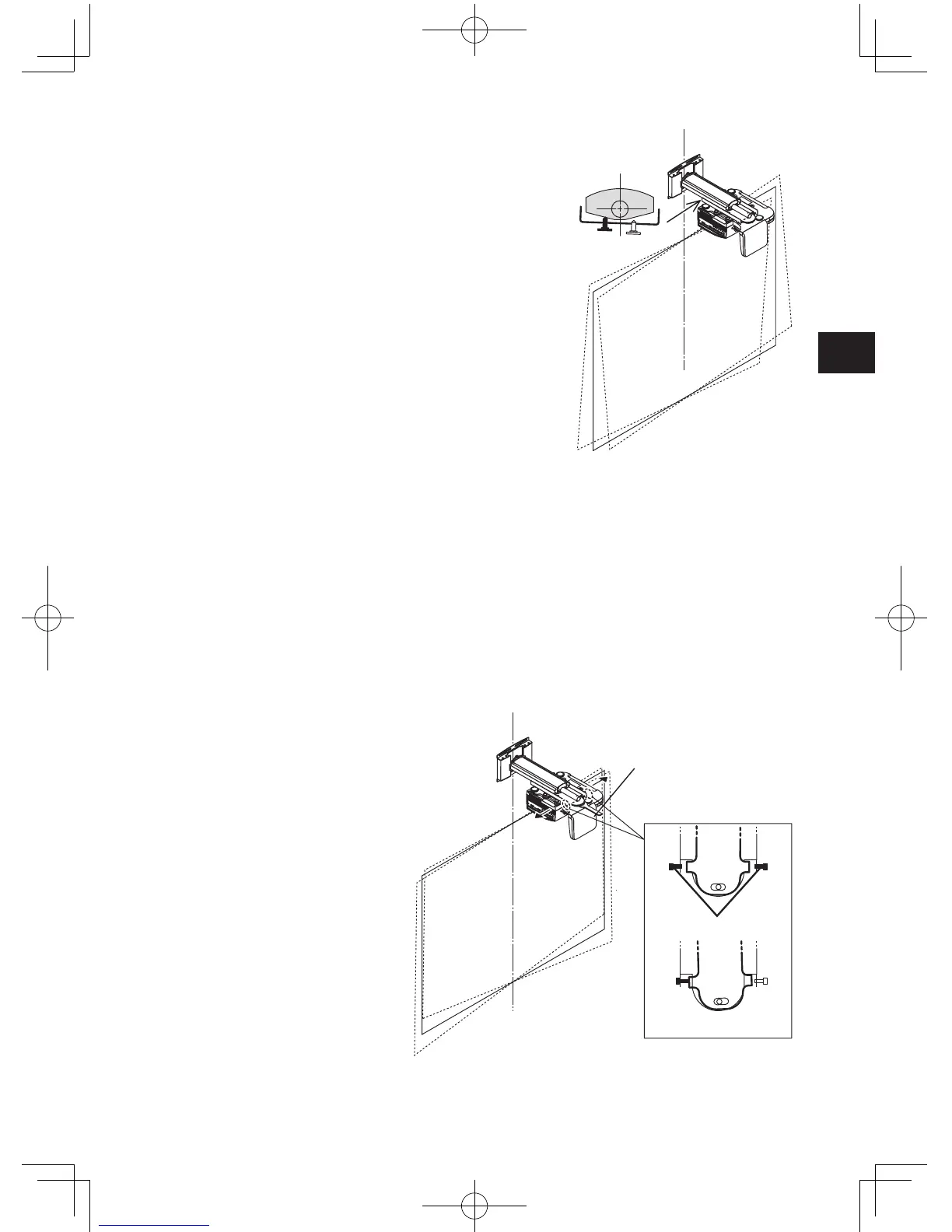

Turn the left or right knob to adjust projector tilt in the
left or right direction.
- When the knob shown in black in the illustration
is tightened, the projector is rotated in the
counterclockwise direction.
d
When the adjustment is complete, tighten the opposite
knob that is still loosened.
3. Adjust the horizontal tilt of the projector.
Theprojectoradapterallowsadjustmentoverarangeofapproximately±3degrees.
a
Loosen the horizontal fixation nut (double nut) with a wrench.
b
Loosen the horizontal adjust screws (left and right) with the supplied hex wrench.
- Loosen the two screws shown in black in the illustration.
c
Make the adjustment by tightening the left or right screw until the top edge and bottom edge
of the image are parallel.
d
When the adjustment is complete, tighten the opposite screw that is still loosened.
e
Tighten the horizontal fixation nut (double nut) with a wrench.
ae
d
b
c
