Cabinet Dimensions (continued)

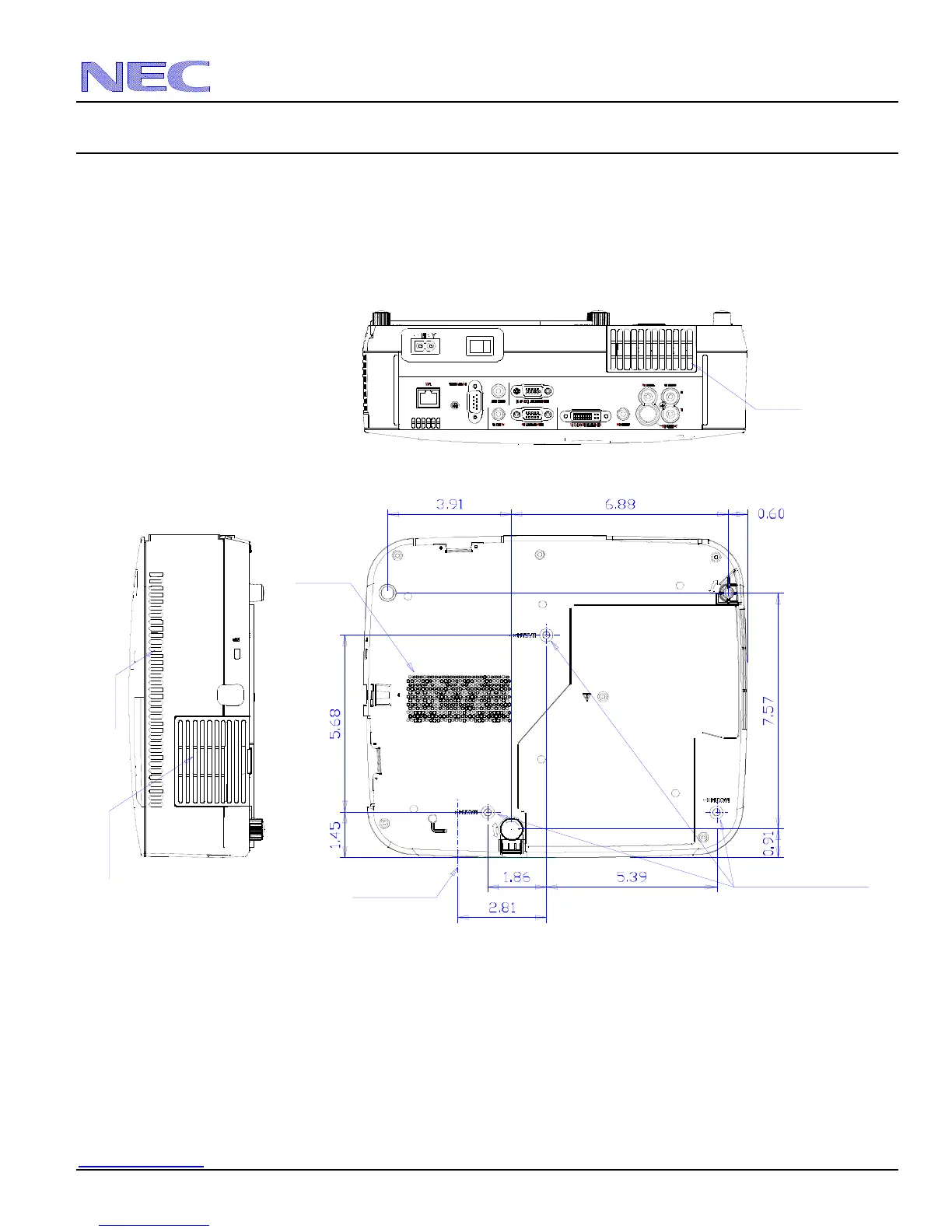

The following drawings show the cabinet dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.
I
n
t
a
k
e
Lens Center
3 - M4*8 Max
for Ceiling Mount Kit
Intake
E
x
h
a
u
s
t
Exhaust
