NEC NP4100W - Page 3

NEC Display Solutions of America, Inc.
NP4100W Installation Guide
Desktop and Ceiling Mount v 1.0
www.necdisplay.com NP4100W Page 3 of 10

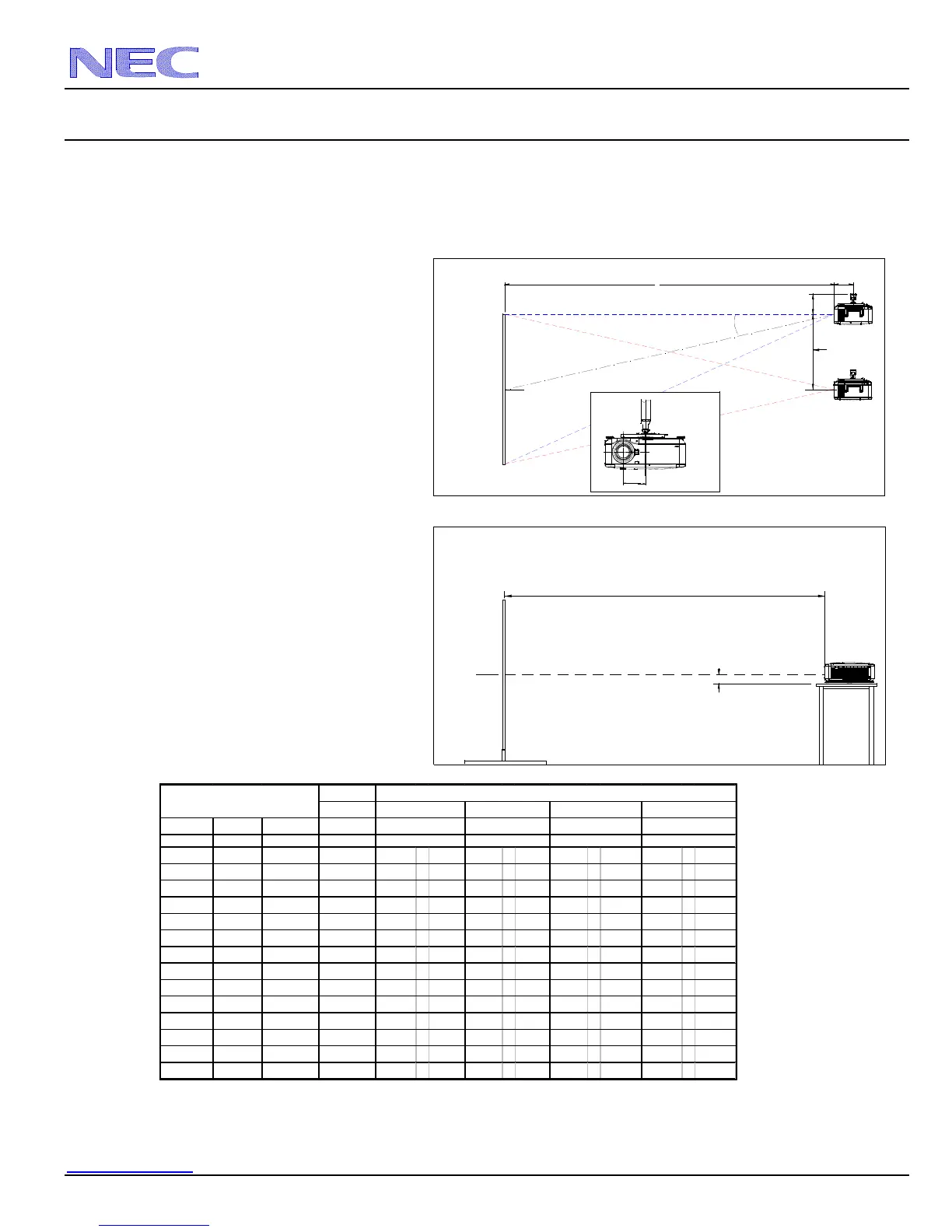

Projection Distance and Screen Size for Ceiling Mount
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.
Distances are in inches. For millimeters multiply by 25.4.
Note: To achieve a 16x9 image, you must select 16x9 for each incoming signal in the OSM.
MENU>IMAGE OPTIONS>ASPECT RATIO
Ceiling Mount Installation
Desktop Installation
Note:
Lens shift feature is not available with NP06FL
(rear lens) NP06FL should be used only for
“zero degree” / “no-offset” applications.
Distance Chart for popular 16:9 screens
Note:
For screen sizes not indicated on the projection tables, use the formulas on page 1.
Rear Lens
NP06FL
Diagonal Width(W) Height (H) 0.77:1
inches inches inches inches
92 80 45 64 108 - 147 145 - 192 182 - 367 361 - 683
100 87 49 70 118 - 159 158 - 209 198 - 399 393 - 743
106 92 52 74 125 - 169 167 - 222 210 - 423 416 - 786
110 96 54 77 130 - 176 175 - 231 219 - 441 434 - 821
119 104 58.8 83 141 - 191 189 - 251 238 - 478 471 - 889
123 107 60 86 146 - 197 195 - 258 245 - 492 485 - 915
133 116 65 93 158 - 213 212 - 280 266 - 534 526 - 993
135 118 66 95 161 - 217 215 - 285 271 - 543 535 - 1010
159 139 78 112 190 - 256 254 - 336 319 - 641 631 - 1190
161 140 79 113 191 - 258 256 - 338 322 - 645 636 - 1199
229 200 113 NA 274 - 369 366 - 485 461 - 924 911 - 1715
275 240 135 NA 329 - 443 440 - 582 555 - 1109 1094 - 2059
367 320 180 NA 439 - 591 588 - 777 741 - 1480 1460 - 2748
459 400 225 NA 550 - 740 735 - 972 927 - 1851 1827 - 3436
Screen Size (16:9)
Zoom Lenses
4.43 - 8.30:1
NP07ZL NP08ZL NP09ZL NP10ZL
2.22 - 4.43:11.33 - 1.79:1 1.78 - 2.35:1
i
nc
h
es
i
nc
h
es
i
nc
h
es
i
nc
h
es
C
Screen Ctr
Throw Distance
Screen Bottom
3.89"
C
Screen Ctr
Throw Distance
Screen Top
X
7.99"
"Projector Location
X=Distance from lens to mount ctr
NP06FL: X=7.56"
NP07ZL: X=7.56"
NP08ZL: X=7.56"
NP09ZL: X=7.91"
NP10ZL: X=7.56"
Lens Offset From
Mount Pipe
5.32"
Based on Lens Shift"
Lens Shift Range
