NEC NWTL656 - Installation

INSTALLATION

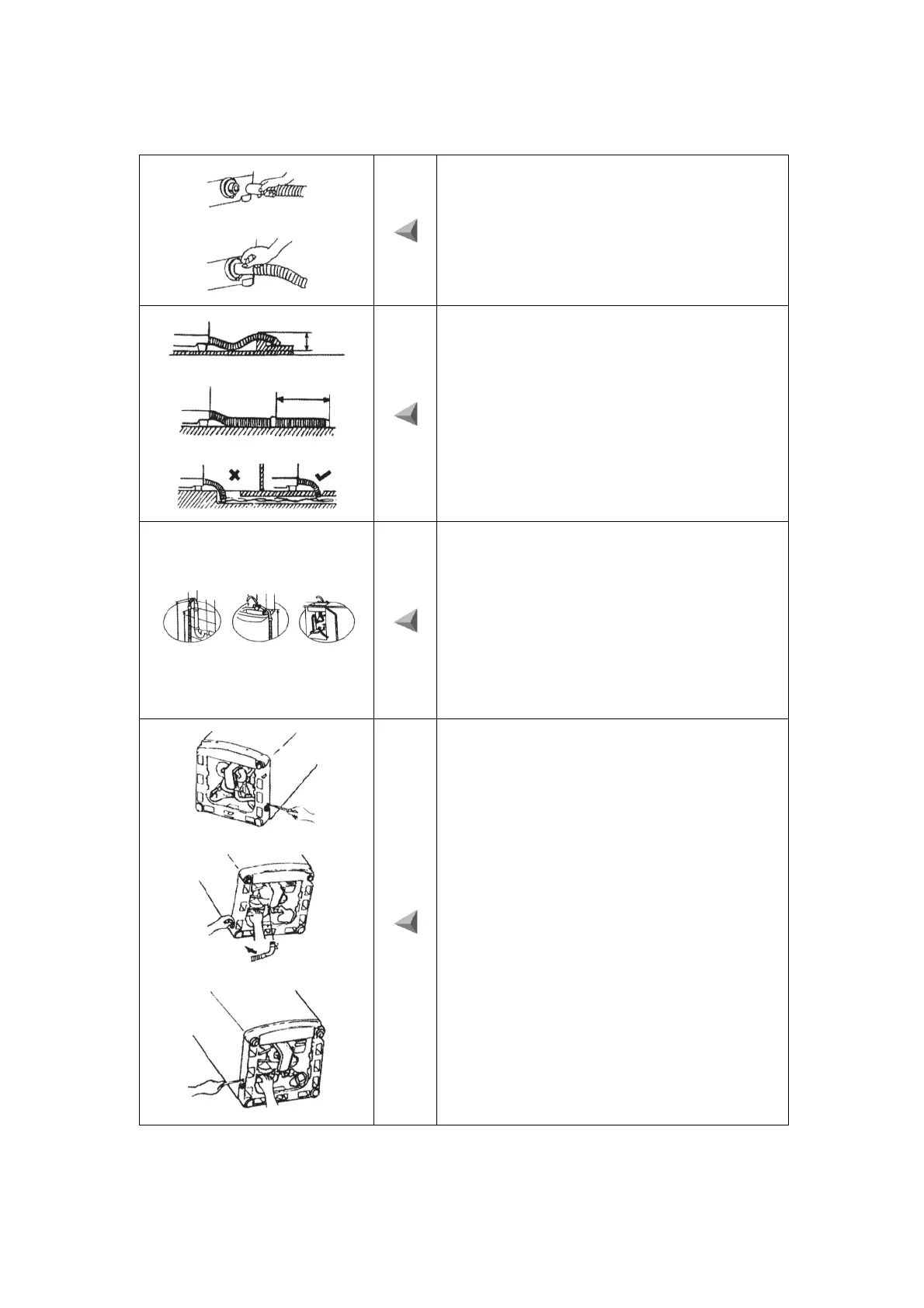

CONNECTION OF DRAIN HOSE
• Direct drain hose at the washer drain outlet
until it is completely encased by the outlet.
• Check if the connection is secured.
DOWNWARD DRAIN WASHER (FOR NON
PUMP MODELS)
• The height should not exceed 8cm.
• For an extension hose, please use a pipe of
over 3cm inner diameter and less than 1.5m
in length.
• Do not place the drain hose nozzle in water.
UPWARD DRAIN WASHER
• To prevent water from flowing backwards, the
drain pipe should be 60-90cm above ground.
• Place the end of drain pipe in washing tub and
fasten the pipe so that it might not come loose
under water pressure or with interference by
children at play.
• Use the U-shaped drainage system beneath
washing tub. Drain pipe must be 60-90cm above
ground.
ADJUSTMENT OF DRIANAGE DIRECTION
• Remove the fixing screw of the drain hose
nozzle and push the nozzle in.
• When lying the washer down, be sure not to
damage the power supply cable and the
coupling.
• Extricate the inner drain hose from the drain
hose clip at the back.
• Push down the tightly closed cap over the fixed
nozzle opposite
and place it on the side which has been left
empty.
• Turn the drain hose nozzle to the fixed nozzle
opposite.
• Fix the drain hose nozzle with a screw.
• Insert the drain hose into the fixed hose clip.
ATTENTION
Do not worry when you open the washer to find
water accumulated in it. This has come from the
test which each washer has to go through before
leaving the factory.
NOTE: The instructions for appliances connected to the water mains shall state
• the maximum inlet water pressure, in pascals
• the minimum inlet water pressure, in pascals, if this is necessary for the correct operation of the appliance, the instructions
for appliances connected to the water mains by detachable hose sets shall state that the new hose-sets supplied with the
appliance are to be used and that old hose sets should be used.
Less than
8cm
1.5m
90cm
60cm
