NEC Display Solutions of America, Inc.
PA653UL & PA803UL Installation Guide
Desktop and Ceiling Mount Rev 1.3
www.necdisplay.com PA653UL/PA803UL Page 7 of 11

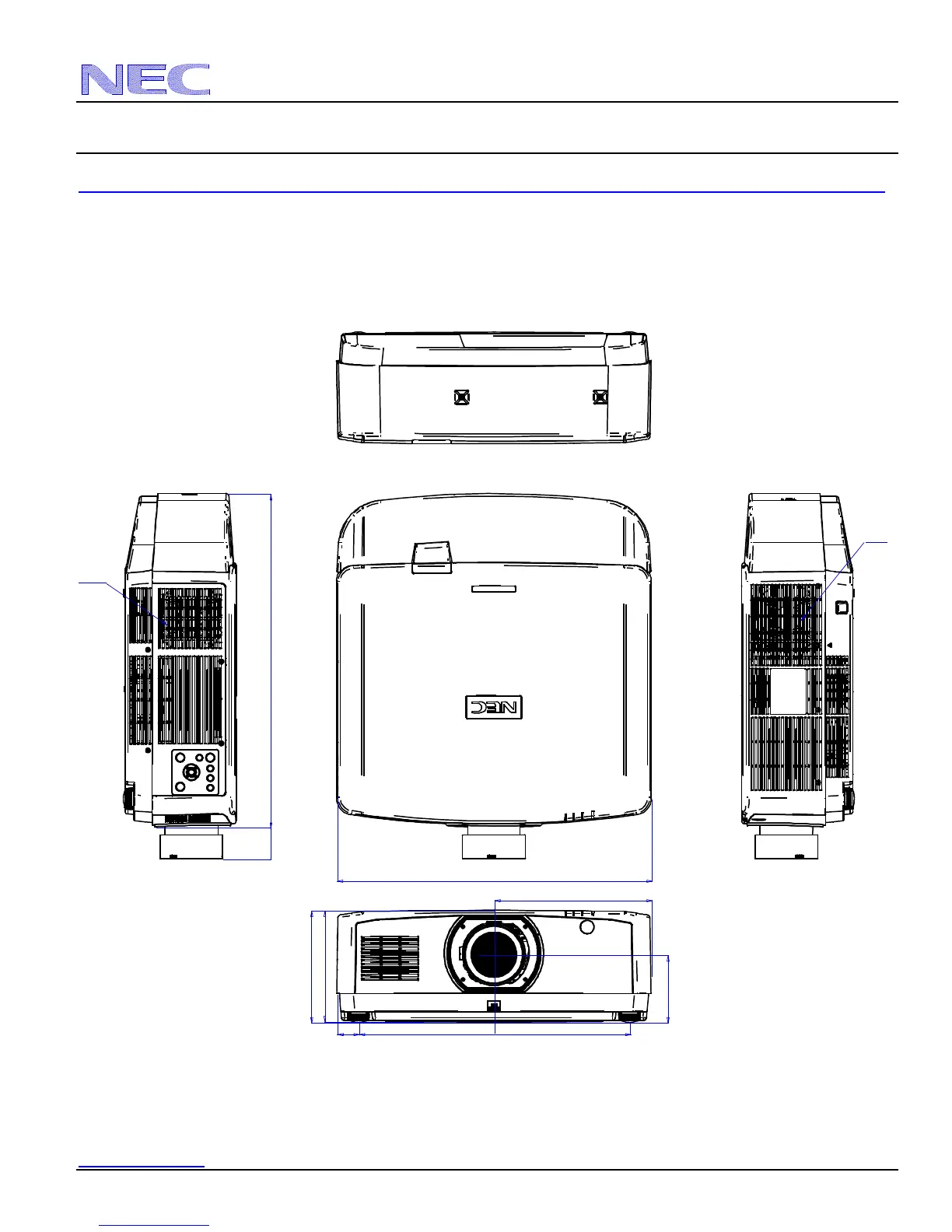

Cabinet Dimensions with Cable Cover
The following diagrams show the cabinet dimensions for the PA653UL/PA803UL.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown with the NP41ZL lens
22.83
8.09
8.18
4.93
62\U+FF5E56.5 24.41
Intake
Exhaust
1.57 19.71
NP41ZL
11.41
