NEC PA803UL - Desktop Installation

NEC Display Solutions of America, Inc.
PA653UL & PA803UL Installation Guide
Desktop and Ceiling Mount Rev 1.3
www.necdisplay.com PA653UL/PA803UL Page 3 of 11

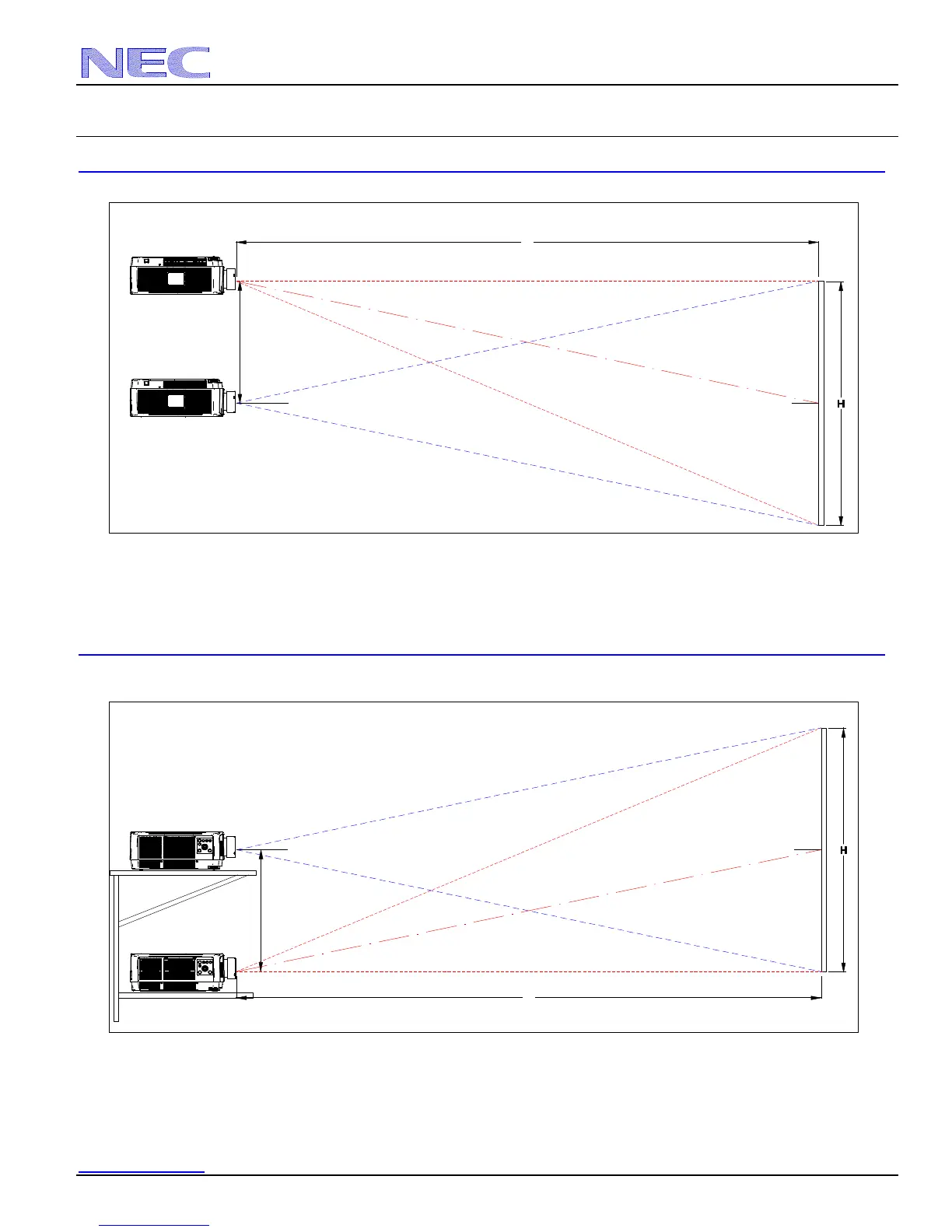

Ceiling Mount Installation
Desktop Installation
Screen Center
Screen Top
Shift Range
C
Screen Center
Shift Range
Screen Bottom
C
ONLY FOR NP40ZL, NP41ZL and NP43ZL LENSES
