Fuse
A 300 A (slow-blow) fuse must be installed in the ‘+’
cable to ensure safe installation and use of a battery.
In the event of a short circuit on the PowerRouter side,
the fuse will interrupt the very high short-circuit current
and prevent a dangerous situation. The fuse, including
holder, is supplied by Nedap. The matching fuse holder
is manufactured by Pudenz and its part number is
177.5701.00.
Warning: Make sure the battery terminals are covered with insulating caps during installation. This prevents the
possibility of a dangerous short circuit if a conductive object falls across the terminals.

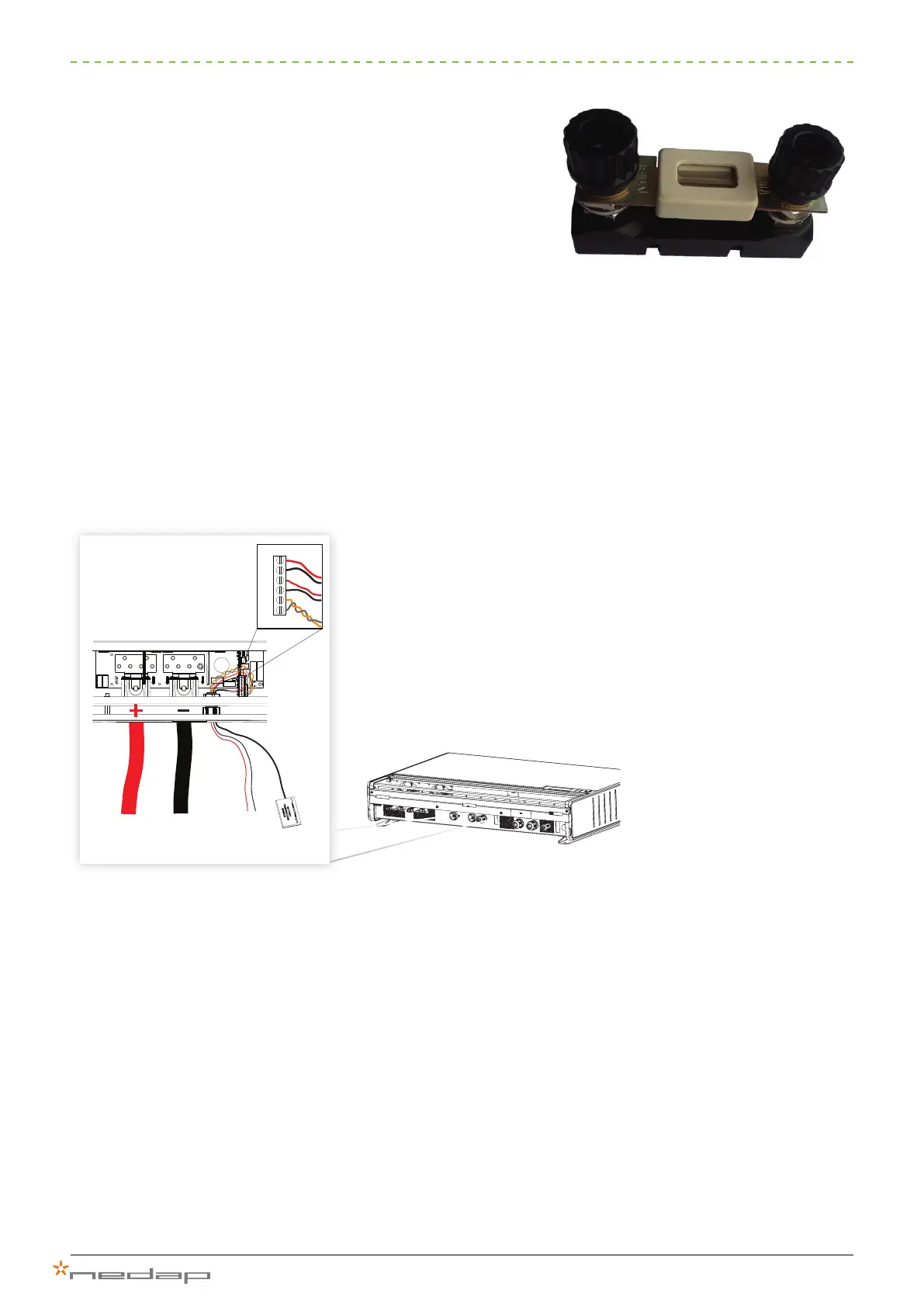

Connecting the battery measuring devices to the PowerRouter
The current shunt, voltage sense and temperature sensor are connected to the PowerRouter via the connecting
rail provided for this purpose (see gure 30).
Figure 30: Connecting the battery measuring devices to the PowerRouter
Temperature
sensor
+Red
- Black
Battery sense
+BAT
-BAT
TMPS
GND
SH+
SH-
(-) pole PowerRouter
SH+ wire
(orange)
SH- wire
(grey)
(+) pole battery
Figure 29: Fuse with holder
