Step 1. Assembly
Important considerations
> The ingress protection rating of the PowerRouter is IP20 (protected against objects >12.5 mm; not protected
against water)
> The PowerRouter must be installed in a well-ventilated room in which the temperature is maintained between
-10 and 40 °C.
> Maintain a gap of 30 cm above and below the PowerRouter to allow sufcient ventilation.
> Maintain a gap of 80 cm above and below the PowerRouter when two systems are mounted one above the
other.
First attach the supplied mounting bracket to the wall. A drill template is provided to help you determine where
the holes are to be drilled for the mounting bracket. Use mounting hardware suitable for the wall to which the
PowerRouter is being attached.
Attach the PowerRouter to the bracket, as shown below.

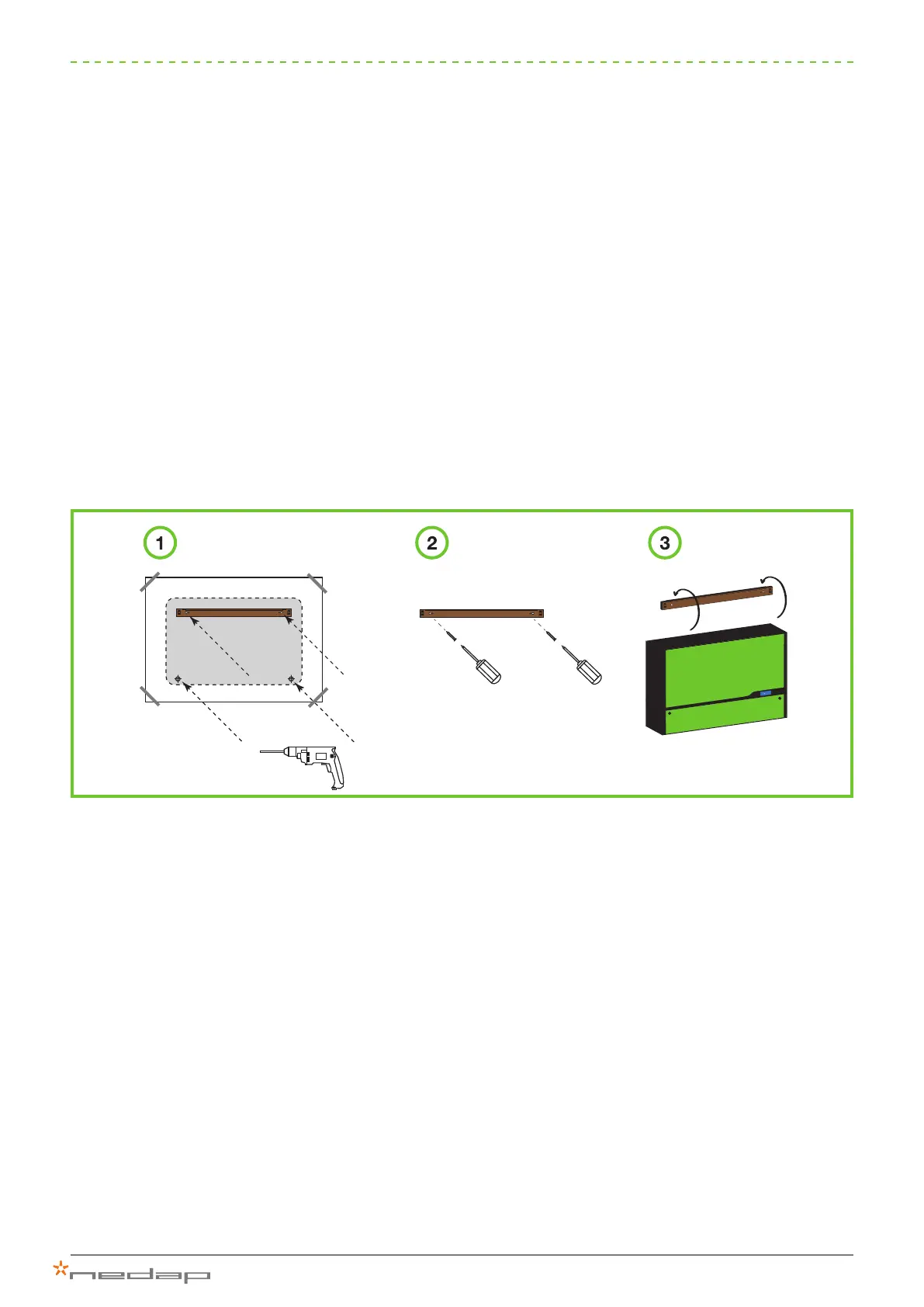

Figure 2: Attaching the PowerRouter to the mounting bracket
4 x
2 x
Drill template the PowerRouter
