mEsstronic 1.0 Operating Instructions 12
1
2
3
4
1 Description EN
The mEsstronic is an instrument for measuring lengths that consists of several telescopic
elements. The respective extension length is determined electronically and shown to the ex-
act millimetre in the display. Measurements are easily taken and are carried out by extending
the telescopic elements within the relevant area to be measured.
This symbol indicates special features of the standard mEsstronic
model (Ref.-No. 583111, 585111, 588111, 584111).
This symbol indicates special features of the mEsstronic Easy
(Ref.-No. 583121, 585121).
2 Models
The mEsstronic models are equipped with different stops depending on their fields of appli-
cation and are operated via different keypads.
2.1 Stops
Standard mEsstronic
mEsstronic for measuring roller shutters

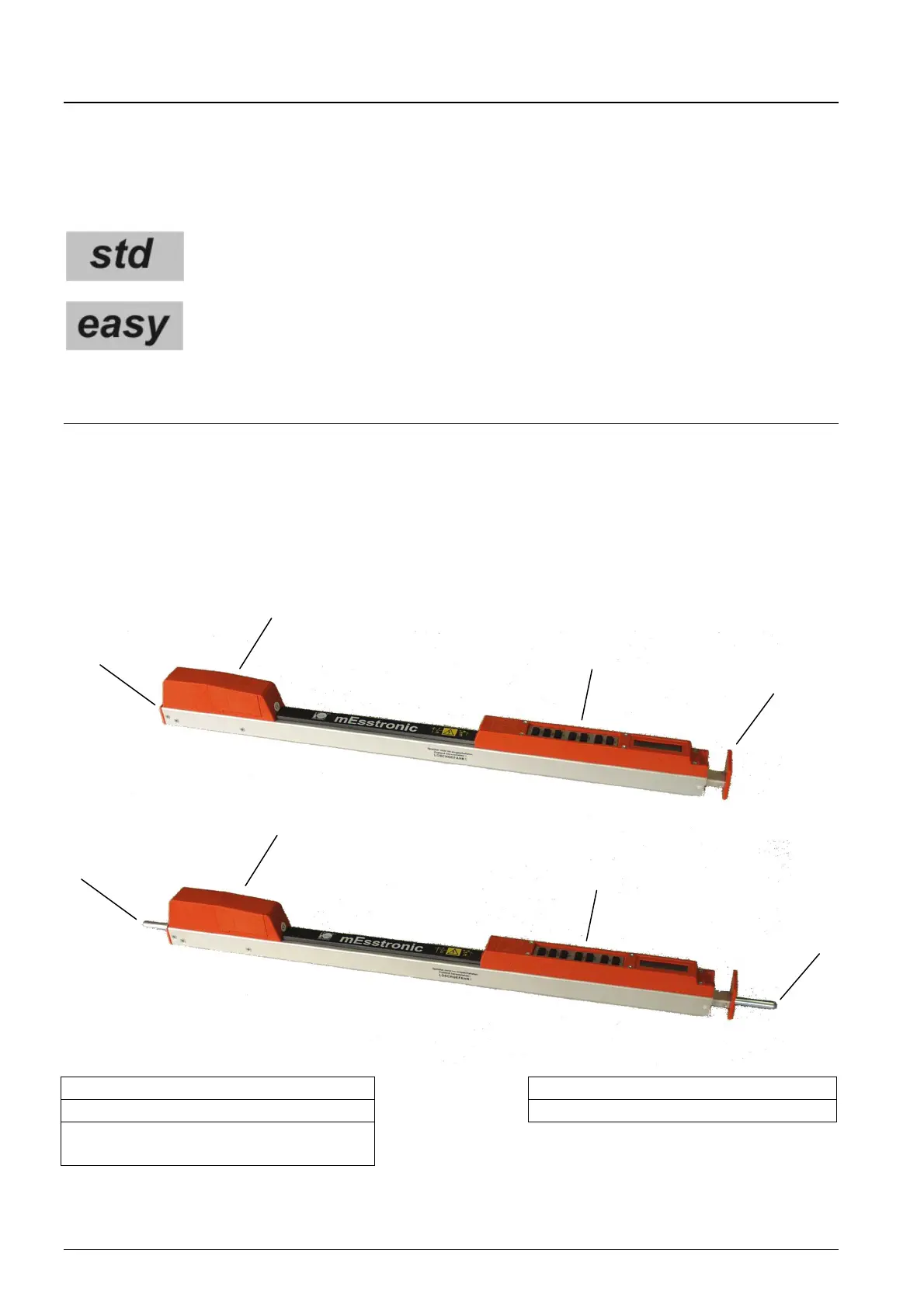

1 – Front stop 4 – Back stop
2 – Display housing 5 – Measuring spike
3 – Rewind mechanism housing with
battery compartment
5
2
3
5
