NEEWER Q4 - Installation Instructions

03
Insert the three copper pins of the
flash tube into the three pin holes of
the flash body and push them inward
until they are secure.
Push the reflector into the tab
holes and then rotate the
reflector clockwise to
secure it.
When installing the reflector,
please note that the red dot on the
reflector should be aligned with
the blue dot on the bayonet, and
then slotted into the
connecting piece.
Press the reflector removal button
and then rotate the reflector
counterclockwise and pull it
outward.
※Exercise caution to prevent burns
when removing it.
※The device should not be powered
on when installing/removing the
flash tube.

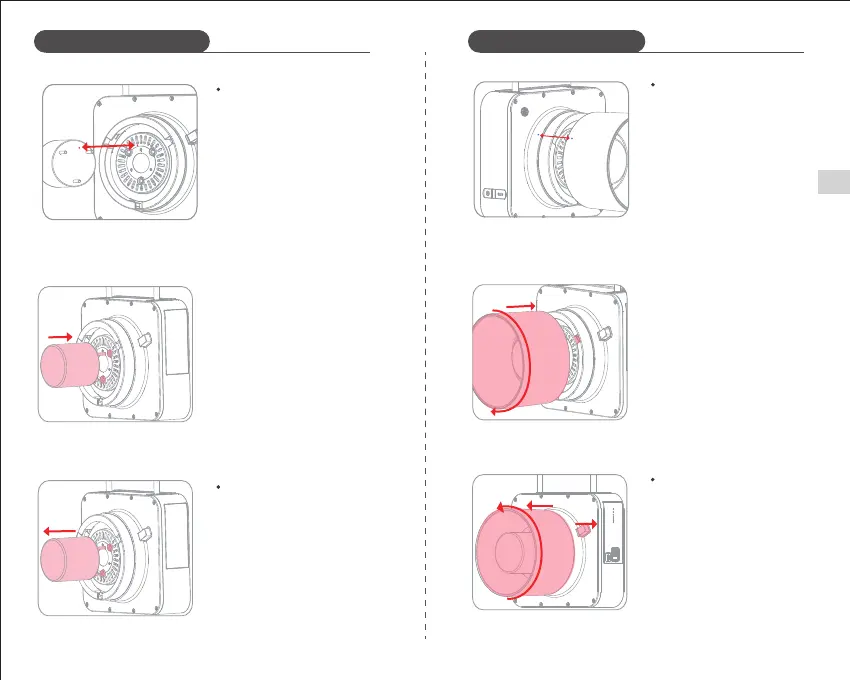

Installing the Flash Tube
When installing the flash tube, please
note that the red dot on the inner part
of the flash tube should be aligned
with the red dot on the bayonet, and
then insert the pins into the pin holes
to secure the flash tube.
Simply pull the lamp outwards in the
direction shown..
※When removing the lamp, be mindful
that the bulb could still be hot.
Removing the Flash Tube
Installing the Reflector
Removing the Reflector
Installation Instructions
Installation Instructions
EN
