en Installation instructions
52
6.

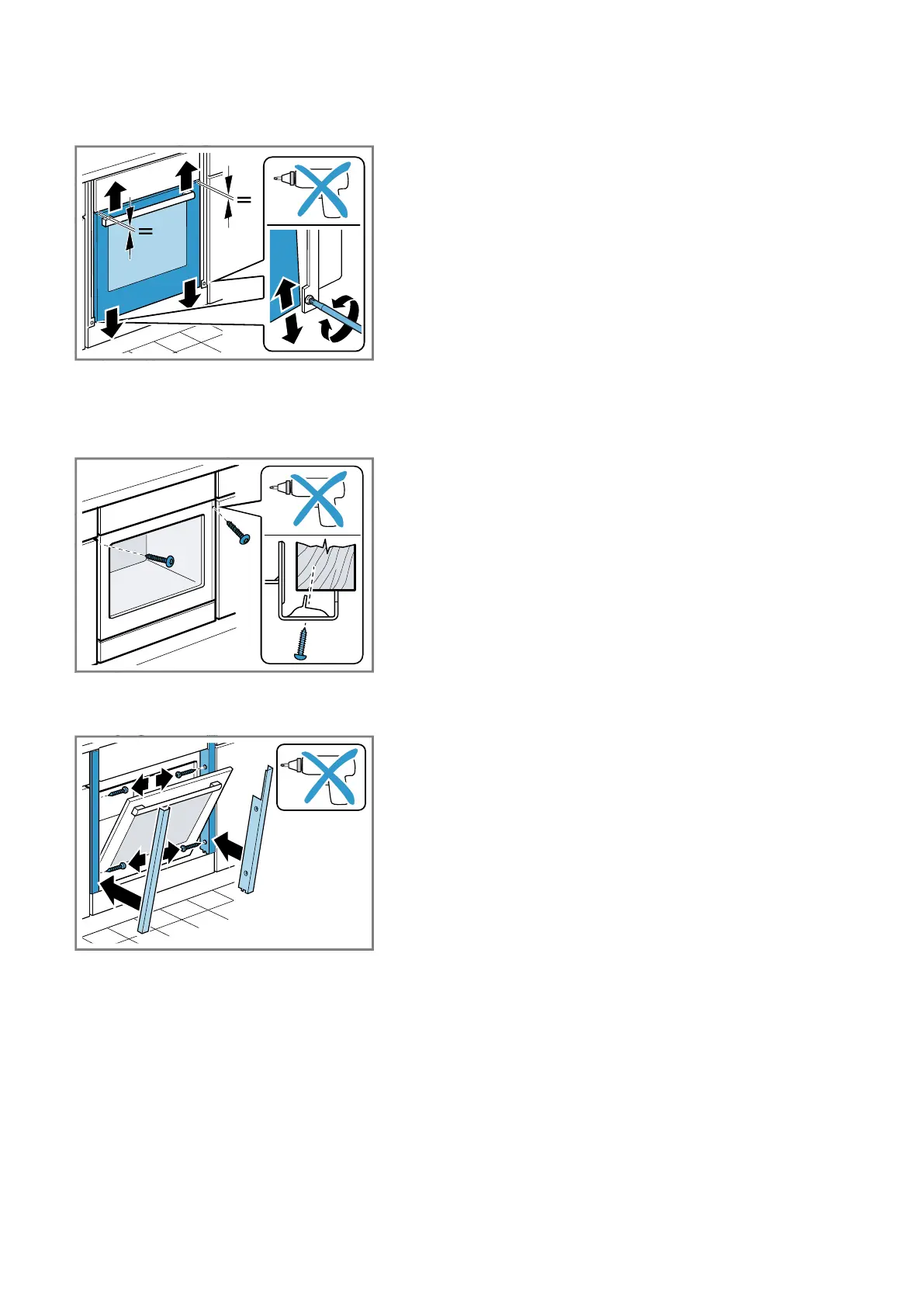

If required, you can adjust the height of the appli-
ance door using the adjustment screws on the left
and right.
Turning the screws clockwise makes the gap smal-
ler
Turning the screws anti-clockwise makes the gap
larger
7.
Screw the appliance into place.
8.
Open the appliance door slightly, then refit the pan-
els and screw them in place, first at the top and
then at the bottom.
Note:The gap between the worktop and the appliance
must not be closed by additional battens.
Thermal insulation strips must not be fitted to the side
panels of the surround unit.
26.9 Removing the appliance
1.
Disconnect the appliance from the power supply.
2.
Open the appliance door slightly and unscrew the
left and right-hand panels.
3.
Undo the fastening screws.
4.
Lift the appliance slightly and pull it out completely.
