Installation

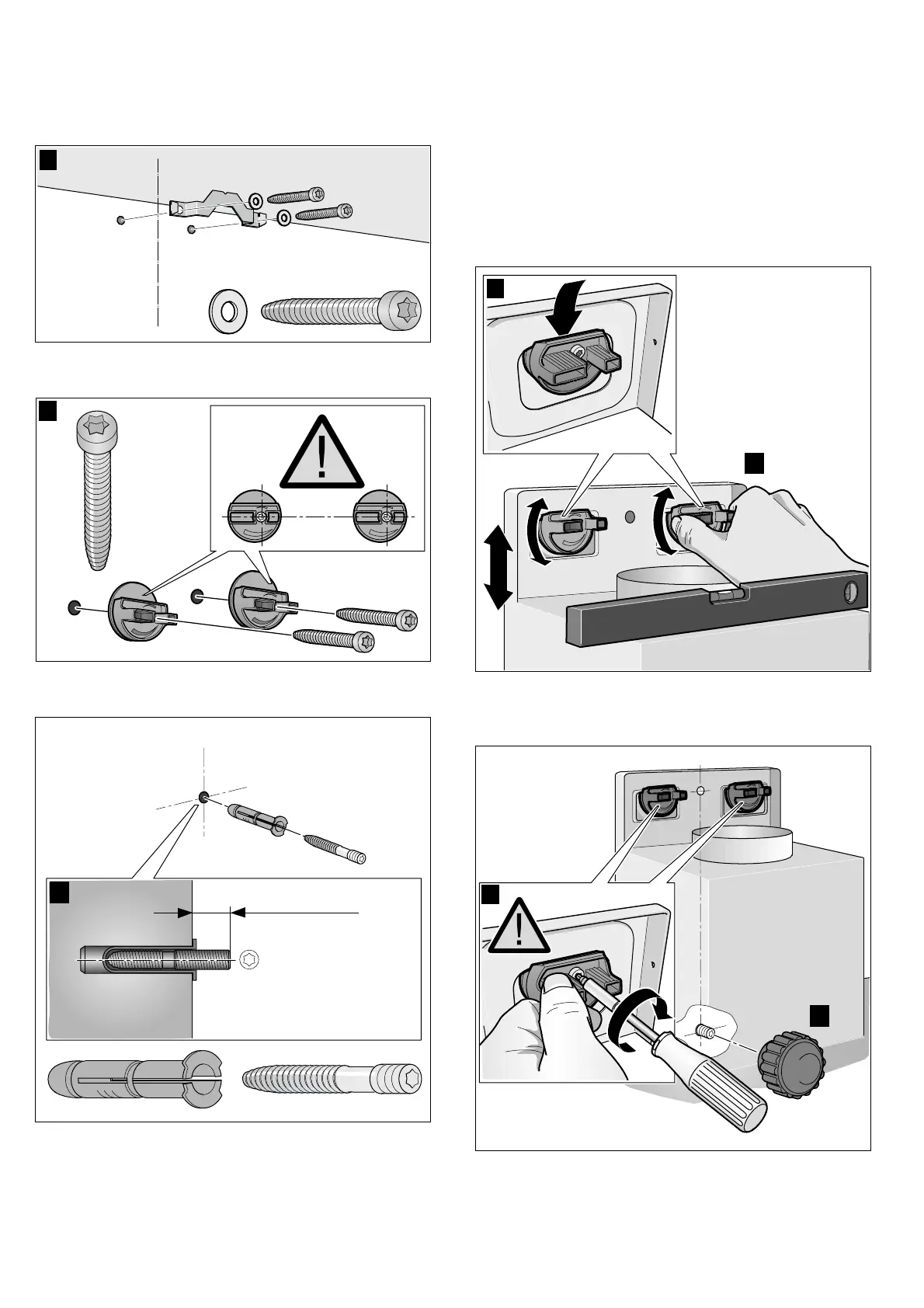

1. Screw on the fixing bracket for the flue duct. ¨
2. Screw on brackets for the extractor hood hand-tight.
Do not firmly tighten the screws. ©
3. Screw in the threaded bolt, leaving it protruding out
of the wall by 5–9 mm. ª
Attaching and aligning the appliance
1. First, remove the protective foil from the back of the
appliance and, following installation, remove the foil
completely.
2. When attaching the appliance, ensure that it
engages firmly with the brackets. «
3. Align the appliance horizontally by turning the
brackets. If required, the appliance can be moved to
the right or left. ¬
4. Firmly tighten the screws for the brackets. When
doing so, hold the brackets securely in place. ®
5. Firmly tighten the knurled nuts. ¯
[
$
[
%
