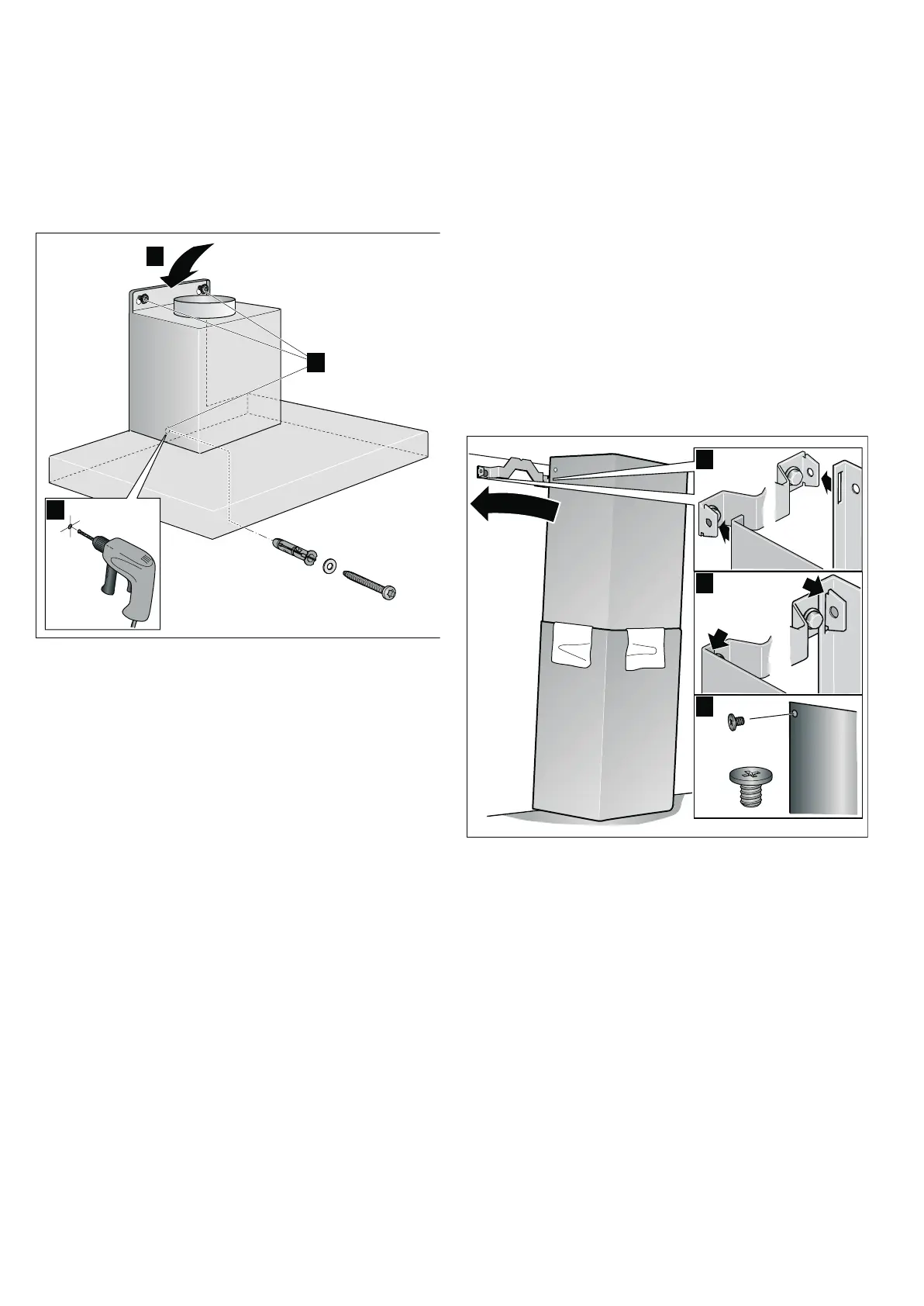

Finishing installation of the appliance
1. Drill an 8 mm Ø hole to a depth of 80 mm for the safety
screw and press the wall plug flush into the wall.
¨
2. Initially remove the protective foil from the back of the
appliance and, following installation, remove the foil
completely.
3. Attach the appliance. ©
4. Screw in the safety screw - and washer - and tighten all the
screws.
ª
Connecting the appliance to the power supply
Connecting the air extractor
Note: If using an aluminium pipe, smooth the connection area
beforehand.
1. Attach the air extractor pipe directly to the air-pipe connector.
2. Connect to air extractor opening.
3. Seal the joints appropriately.
Connect the power supply
1. Plug the mains plug into the earthed socket.
2. If a fixed connection is required, please follow the instructions
in the Electrical Connection section.
Attaching the flue duct
: Risk of injury!
Components inside the appliance may have sharp edges. Wear
protective gloves.
1. Separate the flue ducts.
To do this, remove the adhesive tape
2. Remove the protective foil from both flue ducts.
3. Push one flue duct into the other.
Notes
■ To prevent scratches, lay paper over the edges of the outer
flue duct to protect the surface.
– Slots of the inner flue duct point downwards.
4. Place the flue ducts on the appliance.
5. Push the inner flue duct upwards and attach it to the fixing
brackets on the left and right.
¨
6. Press the flue duct downwards until it engages. ©
7. Screw the flue duct to the sides of the fixing bracket using
two screws.
ª
