en Cleaning and maintenance
36
Filters
The filters 1Z keep large foreign
objects in the rinsing water away from
the pump. hese foreign objects may
occasionally block the filters.
The filter system consists of
■ a coarse filter
■ a flat fine filter
■ a microfilter
1. After each washing cycle check
the filters for residue.

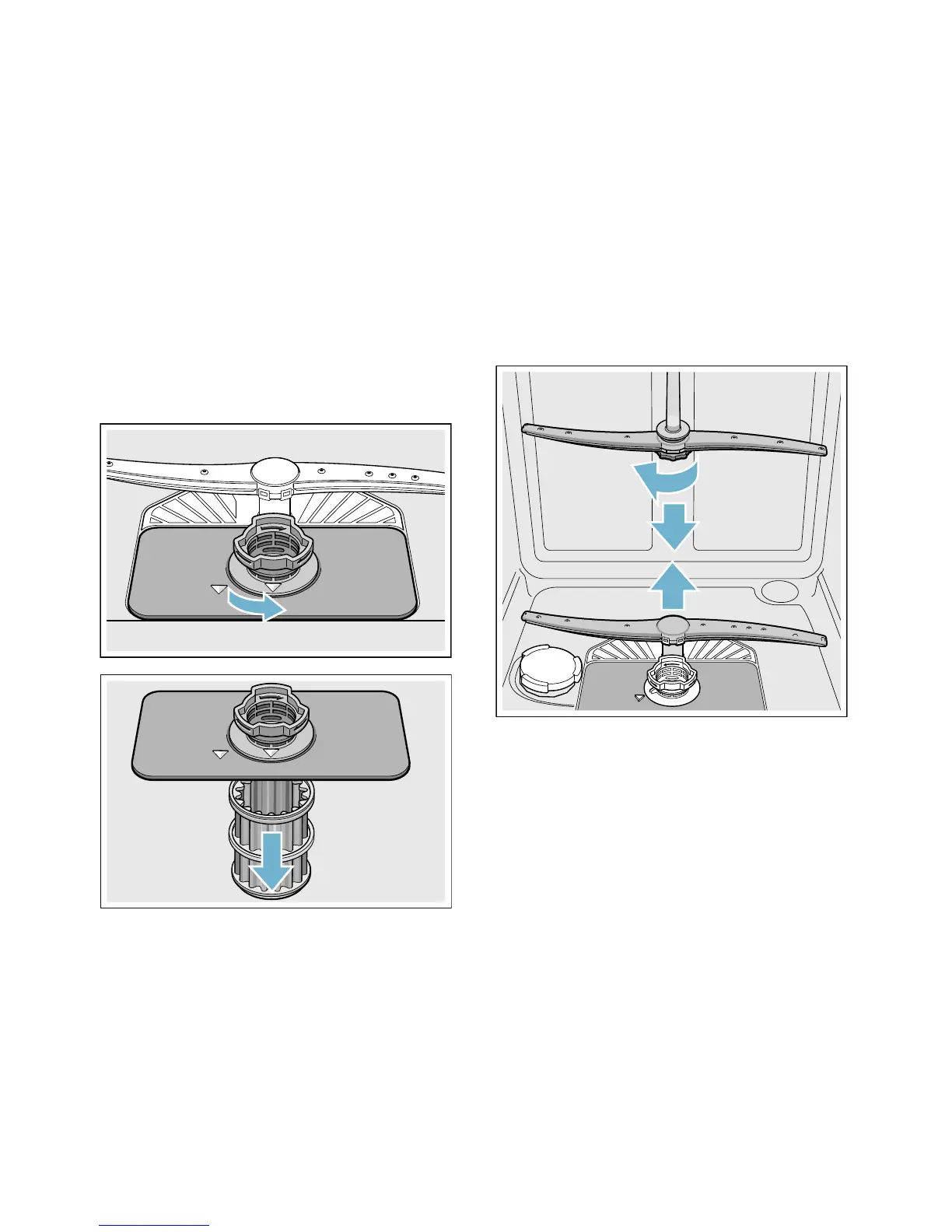

2. Unscrew filter cylinder as illustrated
and take out filter system.
3. Remove any residue and clean
filters under running water.
4. Re-install filter system in reverse
sequence and ensure that the arrow
marks are opposite each other after
closing the filter system.
Spray arms
Limescale and contaminants in the
rinsing water may block nozzles and
bearings on the spray arms 1: and
1J.
1. Check outlet nozzles on the spray
arms for blockages.
2. Unscrew the upper spray arm 1:
(1) and remove downwards (2).
3. Remove the lower spray arm 1J
upwards.
4. Clean spray arms under running
water.
5. Re-engage or screw on spray arms.
